Products  >  Network Access  >  Ethernet Extenders  >  High-Speed/Short-Range  >  CopperLink 1212

Ethernet Extender

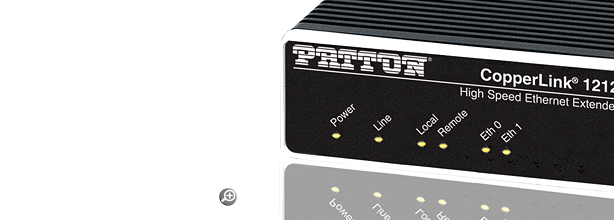

CopperLink CL1212 Dual-Port Ultra-High-Speed Copper Ethernet Extender

Achieving symmetrical line rates greater than 168 Mbps over a single twisted-pair or Cat 5e/6/7 cable, Patton’s dual-port CopperLink™ CL1212 Ethernet Extender is the fastest CopperLink™ device ever.

Contact Us
Sales: sales@patton.com
Direct: +1 301 975 1000
Support: support@patton.com
Direct: +1 301 975 1007
Have Us Contact You
or
Login
 Connect with us
Twitter Linkedin Facebook Youtube

View All

Features

Overview

Applications

Specs

Ordering

Services



Features
--Image: Made in USA --
  • Ethernet Extension—Extend 10/100Base-TX Ethernet well beyond its 328-foot (100-meter) limitation over a single unshielded twisted pair (UTP) or Cat 5e/6/7 cable.
  • Operates Over Twisted Pair—Realize fiber-optic speeds without the expense—and hassle—of installing new cables or line-of-site wireless circuits.
  • Plug and Play—Set these units up straight out of the box. No configuration is required. Dual auto-sensing 10/100 Ethernet ports support full or half duplex operation.
  • Multiple Line Rates Supported—Switch-selectable rate mode options optimize rate and reach for the noise environment, wire gauge/type and length.
  • Transparent LAN Bridging—Bypass network configuration requirements by transparently passing all higher layer protocols—including 802.1Q VLAN frames (tagged and untagged).
  • Made in the USA — This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Patton's American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.
Overview
Combining data flows from up to 2 network-enabled devices onto a single twisted pair or coax cable, the CopperLink Model CL1212 can deliver IP traffic up to 1.8 miles (3 km) away—well beyond the standard 328-foot (100-meter) Ethernet distance limitation.

With achievable line rates up to 168 Mbps, the CL1212 eliminates the bandwidth constraints commonly experienced with other copper-based transmission technologies. The Model 1212 is engineered to re-use existing infrastructure previously employed in such legacy applications as alarm circuits, E1/T1 circuits, RS-232, RS-422, RS-485, CCTV and CATV. Many newer cabling standards are also supported, including Cat 5e, Cat 6 and Cat 7.

A built-in two-port Ethernet switch makes the CopperLink CL1212 ideal for delivering multiple IP information streams over a single cable. At a guardhouse or security kiosk for example, you could aggregate IP data from a laptop and a high-resolution IP video camera for simultaneous transmission over a single Ethernet connection.

A single-port version, the CopperLink Model CL1211 (available by special order) is ideal for applications requiring the enhanced security of a single Ethernet port.



Applications
Typical Application: Extending Ethernet over Cat 5+ or UTP

CopperLink™ 1212 application diagram


Ordering
# Model # Description Availability
1 CL1211/EUI High Speed CopperLink Ethernet Extender; 1 x 10/100BaseTX; RJ45 Line, 100-240VAC General Availability

 Accessories
2 CL1211/EUI-2PK High Speed CopperLink Ethernet Extender Kit (Local and Remote); 1 x 10/100BaseTX; RJ45 Line, 100-240VAC General Availability

 Accessories
3 CL1211/TB/EUI High Speed CopperLink Ethernet Extender; 1 x 10/100BaseTX; Terminal Block Line, 100-240VAC General Availability

 Accessories
4 CL1212/EUI High Speed CopperLink Ethernet Extender; 2 x 10/100BaseTX; RJ45 Line, 100-240VAC General Availability

 Accessories
5 CL1212/EUI-2PK High Speed CopperLink Ethernet Extender Kit (Local and Remote); 2 x 10/100BaseTX; RJ45 Line, 100-240VAC General Availability

 Accessories
6 CL1212/TB/EUI High Speed CopperLink Ethernet Extender; 2 x 10/100BaseTX; Terminal Block Line, 100-240VAC General Availability

 Accessories
7 CL1212/TB/EUI-2PK High Speed CopperLink Ethernet Extender Kit (Local and Remote); 2 x 10/100BaseTX; Terminal Block Line, 100-240VAC General Availability

 Accessories
