Ethernet Extender

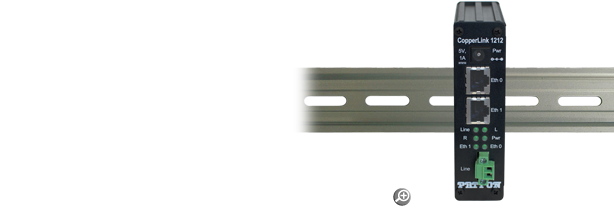

CopperLink CL1212E Dual-Port Light Industrial Ultra-High-Speed Copper Ethernet Extender

Achieving symmetrical line rates greater than 168 Mbps over a single twisted-pair or Cat 5e/6/7 cable, Patton’s CopperLink™ 1212E Ethernet Extender is the fastest CopperLink™ ever.

Contact Us
Sales: sales@patton.com
Direct: +1 301 975 1000
Support: support@patton.com
Direct: +1 301 975 1007
Have Us Contact You
or
Login
 Connect with us
Twitter Linkedin Facebook Youtube

View All

Features

Overview

Applications

Specs

Ordering

Services



Features
--Image: Made in USA --
  • Ethernet Extension—Extend 10/100Base-TX Ethernet well beyond its 328-foot (100-meter) limitation over a single unshielded twisted pair (UTP), Cat 5e/6/7 cable.
  • Operates Over Twisted Pair—Realize fiber-optic speeds without the expense—and hassle—of installing new cables or line-of-sight wireless circuits.
  • Plug and Play—Set these units up straight out of the box. No configuration is required. Auto-sensing 10/100 Ethernet ports support full or half duplex operation.
  • Multiple Line Rates Supported—Switch-selectable rate mode options optimize rate and reach for the noise environment, wire gauge/type and length.
  • Transparent LAN Bridging—Bypass network configuration requirements by transparently passing all higher layer protocols—including 802.1Q VLAN frames (tagged and untagged).
  • Made in the USA — This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Patton's American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.
Overview
Combining data flows from up to four network-enabled devices onto a single twisted pair or coax cable, the Model 1212E can deliver IP traffic up to 1.8 miles (3 km) away—well beyond the standard 328-foot (100-meter) Ethernet distance limitation.

With achievable line rates up to 168 Mbps, the CopperLink 1212E eliminates the bandwidth constraints commonly experienced with other copper-based transmission technologies. The Model 1212E is engineered to re-use existing infrastructure previously employed in legacy applications including alarm circuits, E1/T1 circuits, RS-232, RS-422, RS-485, CCTV and CATV. Many newer cabling standards are also supported, including Cat 5e, Cat 6 and Cat 7.

A built-in 2-port Ethernet switch makes the CopperLink Model 1212E ideal for delivering simultaneous connectivity to more than one IP enabled device such as a laptop, a motion sensor, or even a few high resolution IP video cameras—all over a single twisted-pair!

A single-port version, the CopperLink Model CL1211E (available by special order) is ideal for applications requiring the enhanced security of a single Ethernet port.

Applications
Typical Application: Extending Ethernet over Cat 5+ or UTP

CopperLink™ 1212E application diagram


Ordering
# Model # Description Availability
1 CL1211E/EUI-2PK Extended Temperature CopperLink High Speed Auto Rate Extender Kit (Local and Remote); 1 x 10/100BaseTX; RJ45 Line Connector; 100-240VAC General Availability

 Accessories
2 CL1211E/TB/EUI-2PK Extended Temperature CopperLink High Speed Auto Rate Extender Kit (Local and Remote); 1 x 10/100BaseTX; Terminal Block Line Connector; 100-240VAC General Availability

 Accessories
3 CL1211E/TB-SKD Ethernet Extender, PCB Sub Assembly, Terminal Block Line; 1 x 10/100; No Power Supply General Availability
4 CL1211E-SKD Ethernet Extender, PCB Sub Assembly, RJ45 Line; 1 x 10/100; No Power Supply General Availability
5 CL1212E/CC/EUI Extended Temperature CopperLink High Speed Auto Rate Extender; 2 x 10/100BaseTX; RJ45 Line Connector; Conformal Coated; 100-240VAC Available to Order; Coming Soon

 Accessories
6 CL1212E/CC/EUI-2PK Extended Temperature CopperLink High Speed Auto Rate Extender Kit; 2 x 10/100BaseTX; RJ45 Line Connector; Conformal Coated; 100-240VAC Available to Order; Coming Soon

 Accessories
7 CL1212E/EUI Extended Temperature CopperLink High Speed Auto Rate Extender; 2 x 10/100BaseTX; RJ45 Line Connector; 100-240VAC Available to Order; Coming Soon

 Accessories
8 CL1212E/EUI-2PK Extended Temperature CopperLink High Speed Auto Rate Extender Kit (Local and Remote); 2 x 10/100BaseTX; RJ45 Line Connector; 100-240VAC General Availability

 Accessories
9 CL1212E/TB/CC/EUI Extended Temperature CopperLink High Speed Auto Rate Extender; 2 x 10/100BaseTX; Terminal Block Line Connector; Conformal Coated; 100-240VAC General Availability

 Accessories
10 CL1212E/TB/EUI Extended Temperature CopperLink High Speed Auto Rate Extender; 2 x 10/100BaseTX; Terminal Block Line Connector; 100-240VAC Available to Order; Coming Soon

 Accessories
11 CL1212E/TB/EUI-2PK Extended Temperature CopperLink High Speed Auto Rate Extender Kit (Local and Remote); 2 x 10/100BaseTX; Terminal Block Line Connector; 100-240VAC General Availability

 Accessories
12 CL1212E/TB-SKD Ethernet Extender, PCB Sub Assembly, Terminal Block Line; 2 x 10/100; No Power Supply General Availability
13 CL1212E-SKD Ethernet Extender, PCB Sub Assembly, RJ45 Line; 2 x 10/100; No Power Supply General Availability
