Ethernet Extender

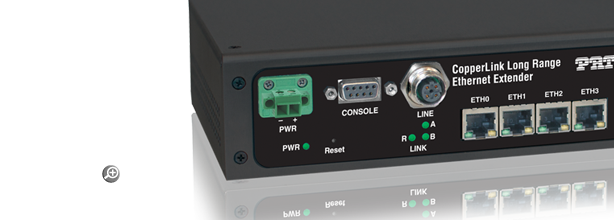

CopperLink CL2300E Light Industrial Long Range Copper Ethernet Extender

The CL2300E offers sturdy industrial design with superior Ethernet performance over existing copper infrastructure. Bonding technology extends connections up to 2 miles (3.2 km)without repeatersat symmetrical rates surpassing 22 Mbps.

Contact Us
Sales: sales@patton.com
Direct: +1 301 975 1000
Support: support@patton.com
Direct: +1 301 975 1007
Have Us Contact You
or
Login
 Connect with us
Twitter Linkedin Facebook Youtube

View All

Features

Overview

Applications

Specs

Ordering

Services



Features
--Image: Made in USA --
  • Bandwidth Rich—Bond up to 4 twisted pairs to achieve the desired rate and reach.
    • 1 Pair: 5.7 to 15.3 Mbps
    • 2 Pair: 11.4 to 30.6 Mbps
    • 3 Pair: 17.1 to 45.9 Mbps
    • 4 Pair: 22.8 to 61.2 Mbps
  • Operates Over Twisted Pair—Realize fiber-optic speeds without the expense—and hassle—of installing new cables or line-of-sight wireless circuits.
  • Plug and Play—Set these units up straight out of the box. No configuration is required. Auto-sensing 10/100 Ethernet ports support full or half duplex operation.
  • Multiple Line Rates Supported—Switch-selectable rate mode options optimize rate and reach for the noise environment, wire gauge/type and length.
  • Transparent LAN Bridging—Bypass network configuration requirements by transparently passing all higher layer protocols—including 802.1Q VLAN frames (tagged and untagged).
  • Made in the USA — This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Patton's American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.
Overview
Patton’s robust and reliable CopperLink 2300E Light Industrial Ethernet Extender delivers bandwidth greater than 60 Mbps in point to-point topologies. Extend Ethernet segments to IP-enabled devices or remote LANs using existing copper infrastructure. Often used for LRE (Long Range Ethernet), the CL2300 is also an excellent solution for point-to-point connectivity for noisy environments or questionable cable quality.

The CL2300E employs wire-bonding technology to combine up to 4 wire pairs into a single Ethernet connection with superior speed and distance performance. Each pair provides bandwidth ranging from 5.7 Mbps to 15.3 Mbps depending on segment length. CopperLink devices are engineered for reliability and ease of use. In the default plug-and-play mode, installers need only connect the cables and power up. Patton’s auto-rate adaptation feature negotiates the best-possible rate and reach for each wire pair.

The six user-selectable line-rate modes and all pair-bonding settings are configurable, so users can control the rate/reach combination for specialized applications. Should one wire-pair fail, the CL2300E will automatically adjust the line rate to ensure a stable connection.

For business-critical networking, Patton’s managed CopperLink series offers optimum versatility and reliability at an affordable price.

Applications
Even in hot, cold, or humid conditions, the CL2300E interconnects your IP-enabled devices over any existing copper infrastructure.

CopperLink™ 2300E application diagram


Ordering
# Model # Description Availability
1 CL2301E/CC/4ETH/DC CopperLink 1 Pair (2-Wire) Light Industrial Ethernet Extender; -40 to 85C; Corrosion Protection; RJ45 Female Line (8-position); 4 x 10/100BaseTX; 12-48VDC General Availability

 Accessories
2 CL2301E/CC/4ETH/DC-2PK CopperLink 1 Pair (2-Wire) Light Industrial Ethernet Extender Kit; -40 to 85C; Corrosion Protection; RJ45 Female Line (8-position); 4 x 10/100BaseTX; 12-48VDC General Availability

 Accessories
3 CL2301E/M12F/CC/4ETH/DC CopperLink 1 Pair (2-Wire) Light Industrial Ethernet Extender; -40 to 85C; Corrosion Protection; M12 Female Line (8-position); 4 x 10/100BaseTX; 12-48VDC General Availability

 Accessories
4 CL2301E/M12F/CC/4ETH/DC-2PK CopperLink 1 Pair (2-Wire) Light Industrial Ethernet Extender Kit; -40 to 85C; Corrosion Protection; M12 Female Line (8-position); 4 x 10/100BaseTX; 12-48VDC General Availability

 Accessories
5 CL2302E/4ETH/DC CopperLink 2 Pair (4-Wire) Light Industrial Ethernet Extender; -40 to 85C; RJ45 Female Line (8-position); 4 x 10/100BaseTX; 12-48VDC General Availability

 Accessories
6 CL2302E/CC/4ETH/DC CopperLink 2 Pair (4-Wire) Light Industrial Ethernet Extender; -40 to 85C; Corrosion Protection; RJ45 Female Line (8-position); 4 x 10/100BaseTX; 12-48VDC General Availability

 Accessories
7 CL2302E/CC/4ETH/DC-2PK CopperLink 2 Pair (4-Wire) Light Industrial Ethernet Extender Kit; -40 to 85C; Corrosion Protection; RJ45 Female Line (8-position); 4 x 10/100BaseTX; 12-48VDC General Availability

 Accessories
8 CL2302E/M12F/CC/4ETH/DC CopperLink 2 Pair (4-Wire) Light Industrial Ethernet Extender Kit; -40 to 85C; Corrosion Protection; M12 Female Line (8-position); 4 x 10/100BaseTX; 12-48VDC General Availability

 Accessories
9 CL2302E/M12F/CC/4ETH/DC-2PK CopperLink 2 Pair (4-Wire) Light Industrial Ethernet Extender Kit; -40 to 85C; Corrosion Protection; M12 Female Line (8-position); 4 x 10/100BaseTX; 12-48VDC General Availability

 Accessories
10 CL2304E/4ETH/DC CopperLink 4 Pair (8-Wire) Light Industrial Ethernet Extender; -40 to 85C; RJ45 Line (8-position); 4 x 10/100BaseTX; 12-48VDC General Availability

 Accessories
11 CL2304E/CC/4ETH/DC CopperLink 4 Pair (8-Wire) Light Industrial Ethernet Extender; -40 to 85C; Corrosion Protection; RJ45 Line (8-position); 4 x 10/100BaseTX; 12-48VDC General Availability

 Accessories
12 CL2304E/CC/4ETH/DC-2PK CopperLink 4 Pair (8-Wire) Light Industrial Ethernet Extender Kit; -40 to 85C; Corrosion Protection; RJ45 Female Line (8-position); 4 x 10/100BaseTX; 12-48VDC General Availability

 Accessories
13 CL2304E/M12F/CC/4ETH/DC CopperLink 4 Pair (8-Wire) Light Industrial Ethernet Extender; -40 to 85C; Corrosion Protection; M12 Female Line (8-position); 4 x 10/100BaseTX; 12-48VDC General Availability

 Accessories
14 CL2304E/M12F/CC/4ETH/DC-2PK CopperLink 4 Pair (8-Wire) Light Industrial Ethernet Extender Kit; -40 to 85C; Corrosion Protection; M12 Female Line (8-position); 4 x 10/100BaseTX; 12-48VDC General Availability

 Accessories
