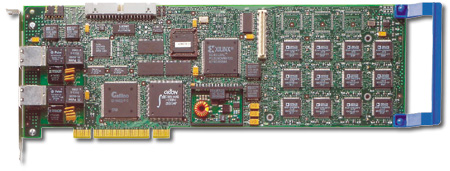

DialFire™ Model 2977 RAS Server-Based, Enterprise T1/E1 RAS & Fax Adapter Supporting open-standards remote access, fax, data collection, and modem pooling, the DialFire™ Model 2977 server-based RAS offers up to 60 ports in a single PCI slot.
Need help? Call Patton at +1 301 975 1000 or email sales@patton.com.
Features & Benefits
Up to 60 ports in a Single PCI Slot—24, 30, 48, or 60 ports with full V.90, FAX, and ISDN support
Scalable System Architecture—Unlimited number of Model 2977 servers can be installed in the same system, providing room to grow
Wide OS and third-party application support—The Model 2977 DialFire RAS integrates with, and take advantage of, the inherent communications capabilities built-into Microsoft, Novell, SCO, and Linux server operating environments
The following operating systems: Novell Netware, SCO OpenServer5, and SCO UnixWare are not supported by Patton's RAS Engineering & Technical Support Teams although legacy Digi International drivers are available from Patton's software Upgrade Site. For additional information, contact marketing@patton.com.
Open Systems Integration—Open standards-based design makes deploying your software solutions fast and simple
Web-Based Management—Hardware manager provides a variety of reporting, diagnostic, and troubleshooting tools
Universal server compliance—The Model 2977 Digital Domain RAS operates within the PCI 2.1 mechanical and electrical specifications, support 3.3 or 5-volt PCI servers, and share common software architecture
Overview
The Patton DialFire™ Model 2977 series of ISDN/analog adapters provides support for up to 60 ports in a single PCI slot, and is the ideal choice for a broad range of demanding applications, including remote access, fax, data collection and modem pooling.
The open standards-based design of the Model 2977 facilitates the fast and simple deployment of your software solutions. The software-upgradeable modem technology of the Model 2977 boards utilize high-performance digital signal processors (DSPs), and provide advanced V.90 modem, FAX, and ISDN support. Each data channel operates totally independent and configures itself dynamically for the service type needed, whether the incoming/outgoing call is based on an analog or a digital connection.
The flexible design of the Model 2977 allows it to grow with your application requirements. An unlimited number of Model 2977 units can reside in the same system, thereby providing the exact port density and functionality that is needed. In addition, a daughter board is available as a field-upgrade option, that can expand the Model 2977/24 to 48 ports and the Model 2977/30 to 60 ports.
Easy installation, configuration, and operation are key factors for successful deployment. Patton supports your needs with a
variety of diagnostic and troubleshooting tools, including the Web-based hardware management and reporting tool.
Applications
Many companies today rely on faxes to communicate with their customers. From hospitals to distribution companies, having the ability to send faxes simultaneously is a must. With Patton's 2977 DialFire RAS, setting up a fax server is easier than ever. For companies with large faxing requirements, the 2977 RAS adapters for digital & analog communications combine Patton's world-class hardware with high-speed ISDN access to provide up to 60 simultaneous connections.
Specifications
Modem Data Modes: V.90, K56Flex, V.34, V.34bis, V.32bis, V.32, V.24bis, V.23, V.22bis, V.22, V.21, Bell 212a, Bell 103, TIA TSB37-A, TIA TSB38 Compliance: FCC Part 15A, CE Mark, EMC Directive 89/336/EEC, Low-Voltage Directive 73/23/EEC FAX Command Set: Group 3 FAX Class 2.0, Class 2.0 Error Correction, All optional 2.0 Data format conversions are supported including: Normal Image, Fine Image, 1D Image Conversion, 2D—MR Image conversion, Copy Quality Checking & Receiving Thresholds, Adaptive Answering, TSI Banner, Distinctive Ring, Caller ID, and IS-101 Voice Command Set. ISDN Specifications: Primary Rate Interface: D-Channel Signaling, ISDN Data Link Layer ITU-T Q.921, ISDN Call Control Signaling ITU-T Q.932/I.451 Compression & Error Correction: V.42bis, MNP Class2, MNP Class 4, MNP Class 5, V.42 Error Correction (LAPM & MNP) T1/E1 Specifications: T1 Supervision Modes: Ground Start Signaling, Wink Start Signaling, Immediate Start Signaling, & Loop Start. E1 Supervision Modes: CCS with CRC4 ITU G.704, CAS with CRC4 ITU G.704, CRCA with Remote End Block Error signaling, and R2 Signaling Fax Modes: Group 3, V.17, V.29, V.27,V.21 Channel 2 Certifications:Safety: USA: UL Recognized, UL 1950 • Canada: CSA Certified, CSA C22.2 No.950 • Europe: EN60950—CE Mark: Australia: AS3260—Telecom: USA: FCC Part 68 • Canada: CS03 • Europe: I-CTR4 (NET 5) • Australia: TSO38—Emission & Immunity: EN50082 Immunity, FCC Part 15, Subpart B Op. Temp.: 32–122°F (0–50°C) Humidity: 5–90% non-condensing Air Movement: 30 CFM Forced Altitude: 0–12,000 ft (0–3,660 m) Operating System Support: Microsoft > Windows 2000 Server, Windows XP, Windows NT 4.0 • Linux with 2.4.x drivers. 2.6.x drivers are currently not available Dimensions: Model 2977 24, 30, 48, & 60: 12.283L x 4.20W in. (31.199L x 10.688W cm) Model 2977 Daughter Card: 7.10L x 3.80W in. (18.034 x 9.652 cm)
)
Go into the GUI. Click on the "Interfaces" tab on the left hand side. Then you will want to click on the first "Details..." tab and there you will see the MAC address listed as the "Physical Address:".
Drivers for Windows 2003 Server for the Dialfire 2977?
For Windows 2003 (server) drivers for the 2977 are included in the OS driver database.
What is the minimum system requirements for a 2977 PT1/PT2 PE1/PE2?
A Pentium 333Mhz processor or higher.
256 MB RAM for Windows 2000
2MB RAM per 2977 port
What types of High Speed Facilities do the US use?
The US uses a T1 (message oriented or robbed bit) line. A message oriented line is a PRI (Primary RateInterface) ISDN line with 23B channels and 1 D channel. Instead of the phone company sending the ring voltage in-band with the data, the digital packet with the hook status is sent in its own channel (D channel) as an out-of-band signal (Common Channel Signaling). The gain from losing one channel (D channel which happens to be channel 24 on a T1) is that the 23 B channels are full 64K able DS0s and are not interrupted by calls coming in on the line. This is the line you want to use if you have users using a ISDN BRI (Basic Rate Interface) and a Terminal Adapter. This line also will tell you information like who is calling and what number was dialed. Robbed bit signaling is a type of in-band signaling (Channel Associated Signaling) used in T1 when the D channel is buried with the B channels, using the least-significant bits to indicate the hook condition. The least significant bits are "robbed" from each DS0 leaving a throughput of 56kb per second. Robbed bit signaling leaves you with 24 DS0s rather than 23 (remember you can only make ISDN BRI calls on a PRI that's the advantage, because the robbing of the bits only allows each DS0 56K and there is no digital channel to send digital packets on).
How do I configure SYSLOGD in my Linux box to create a debug log?
On the Patton you need to do the following:
Go to System Log->Modify.
Set IP address for Syslog Daemon to the IP address of the machine running syslogd. Select Submit Query
Set minimum priority for syslog daemon to the desired level of logging. The lower the number next to the option the more information you get. Verbose is quite verbose. Debug is also probably more logging than you want. Select submit query.
If you want the messages to go into a separate file called local1-local7 then you set the Unix Facility.
The following instructions are valid for Rehat Linux V6.2. The commands may be slightly different for your version of Unix/Linux.
On the Linux machine, if syslogd is running it will automatically start logging information to the /var/log/messages. If you want that information to go to a separate file as indicated by selecting the Unix facility above then do the following:
Go to /etc and edit syslog.conf.
To log messages to local1.log add the following line:
local1.* /var/log/local1.log
For each of local1-local7 you would need to add a line like the one above.
Stop and start syslogd.
To kill the process type: $ killall syslogd
Restart syslogd by going to /sbin and typing: $ ./syslogd or just $ syslogd from any directory if you have /sbin in your path.
Create an empty file for syslogd to write messages to:
cd /var/log
touch local1.log
You would need to touch each localx file you will have syslogd write messages to.
How is the MTU(maximum tranmission unit) determined on a call?
The remote access server has a default MTU of 1524. This is the maximum The MTU of the ethernet media. We recommend that this not be changed. The MTU will be negotiated during LCP negotation for a dial-in user. During LCP negotiation we will tell the remote end we are capable of 1524.
There are two ways in which a customer can receive an MTU that is lower:
1. The RADIUS software returns a Framed-MTU attribute that specifies a lower value. In releases 2.3.3 and lower, we will change the MTU in response to this attribute. In 2.4.1 and above this RADIUS attribute is ignored.
2. The remote modem indicates that an MTU of 1524 is not acceptable and wants 512. We 'give in' to that request and assign 512 as the MTU.
A lower MTU on a dial-in call is not necessarily a bad thing. Most packets that are larger than the MTU of a connection can be broken down and sent down the connection in smaller chunks.
The problem occurs when the remote access server receives a packet larger than the connection's MTU and the packet has the Do Not Fragment bit set. This bit tells the remote access server that it must not split the packet into smaller chunks. Because the remote access server can not split the packet into smaller chunks AND can not send it as-is over the connection, it drops the packet.
What the dial-in user may see is the inability to load certain web sites.
