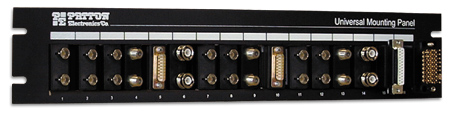

Model 1001MP16
16-Slot Universal Mounting Panel
Rack, Stack, and Organize with Patton's Model 1001MP16 Multi-Functional Universal Mounting Panel. Rack up to 16 Patton MicroPak Devices into a dense 2U solution.
|
- Mount any MicroPak—Supports Media Converters, Terminal Servers, Ethernet Bridges, Fiber Modems, CSU/DSUs, Interface Converters, Short Haul Modems, and Surge Protectors
- Low Profile-2U High—Universal Mounting Panel is only 2U (3.5 in. or 8.9 cm) high and holds up to 16 MicroPaks; Installs quickly into any standard 19 inch rack
- Front & Rear Access Panels—Design provides for easy front or rear access to your Patton MicroPak
- Cost Effective—Adapt Patton MicroPak products you already own for use in a standard 19 inch rack, thereby eliminating the expense of upgrading to rack-mounted equipment
The Model 1001MP16 Universal Mounting Panel offers the ability to rack-mount any of Patton's MicroPak products side-by-side. Products that are compatible with the 1001MP16 include Device servers, Media converters, Ethernet bridges, Fiber modems, Interface converters, and many more!
The sturdy 2U design of the 1001MP16 enables quick and hassle-free installation into any standard 19-inch rack. The 1001MP16's unique bracket-and-groove mounting system enables Patton MicroPak cases to be mounted securely into the panel. Dry-erase labels and individually numbered ports are provided for easy circuit/port identification.
The Model 1001MP16 provides an economical method for converting your favorite Patton standalone MicroPak products into a customized rack-mounted solution.
| Compatible MicroPak Products | | | Media
Converters - 2300 Series
- 2310 Series
- 2311 Series
- 2312 Series
| | Fiber
Modems | |
| Interface
Converters | | Serial
Modems | | | Device
Servers | | Modem
Eliminators | | | Ethernet
Bridges | | Serial/Parallel
Converters | | | Baluns | | Surge
Protectors | | | CSU/DSUs
| | Data
Taps | | and many more... |
Front panel: 16 Operationally independent slots
Dimensions: 19L x 1.5W x 3.8H in. (48.3L x 3.8W x 8.9H cm)
Weight: 1.1 lbs (0.5 kg)
Latching: 16 individual steel clips with hardware (Included with unit)
Power: None required. Some units may require individual power supplies
|
|
|
|
| Ordering Information |
Email: sales@patton.com Tel: +1 301-975-1000 |
|
1001MP16
|
19" 16 SLOT MOUNTING PANEL
|
|
1001MP-PS8
|
8 BARREL 5V, 4A POWER SUPPLY
|
|
