Encrypted
Configuration Download
-
An external encryption tool on the PC is used to encrypt the
configuration file:
enctool
encrypt <plain-config-file> <enc-config-file> [<key>]
-
The encrypted confiugration file can then be downloaded with TFTP
triggered by
-
the CLI copy command:
copy
tftp://<host>/<path> <config-file>
-
Auto Provisioning
-
SNMP
-
HTTP
-

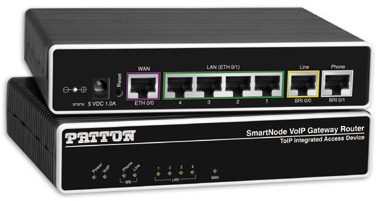

On the SmartNode the encryption is detected and the configuration
file is automatically decrypted
before
stored to flash.
-
A custom encryption key can be
-
downloaded to the SmartWare
-
specified with the PC encryption tool
-
The encryption key may include the MAC address and/or serial number
of the SmartNode using the
placeholders
$(system.mac) and $(system.serial) resp.
-
An encrypted configuration file can be uploaded to a TFTP server on
request, specifying the encrypted
flag:
copy
<config-file> tftp://<host>/<path> encrypted
-
On the PC the encryption tool can be used to decrypt the file:
enctool
decrypt <enc-config-file> <plain-config-file> [<key>]
-
A log file lists the last up/downloads:
show
log file-transfer
Use
Cases
Install
a custom encryption key (optional)
You
can install a custom encryption key with the SmartNode. The
encryption key is used to automatically
decrypt
an encrypted configuration file that is downloaded later. A default
encryption key is already
installed
on the SmartNode.
To
install an encryption key you have to create a file on your TFTP
server that contains the key. Then you
have
to download this key file to the SmartNode using the ‘copy’
command of the SmartNode:
The
key file shall contain a key string of at most 24 characters on a
single line. Spaces, tabs and LF/CR
characters
are trimmed. The key must not contain LF/CR or the null character and
must not start or end
with
a space or tab. If the key contains more than 24 characters, only the
first 24 characters are
considered.
Part
Nr. 80-0165, Rev. 1.13
12-07-05 49/54
The
key may contain variables that are resolved when the key file is
downloaded to a SmartNode. Using
this
mechanism you can specify device-specific encryption keys. We
currently support the following
variables:
-
$(system.mac):
The MAC address of the first ethernet port. Execute the show
port ethernet
command
on a SmartNode to display the MAC address of a SmartNode. This value
without the colon
separators
and with all lower-case hexadecimal letters is used instad of the
variable on the SmartNode.
-
$(system.serial):
The serial number of the SmartNode. Execte the show
version command on
the
SmartNode to display the serial number.
When
your key file contains the following line…
123$(system.serial)abc$(system.mac)XYZ
show
port ethernet shows the
following…
Ethernet
Configuration
-------------------------------------
Port
: ethernet 0 0 0
State
: OPENED
MAC
Address : 00:0C:F1:87:D9:09
Speed
: 10MBit/s
Duplex
: Half
Encapsulation
: ip
Binding
: interface eth0 router
and
show version the
following….
Productname
: SN1200
Software
Version : R3.20 TB2005-06-24_MEYER SIP
Supplier
:
Provider
:
Subscriber
:
Information
for Slot 0:
SN1200
Hardware
Version : 0004, 0001
Serial
number : 100000020002
Software
Version : R3.20 TB2005-06-24_MEYER SIP
the
encryption key on this SmartNode will be interpreted as…
123100000020002abc000cf187d909XYZ
Then
you have to download the created key file to the SmartNode. Open a
telnet session and type in the
following
commands:
>enable
#copy
tftp://<ip>/<path> key:
where
<ip> is the IP address of your TFTP server and <path> is
the path to the key file relative to the
TFTP
root.
Encrypt
a configuration file
Use
the encryption tool to encrypt a configuration file on your PC.
Therefore you have to enter the
following
command.
enctool
encrypt <plain-file> <encrypted-file> [<key>]
where
<plain-file> is the path of the non-encrypted input
configuration file and <encrypted-file> is the path
of
the encrypted output configuration file. <key> specifies the
encryption key which shall be used to
encrypt
the configuration file. If ommitted the default key is used.
Download
an encrypted configuration file
Now
you can download the configuration file as usual using the CLI
copy-command, the autoprovisioning
feature,
HTTP or SNMP download. The SmartNode automatically detects that a
downloaded
file
is encrypted and tries to decrypt the file using the pre-installed
key.
Upload
an encrypted configuration file
The
SmartNode immediately decrypts a configuration file after downloading
it. This is the configuration
file
is stored non-encrypted in the flash memory. Thus when you upload a
configuration it is uploaded
non-encrypted.
You
may upload an encrypted configuration file specifying the encrypted
flag at the end of the copy
command:
#copy
startup-config tftp://<ip>/<path> encrpted
This
encrypts the configuration file before sending it to the TFTP server.
Use the enctool decrypt
command
on the PC to regain the original configuration.
File
Transfer Logs
We
introduced an additional log file that stores the history of all file
transfers (up to 50 entries). To show
all
recently executed file transfer operations enter the following
command:
#show
log file-transfer
