RocketLink™-G Model 3088
G.SHDSL NTU
The RocketLink™-G Model 3088 is the lowest cost G.SHDSL NTU modem that supports data rates up to 4.6 Mbps over one pair of copper wire.



Need help? Call Patton at +1 301 975 1000 or email sales@patton.com.

Features & Benefits
--Image: RACKABLE! Rack Mount Available --
  • nx64 Rates to 4.6 Mbps—With multiple full-duplex symmetric rates available, users select the bandwidth option they need.
  • Low Cost Fixed Interfaces—Multiple interface options to choose from: T1/E1 (G.703/G.704), 10/100 BaseT Ethernet, X.21, and V.35.
  • Local and Remote Loopbacks—Loopbacks add a powerful troubleshooting tool for determining line quality
  • Software Upgradeable—Software upgrades make it easy to keep the RocketLink-G in service for years
  • Standalone or Rack Solutions—Available in desktop and high density SNMP managed racks
  • NetLink Plug ‘n’ Play—Just plug them in and the link comes up in seconds. Set the unit to use G.Handshaking and the selection of optimal link speeds can also be done
  • Local and Remote Console—With remote console, any Patton G.SHDSL modem (3096RC or 3088) can be used to manage the remote CPE modem


Overview
--Image: RACKABLE! Rack Mount Available -- The Model 3088 G.SHDSL RocketLink-G NTU is the perfect choice for users or service providers who need high-speed dedicated network connections and know what interface they want. Based on the ITU and ETSI G.SHDSL G.991.2 standard, the RocketLink-G NTUs enable providers to extend their reach-and-range by delivering rate-adaptive nx64 symmetrical speeds from 192 kbps to 4.6 Mbps—all over a single pair of wires. The Model 3088 likewise supports G.Handshaking per ITU G.994.1 for automatic rate adaptation to existing line conditions.

The RocketLink-G uses Patton’s NetLink Plug 'n' Play feature to remove any questions of configuration when used as the CPE solution with any Patton CO solution. Just set the units to their default mode and plug them in. The remote modem configures automatically and the link is up and running in seconds. With support for remote console, future configuration changes and operating statistics are available via the out of band EOC channel. Use remote console when deploying RocketLink-G NTUs either back to back or with a ForeFront system. A perfect complement to any ForeFront AIS solution.

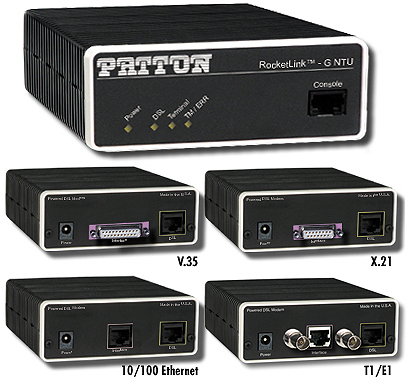

The Model 3088 is available with V.35, X.21, T1/E1 and 10/100Base-T Ethernet interfaces. The V.35 interface is presented on an female DB-25 connector. The X.21 is presented on a female DB-15 and is DTE/DCE selectable. The T1/E1 interface is presented on an RJ-48C and optional dual BNC connector. It operates as a channelized interface allowing for fractional T1/E1 configurations (G.703/G.704).

Applications

Model
  • The Model 3088 RocketLink-G NTU excels in manageability even in point-to-point configurations.
  • NetLink Plug-and-play automatically configures a remote unit based on parameters stored in the local unit.
  • Secure console lets an operator log into a unit to manage and configure it locally.
  • Remote console makes configuration and management of a remote unit easy over an out-of-band channel.
  • RocketLink-G NTUs are software upgradeable from the console port.
  • When attached to a ForeFront AIS, the RocketLink-G can be managed via an SNMP proxy.


Specifications

3088/CA
3088/D
3088/K
3088/I
Interface
V.35; female DB-25 with M/34 converter included
X21; female DB-15
T1/E1; Dual BNC and RJ-48C
10/100Base-T Ethernet
Testing Parameters V.52 511/511E Pattern Generator with RDL; LAL
Clocking Internal, Network or Receive Recover Clocking
Line Coding TC-PAM 16 for rates from 64 kbps to 2.3 Mbps; TC-PAM 32 for rates above 2.3 Mbps; Annex A & B; Automatic Line Equalization
Line Interface RJ-11; Two Wire (single twisted pair); Impedance = 135 Ohm
Management DIP switch (all models except 3088/I), console, remote console or proxy SNMP from a Central Office ForeFront
Front Panel Indicators LEDs for DSL link, Transmit/Receive data, no signal, loop test errors, and test mode indication
Power Supply External power supply options: Universal 90 - 260 VAC operating from 50 - 60Hz; 120 VAC/60 Hz; 240 VAC/60Hz; -48VDC
Compliance FCC Part 15A, CE Mark, EMC Directive 89/336/EEC, Low-Voltage Directive 73/23/EEC
Environment Operating Temperature: 32-122°F (0–50°C); Humidity: 5-90% non-condensing
Dimensions 5.5in x 4.2in x 1.5in (13.9cm x 10.6cm x 3.9cm)

Distance Table
NO NOISE
Line Rate
26g (0.4mm)
24g (0.5mm)
22g (0.6mm)
19g (0.9mm)
N
kbps
feet
miles
km
feet
miles
km
feet
miles
km
feet
miles
km
3
192
21000
4.0
6.4
28000
5.3
8.5
35000
6.6
10.7
52500
9.9
16
8
512
18750
3.6
5.7
25000
4.7
7.6
31250
5.9
9.5
46875
8.9
14.3
16
1024
16500
3.1
5.0
22000
4.2
6.7
27500
5.2
8.4
41250
7.8
12.6
24
1536
13500
2.6
4.1
18000
3.4
5.5
22500
4.3
6.9
33750
6.4
10.3
32
2048
12750
2.4
3.9
17000
3.2
5.2
21250
4.0
6.5
31875
6.0
9.7
36
2304
11250
2.1
3.4
15000
2.8
4.6
18750
3.6
5.7
28125
5.3
8.6
48
3072
8250
1.6
2.5
11000
2.1
3.4
13750
2.6
4.2
20625
3.9
6.3
56
3584
7500
1.4
2.3
10000
1.9
3.0
12500
2.4
3.8
18750
3.6
5.7
64
4096
6000
1.1
1.8
8000
1.5
2.4
10000
1.9
3.0
15000
2.8
4.6
72
4608
5250
1.0
1.6
7000
1.3
2.1
8750
1.7
2.7
13125
2.5
4.0





Ordering Information Email: sales@patton.com    Tel: +1 301-975-1000
3088/CA/EUI RocketLink-G - G.SHDSL MODEM, V.35 DCE interface on DB-25F; DB-25 to M/34 converter included; universal AC
3088/D/EUI RocketLink-G - G.SHDSL MODEM, X.21 interface on DB-15F connector; Universal AC
3088/I/E48 G.SHDSL MODEM, W/ ETHERNET and 48 VDC
3088/I/EUI G.SHDSL MODEM, W/ ETHERNET Interface
3088/K/E48 RocketLink-G - G.SHDSL MODEM, E1 with RJ48&BNC; 48 VDC power
3088/K/EUI RocketLink-G - G.SHDSL MODEM, E1 with RJ48&BNC; UI power
3088/T/EUI RocketLink-G - G.SHDSL MODEM, T1 with RJ48; UI power
3088RC/A/I RocketLink-G G.Shdsl NTU Rack Card; V.35 interface on M34 connector
3088RC/C/IA RocketLink-G G.Shdsl NTU Rack Card; 10BaseT interface
3088RC/D/V RocketLink-G G.Shdsl NTU Rack Card; X.21 interface on DB15 connector
3088RC/K/K RocketLink-G G.Shdsl NTU Rack Card; E1 interface BNC & RJ
