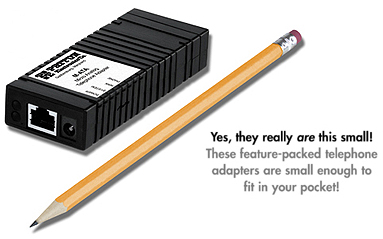

- Ultra-Miniature—Smallest full-function analog telephone adapter available today!
- Supports Over 20 Voice Calling Features—Call waiting, call conference, caller ID, hotline, distinctive ring and more!
- NAT, DHCP, PPPoE—Provides maximum connectivity across firewalls and transport networks.
- SIP Signaling—Deploy into any multimedia, interactive, or softswitch network with the leading call and session signaling protocol.
- Toll Quality CODECs & T.38 Fax—Use standard G.711 or G.726 CODECs for toll-quality voice, or G.723 or G.729 for low-bandwidth applications.
- Centralized Management—HTTP/SNMP manageable from any location.
The SmartLink Micro Analog Telephone Adapter provides connectivity for analog phones and faxes to a home, home office or corporate LAN. Connecting to any analog phone, fax or PBX, the SmartLink product is ay cost effective solution for small offices and telecommuters to access Internet-based telephone services and corporate intranet systems across established LAN and Internet connections like xDSL and cable modems.
The M-ATA provides one Ethernet (RJ-45) port and one FXS (RJ-11) analog phone port for quick and easy interconnection to the local LAN. LEDs show at-a-glance the status of the system, LAN, WAN, and phone ports.
A full suite of IP features (DHCP, NAT/PAT) are available to maximize universal connectivity. VLAN tagging and prioritization enables voice traffic to be handled before data traffic insuring higher quality voice calls. Support for PPPoE tunneling simplifies extending corporate intranet services to telecommuters.
The user friendly web interface offers two levels of configuration; level one covers basic subscriber specific parameters, level two offers advanced settings for the transport network. Configuration and firmware can be downloaded from a centralized TFTP or HTTP server.
The M-ATA is SIP standard compliant. Analog phones attached to the SmartLink can use advanced calling features such as call forwarding, caller ID, 3-way calling, call holding, call retrieval and call transfer.
Patton's Micro Analog Telephone Adapter provides seamless access to Internet telephony and data services. The M-ATA connects to any broadband access provider via a cable or xDSL modem.
| Voice
Connectivity |
2-wire Loopstart,
RJ-11/12
Short haul
loop 1.1 km @3REN
Caller-ID
Type-1/2 FSK and ITU V.23/Bell 202 generation
|
|
Connectivity |
1 10/100Base-TX Full Duplex/Autosensing Ethernet RJ-45 |
| Voice
Processing (signalling dependent) |
SIP
Voice CODECS
- G.711 A-Law/µ-Law (64 kbps)
- G.726 (ADPCM 40, 32, 24, 16 kbps)
- G.723.1 (5.3 or 6.3 kbps)
- G.729ab (8 kbps)
G.168 echo cancellation
2 parallel voice connections
DTMF detection and generation
Carrier tone detection and generation
Silence suppression and comfort noise
Configurable dejitter buffer
DTMF in-band & out-of-band
Configurable transmit packet length
RTP/RTCP (RFC 1889)
STUN
|
| Fax
and Modem Support |
G.711 transparent FAX
T.38 Fax relay (9.6 k, 14.4 k)
|
|
Voice Services/Features |
Anonymous CallerID block
Call blocking
Call
forward - on busy
Call
forward - selective
Call
forward - unconditional
Call
hold/retrieve
Call
return
Call
transfer - blind
Call
transfer - with consultation
Call
waiting/retrieval
Caller-ID
Conference
drop
Conferencing
(3-way calling)
Distinctive
ring
Do
not disturb
Hotline
calling
Incoming
CallerID on/off
IP
URL dialing
Message
waiting indication
Self-caller
ID block
Speed
dial
Voicemail
message retrieval
Warmline
calling
|
| IP
Services |
NAPT
DHCP
client
PPPoE
Programmable
static routes
ICMP
redirect (RFC 792); Packet fragmentation
VLAN
support 802.1p/q
|
|
Management |
Browser
configuration interface
Multilevel
security access
TFTP
& HTTP configuration & firmware loading
SNMP
v2 agent (MIB II and private MIB)
Syslog
support
|
| Operating Environment |
Operating temperature:
0-40°C (32–104°F)
Operating
humidity: 5-80% (non condensing) )
|
|
System |
Power:
100-240 VAC (50/60 Hz) |
| Compliance |
EMC compliance:
EN55022 and EN55024
Safety compliance:
EN 50950
CE compliance
FCC Part 15 Class
B
|
|
Physical |
Dimensions:
3.88L x 1.75W x 0.75H in. (9.8L
x 4.4W x 1.9H cm)
Weight:
0.13 lbs (0.06 kg)
|
|
|
