Model 430 Series
Single-Port E1/E2 Toolless IDC G.703/G.704 Baluns
The Patton 430 Single Port E1/E2 Balun Series provides 75/120-Ohm conversion in an ultra-miniature enclosure
|
-
Convert 75 Ohm Coax to 120 Ohm Twisted Pair--Resolves impedance mis-match between twisted pair equipment and coax cabling
-
Ultra-miniature size--Provides maximum density when installed into a 19-inch (48.3cm) panel
-

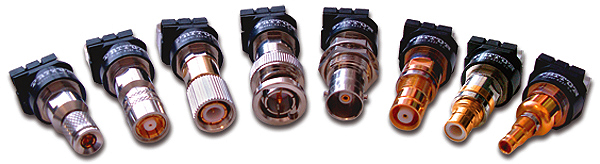

Industry Standard Coax Connectors--A host of coax connectors including BNC, 1.6/5.6, 1.0/2.3 and Type 43 are available
-
Low Insertion Loss--Fully meets ITU-T (CTR-12) G.703 standards
-
No Power Required--Operation is transparent to data, no AC/DC power is required
Patton’s new G.703/G.704 toolless insulating displacement connecting (IDC) module baluns are ideal for carriers seeking a cost-effective, space-efficient, and proven method of impedance matching 75-Ohm coax to 120-Ohm single-conductor connections. The baluns provide transparent bi-directional signal conversion with no AC or battery power required.
Various industry standard types of coaxial connectors (75 Ohm) are available including male and female combinations of BNC, 1.6/5.6, 1.0/2.3, and Type 43. The 3-pole toolless IDC connector used for wrapping single-conductor connections (120 Ohm) utilizes a slit in the cable anchor to allow the cable to be inserted after termination. The toolless IDC connector is also offset so that a cable can be positioned between baluns on the DDF/patch panel as required. The toolless IDC connector is clearly labeled A, B, and G (Ground) to make installation more convenient.
 |
 |
 |
|
Model
431F
Single
Port BNC Female Panel Mount to Toolless IDC Balun
|
Model
431M
Single
Port BNC Male Panel Mount to Toolless IDC Balun
|
Model
432F
Single
Port 1.6/5.6 Female Panel Mount to Toolless IDC Balun
|
 |
 |
 |
|
Model
432M
Single
Port 1.6/5.6 Male Panel Mount to Toolless IDC Balun
|
Model
433F
Single
Port 1.0/2.3 Female Panel Mount to Toolless IDC Balun
|
Model
433M
Single
Port 1.0/2.3 Male Panel Mount to Toolless IDC Balun
|
 |
 |
|
|
Model
434F
Single
Port Type 43 Female Panel Mount to Toolless IDC Balun
|
Model
434M
Single
Port Type 43 Male Panel Mount to Toolless IDC Balun
|
|
|
|
|
|
Model
430R
The
Patton Model 430R houses up to 32 individual toolless IDC baluns for 16 E1/E2
circuits. The 430R fits into standard 19-inch racks and includes a dry-erase
tab for easy and clear marking
|
|
Patton’s Ultra-miniature G.703 toolless IDC baluns are fully shielded and are ideal in telecom applications where space is a premium. The Model 430 Series can be panel mounted or cable mounted and feature IDC terminations which allow installation without the need of special tools. Converting your G.703 signal from coax to twisted-pair enables the use of high density IDC modules in the Digital Distribution Frames (DDF), which significantly increases the available density.
| Patton’s
Toolless IDC Connector Features |
 |
 |
Specially designed toolless IDC connector for easy connection of unterminated cable. |
 |
IDC toolless connector
clearly marked A, B and G for easier installation. |
 |
Slit in cable anchor
allows cable to be inserted after termination. |
 |
Offset IDC allows cable
to be positioned between baluns on DDF as required. |
Transmission Line: ITU-T G.703/G.704 2-8 Mbps
75-Ohm Connection: BNC; 1.6/5.6, 1.0/2.3, or Type 43
120-Ohm Connection: 3 pole IDC toolless
Insertion Loss: Max 0.2dB @ 2Mbps; Max 0.3dB@ 8Mbps
Cross Talk: Better than -80dV from 0.1 to 12MHz between any two baluns on a DDF strip with 15 mm centers
Return Loss: -29dB @ 2Mpbs; -21dB @ 8Mbps
Dimensions: 19L x 1.5W x 3.8H inch (48.3 L x 48.3 W x 8.9 H cm)
Weight: 0.4 lbs (0.18kg)
|
|
|
|
| Ordering Information |
Email: sales@patton.com Tel: +1 301-975-1000 |
|
430R/16
|
16 PORT 2U BNC IDC BALUN RACK
|
|
431F
|
G.703/G.704 Balun, BNC Female bulkhead Tooless IDC with metal thread
|
|
431M
|
G.703G.704 Balun, BNC Male to Tooless IDC
|
|
432R/16
|
16 PORT 2U 1.6/5.6 IDC BALUN RACK
|
|
