SmartNode™ 4650 G.SHDSL
Multiport ISDN VoIP IAD with G.SHDSL.bis Interface
The SmartNode 4650 Multiport ISDN VoIP IAD with G.SHDSL.bis Interface, equipped up to 5 BRI ports and 8 simultaneous voice channels, is the best way to connect ISDN networks to the world of voice over IP. Using integrated G.SHDSL.bis broadband access, it delivers converged voice and data services that exceed ISDN standards.



Need help? Call Patton at +1 301 975 1000 or email sales@patton.com.

Features & Benefits

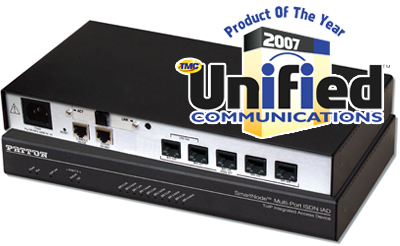

--Image: Unified Communications 2007 Product of the Year --
  • Up to 8 Simultaneous Voice or T.38 Fax Calls—Up to 8 simultaneous low-bandwidth voice or T.38 fax calls with 3 to 5 ISDN BRI So ports. Advanced adaptive traffic management and shaping provides maximum voice quality.
  • G.SHDSL.bis Broadband Access—Complete Access Router with integrated G.SHDSL.bis WAN interface. Up to 5.7 Mbps symmetrical throughput, supporting ATM QoS. Supports multiple PVC and DSLAM interoperability.
  • Integrated SIP and T.38—Softswitch certified signaling support between Q.SIG, SIP, and H.323.
  • Transparent Telephony Features—Handles complex number manipulation and mapping scenarios for most seamless integration with existing infrastructure, CLIP, CLIR, hold, AOC transfer and much more.
  • Toll-Quality VoIP—Advanced traffic management and shaping, combined with Patton’s patent-pending DownStream QoS™ enforce uninterrupted toll-quality voice over best-effort networks.
  • Management & Provisioning—Web-based management, SNMP, command line interface. Automated provisioning for easy large-scale deployments.


Overview
--Image: Unified Communications 2007 Product of the Year -- The SmartNode 4650 series is the CPE of choice for business broadband access providers that want to generate new revenue and acquire new customers through voice-over-IP. Part of the proven market-leading SmartNode VoIP product family, the SmartNode 4650 Series features a 3 or 5 BRI/So port configuration to fit the requirements of small and medium enterprises.

In one single box, it combines broadband access and voice-over-IP, and thanks to IGMP v2/v3 proxy functionality it also delivers video. Throughput ranges up to 5.7 Mbps on 2 wires are made possible with G.SHDSL Annex F & G support, and interoperability covers all major G.SHDSL COs. This is triple-play at your fingertips!

The extra BRI port solves many VoIP network integration problems encountered in real-world installations. The port can synchronize the gateway, and it can be used as a local PSTN breakout port for survivability. It can also be used to shorten the time of number portability—accepting incoming calls through the breakout port while making outgoing calls on the cost-saving VoIP network. With the life-line relay, the port even enables integration of an ISDN emergency terminal powered from the public ISDN.

Like every SmartNode, the 4650 Series models are state-of-the-art VoIP gateways with outstanding interoperability for fax (T.38 and G.711 fallback) and voice. SmartNode products provide seamless network integration, continuous trouble-free operation and cost effective deployment to protect your investments for the future.

Applications
Network Integration
SmartNode 4650 G.SHDSL application diagram


Specifications

Voice Signaling

SIPv2 • H.323v4 • SIP call transfer, redirect • Overlap or en-bloc dialing • DTMF in-band, out-of-band • Configurable tones
Broadband Access 2-wire G.SHDSL ITU-T G.991.2, Annex A, B, F, G • Up to 5.7Mbps • PPPoE • 8 PVCs, each UBR, CBR or VBR-rt selectable • I.610 OAM F4/F5 support • G.994.1 (G.hs)
Call Routing & Services Regular expression number matching • Regular expression number manipulation • Least Cost Routing • Number blocking • Short-Dialing • Digit collection • Distribution- and Hunt- Groups
ISDN 3/5 BRI So ports, RJ-45 • NT/TE configurable per port • Built-in line power on each port (total 4W) • DSS1, Q.921, Q.931. NTT-64 • Point-point and point-multipoint • Lifeline Bypass Relay • Optional QSIG support**
Voice Processing G.711m/A-law • G.723.1 (6.4 kbps) • G.729, 729a, 729ab (8 kbps) • G.726 (16 ,24, 32, 40 kbps) • G.168 echo cancellation (25 ms) • 4/8 simultaneous low-bandwidth voice or T.38 fax calls • Transparent ISDN data • Silence suppression and comfort noise • Adaptive and configurable dejitter buffer • Configurable packet length
IP Quality of Service Voice priority, DownStreamQoS™ • Traffic Management, shaping policing • IEEE 802.1p, IEEE 802.1Q, 4096 VLANs (Tag insertion/deletion), TOS, DiffServ Labeling
Connectivity Two 10/100bT Ethernet ports • Auto-MDIX • DHCP Client • PPPoE Client (multi-session) • IP Multi-Netting, VLAN, Secondary IP • IPv4, RIPv2, ICMP • Dynamic and static NAT and NAPT • ACL Firewall • DNS, DynDNS • DHCP Server • SNTP Client • Optional IPsec VPN (DES, 3DES, AES)
Management Web-based GUI • Fully Documented CLI • Telnet and HTTP access • TFTP configuration up- and download • TFTP firmware upgrade • SNMPv1 agent (MIB II and private MIB) • Built-in diagnostic tools • Secure Auto-Provisioning
Power & Packaging Desktop metal chassis Dimensions: 11.0W x 1.5H x 6.2D in. (28W x 3.9H x 15.7D cm) Weight: < 21 oz (600 g) Power Consumption < 10 W
Operating Environment

Operating temperature: 32–104°F (0–40°C) Operating humidity: up to 90%, non-condensing
Compliance

FCC Part 15 Class A (US EMC) CE per RTTE 99/5/EC (EMC and LVD) Safety—EN60950 TBR-3 (ISDN BRI/So)



Ordering Information Email: sales@patton.com    Tel: +1 301-975-1000
SN4654/3BISGS/EUI Smartnode 3 BRI VoIP IAD - 1 Fast Ethernet, 8 VoIP Call; Passthrough Relay; G.SHDSL.bis interface, H.323 and SIP, External 100-250VAC 50/60Hz Power
SN4655/3BISGS/EUI Smartnode 3 BRI VoIP IAD - 1 Fast Ethernet, 4 VoIP Call; Passthrough Relay; G.SHDSL.bis interface, H.323 and SIP, External 100-250VAC 50/60Hz Power, High Precision 5ppm clock source.
SN4658/5BISGS/EUI Smartnode 5 BRI VoIP IAD - 1 Fast Ethernet, 8 VoIP Call; Passthrough Relay; G.SHDSL.bis interface, H.323 and SIP, External 100-250VAC 50/60Hz Power
SN4659/5BISGS/EUI Smartnode 5 BRI VoIP IAD - 1 Fast Ethernet, 8 VoIP Call; Passthrough Relay; G.SHDSL.bis interface, H.323 and SIP, External 100-250VAC 50/60Hz Power, High Precision 5ppm clock source.
