Communicate over existing telephone lines or other twisted pair media
-
Connect twisted pair using RJ-45 or terminal block
-
Distances up to 2,230 feet (680 meters) over Cat5 cable

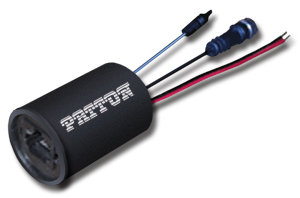

Patton’s CCTV Pass-Thru Balun allows video, 2-wire pan/tilt/zoom (PTZ) control and remote power to be transmitted via one 4-pair Cat5 cable eliminating the need to install multiple cables in the CCTV security and surveillance environment. The pass-thru balun may be used in pairs or in conjunction with standard twisted pair cross-connect devices and other Patton CCTV baluns.
UTP: 24 gauge or lower, twisted pair
Impedance: 100 Ohm at 1 MHz
Max. Capacitance: 20 pf/ft
Attenuation: 6.6 dv/1000 ft @ 1 MHz
BNC: Impedance: 75 Ohm @ 1 MHz (RG-59)
Bandwidth: Video DC to 8 MHz
Maximum Input: 1.1 Vp-p
Impedance: 75 to 100 Ohm
Insertion Loss: Max 2 dB per pair over frequency range from DC to 8 MHz
Return Loss: Greater than 15 dB over the frequency range from DC to 8 MHz
Common mode rejection: Greater than 40 dB at 8 MHz
Max. Distance: 24VAC via three pairs with 10% voltage drop at camera
5VA: 519 feet (170 meters)
10VA: 258 feet (85 meters)
20VA: 130 feet (43 meters)
30VA: 86 feet (28 meters)
Max Input Voltage: 50V (AC RMS/DC)
Max Current Rating: 4.5A (AC RMS/DC)
Active Pins:
Model 320: 8+ 7- (video), 1 2 3 4 5 6 (power)
Model 321: 8+ 7- (video), 1 2 3 6 (power), 4, 5 (data, PTZ control)
Model 322: 8+ 7- (video), 4 5 3 6 (data, speed dome)
|
|
| Ordering Information |
Email: sales@patton.com Tel: +1 301-975-1000 |
|
320A
|
CCTV BALUN RJ45 POWER THRU TYPE MALE NO DC POWER PLUG OR JACK; WIRING 8+/7- (VIDEO), 1,3,5+/2,4,6- (POWER)
|
|
320J
|
CCTV BALUN RJ45 POWERTHRU MALE W/DC POWER JACK; WIRING 8+/7- (VIDEO); 1,3,5/2,46- (POWER)
|
|
320P
|
CCTV BALUN RJ45 POWER THRU TYPE MALE W/DC POWER PLUG; WIRING 8+/7- (VIDEO), 1,3,5+/2,4,6- (POWER)
|
|
321J
|
CCTV BALUN RJ45 POWERTHRU MALE W/DC POWER JACK; WIRING 8+/7- (VIDEO); 1,3+2,6- (POWER); 4+/5- (DATA, PTZ CONTROL)
|
|
321P
|
CCTV BALUN RJ45 POWERTHRU MALE W/DC POWER PLUG; WIRING 8+/7- (VIDEO); 1,3+2,6- (POWER); 4+/5- (DATA, PTZ CONTROL)
|
|
322
|
CCTV BALUN RJ45 POWERTHRU MALE W/O DC POWER JACK; WIRING 8+/7- (VIDEO), 4,6+/3,5- (DATA,SPEED DOME)
|
|
