- Compact, reliable stand-alone gateway for VoIP systems—Connects an IP PBX or other VoIP systems to the ISDN PSTN, offering 2 BRI TE ports and 4 simultaneous voice or fax calls.
- Full SIP and T.38 support—Supports the complete range of industry standard VoIP: SIP, T.38 fax, fax and modem bypass, DTMF relay. Codecs G.729, G.723 etc.
- Transparent Telephony Features—Preserves ISDN features like caller ID and name (CLIP/CLIR), call transfer, hold, waiting, AOC. Supports DID and MSN lines in all major countries as well as complex numbering plan manipulations.
- Outstanding Interoperability—Interoperable for voice and T.38 fax with 3CX, Asterisk™, PingTel™ and other leading IP PBX systems.

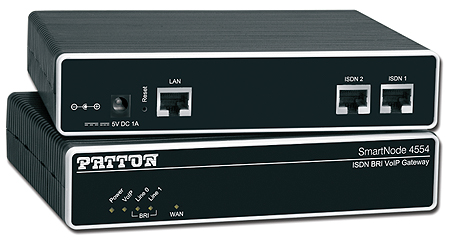

The SmartNode 4554 ISDN BRI PSTN Gateway converts up to four simultaneous phone or fax calls from SIP or H.323 to BRI ISDN. It is a compact, reliable stand-alone VoIP gateway for IP-based voice systems which matches up to ISDN standards in terms of performance and quality.
Compared to PC-based solutions that combine IP PBX and a PCI BRI card, the SN4554 has several advantages: No need to install additional drivers or software, new services can be installed without downtime, several SN4554 can be combined and serve as redundant cluster, no ventilation or hard disk required, scaleable without limitation by the amount of PCI card slots available. Also, your system administrators don't have to learn ISDN, as industry standard protocols like SIP or H.323 do the job of connecting the PSTN to your voice system.
The SN4554 perfectly integrates in today's IP PBX systems supporting their advanced functionality, while preserving the majority of ISDN comfort features. Patton, as a leader in ISDN-VoIP technology, has integrated the following ISDN specific features into the SmartNode 4554: Advice of Charge (AOC), Explicit Call Transfer (ECT), CLIP, CLIR, 64k transparent data calls, support for both MSN and DID lines, overlap dialing, call waiting, call hold.
| WAN Connectivity |
• 10/100Base-T Ethernet WAN
• Auto-MDI-X
• DHCP Client
• PPPoE Client (multi-session)
• SNTP
• IP Multi-Netting |
| IP Quality of Service |
• IEEE 802.1p, TOS, DiffServ Labeling
• IEEE 802.1Q, VLAN Tag insertion/deletion 4,096 |
| Management |
• Web-based GUI
• Fully documented CLI
• Telnet and HTTP access
• TFTP configuration up- and download
• TFTP firmware upgrade
• SNMPv1 agent, MIB II and enterprise MIB
• Built-in diagnostic tools
• Auto-provisioning—configuration and firmware |
| Fax and Modem Support |
• T.38 fax over IP
• Fax relay and bypass
• Modem bypass |
|
ISDN Specification |
• 2 port Euro-ISDN BRI/So RJ-45, TE
• DSS-1, Q.921, Q.931
• Point-point & point-multipoint |
| Voice Signaling |
• SIPv2
• SIP call transfer, redirect
• Overlap or en-bloc dialing
• DTMF in-band & out-of-band
• Configurable call progress tones |
|
Fax and Modem Support |
• T.38 fax over IP
• Fax relay and bypass
• Modem bypass |
|
Call Routing & Services |
• Regular expression number matching
• Regular expression number manipulation
• Least Cost Routing
• Number blocking
• Short-Dialing
• Digit collection
• Distribution- & Hunt-Groups
• 2nd call offering |
|
Voice Processing |
• G.711_/A-law
• G.723.1 (5.3/6.3 kbps)
• G.729, G.729a, G.729ab (8 kbps)
• G.726 ADPCM (16 ,24, 32, 40 kbps)
• G.168 echo cancellation (25ms)
• Transparent ISDN data
• Silence suppression and comfort noise
• Adaptive and configurable dejitter buffer
• Configurable packet length |
| Power & Packaging |
• Dimensions: 4.2W x 1.5H x 5.0D in. (10.6W x 3.9H x 12.7D cm)
• Weight: < 15.9 oz (450 g)
• Power Consumption < 4W |
|
Environment |
• Temp.: 32–104°F (0–40°C)
• Humidity: up to 90% , non condensing |
| Compliance |
• FCC Part 15 Class A (US EMC)
• CE per RTTE 99/5/EC (EMC and LVD)
• Safety - EN60950
• TBR-3 (ISDN BRI/So) |
|
|
