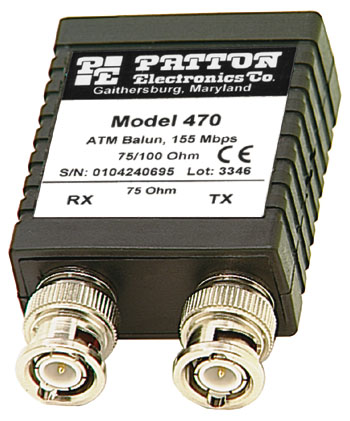

Model 470, 471, & 472
155-Mbps ATM Baluns Swap Coax for Twisted Pair
Match 75-Ohm Dual-Coax with a 100-, 120-, or 150-Ohm Twisted-Pair Line
|
- Support for Data Rates to 155Mbps.
- Bi-Directional Signal Conversion
- 75-Ohm Dual-Coax BNC (Female)
- Model 470 (100 Ohm) & Model 471 (120 Ohm) provide RJ-45 for twisted-pair; Model 472 (150 Ohm) provides IBM data connector on pigtail
These baluns enable you to match the connectors, impedance, and signal characteristics of a wide variety of connections. The Models 470 (100 Ohm) and 471 (120 Ohm) provide RJ-45 for twisted-pair. The Model 472 (150 Ohm), shown above, provides an IBM data connector on a pigtail.
|
|
|
|
| Ordering Information |
Email: sales@patton.com Tel: +1 301-975-1000 |
|
470
|
ATM BALUN 75/100 OHM
|
|
471
|
ATM BALUN 75/120 OHM
|
|
