- Up to 16 Ports per ForeFront Card—Get high density per card and lower your cost per port. Simply scale with more cards
- nx64 kpbs Speeds to 2.3 Mbps—Get speed and distance of up to 30,000 feet (9.4 km) with nx64 kbps (n=1..36) on each port
- Flexible WAN Egress—Your choice of 4/8/12/16 T1/E1 module, or use the STM-1 uplink for up to 63 E1s over fiber or copper
- Built-in TimeSlot DACS—Connect any-to-any mapping with its powerful built-in grooming capabilities.
- Complete Alarm Facilities—Configurable alarm reporting via remote SNMP traps, front panel LEDs, 3-contact relay, and NMS.
- SNMP/HTTP Network Management—Configure the Model 3096RC and the remote CPE modems from any location in the world.
DSL delivers the reach-and-range, but the infrastructures delivering those services have typically lacked integration, often requiring a rack full of specialized equipment. Now, Patton has combined G.SHDSL ports, DACS, and WAN functions into a powerful system operating on Patton's ForeFront Access Platform.

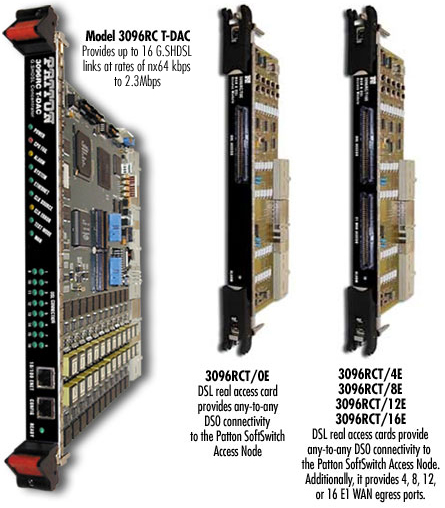

The Model 3096RC TDM-Digital Access Concentrator, or T-DAC, links 8, 12, or 16 G.SHDSL circuits to multiple WAN uplink modules and offers completely flexible any-to-any grooming. Each 2.3-Mbps port offers user-selectable nx64 (n=1..36) data rates. With its built-in cross-connect, each data channel, or channel group, can be multiplexed onto any uplink or DSL port-even to ports on other 3096RC blades in the same chassis. The entire system is easily manageable through an integrated SNMP/HTTP-based NMS.
Use the T-DAC in any Patton 2U, 4U, or 9U Forefront Access System and scale-up density while reducing costs! Fully redundant power and integrated cooling enable these lightweight chassis to grow while accepting new technologies.
Harness the explosive growth of DSL with a tightly integrated, cost-effective solution to aggregate high-speed traffic while gaining flexibility and protecting your investment. Choose the 3096RC for your next network rollout.
ForeFront G.SHDSL System Configurations
The ForeFront FullPipe-configured with 3096RC T-DACs-provides up to 96 G.SHDSL links in a 4U chassis. E1 or STM-1 interface options make data network integration a snap. Combined with Patton's 3086, 3088 or 3201 CPE, it provides the complete solution.
G.SHDSL G.991.2 ITU G.SHDSL Annex A and Annex B G.994.1 G.hs nx64 kbps data rates up to 2.3 Mpbs (n-1..36) over 2 wires Full duplex, symmetrical TC-PAM encoding
G.SHDSL Distance: 30,000 feet (9.4 Km) at 192 kbps, 16,500 feet (5 Km) at 2.3 Mbps
G.SHDSL connection: Up to 16 ports presented on a 64-pin Telco connector
Transition Modules: Uplink module options include 4, 8, 12, or 16 T1/E1 ports
Ethernet Port:Single 10/100Base-T (RJ-45 connector)
Patton 3088, 3201, 3086.
WAN Clocking: Internal, Network (from a T1/E1 port), Building Integrated Timing System (BITS), or via the system back-plane from any other card.
G.SHDSL Clocking: Provides clocking to the remote NTUs/Modems
Front Panel Indicators: LEDs for power, CPU, system, Ethernet, clock source, alarms, test mode, DSL, and WAN
Management Services: HTTP, SNMP, TELNET Ethernet, RS-232 Console Port, SYSLOG Client, Remote Software Upgrade via FTP.
Alarm Reporting: Configurable alarms; Remote SNMP Traps; Front Panel LEDs; 3-Contact Relay (3-pin terminal block)
Compliance: Safety: UL/CSA per UL1950 (METS) Canadian cMET and CS-03. EMC Directive 89/336/EEC, Low-Voltage Directive 73/23/EEC (EN 60950), FCC Part 15, CE Mark, CTR12, CTR13 FCC Part 68.
Environment: Operating temperature: 14 to 140°F (-10 to 60°C); Humidity: 5 to 90%, non-condensing
Dimensions: Front blade:0.75 H x 10.5 W x 6.3 D in. (1.9 H x 26.7 W x 16.0 D cm)
Rear blade:0.75 H x 10.5 W x 3.15 D in. (1.9 H x 26.7 W x 8.0 D cm)
|
|
| Ordering Information |
Email: sales@patton.com Tel: +1 301-975-1000 |
|
3096RC
|
T-DACS,FRONT CARD,16 G.SHDSL
|
|
3096RC/12G
|
T-DACS,FRONT CARD,12 G.SHDSL
|
|
3096RC/12G12E
|
T-DACS,12 G.SHDSL, 12 T1/E1
|
|
3096RC/16G0E
|
T-DACS,16 G.SHDSL & 0 T1/E1
|
|
3096RC/16G16E
|
T-DACS,16 G.SHDSL, 16 T1/E1
|
|
3096RC/16G4E
|
T-DACS,16 G.SHDSL & 4 T1/E1
|
|
3096RC/16G8E
|
T-DACS,16 G.SHDSL & 8 T1/E1
|
|
3096RC/8G
|
T-DACS,FRONT CARD,8 G.SHDSL
|
|
3096RCT/0E
|
T-DACS,REAR TRANSITION, MDL, 0E1
|
|
3096RCT/12E
|
T-DACS,REAR TRANSITION, MDL, 12E1
|
|
3096RCT/16E
|
T-DACS,REAR TRANSITION, MDL, 16E1
|
|
3096RCT/4E
|
T-DACS,REAR TRANSITION, MDL, 4E1
|
|
3096RCT/8E
|
T-DACS,REAR TRANSITION, MDL, 8E1
|
|
