- Connect to Any Terminal Interface—Smooth clock V.35, X.21, EIA-530, and 10Base-T Ethernet interfaces
- Standalone or Rack Solutions—Available in desktop and high density SNMP managed racks-mounted (2701RC) versions
- Connect at Any Speed—Select nx64 data channels, or 2-Mbps Clear Channel
- Supports 75- or 120-Ohm E1 Lines—Get both BNC and RJ-48C connectors on X.21 and Ethernet versions
- Eliminate Routers—Bridge Ethernet across the WAN using industry standard PPP/BCP
- Power It Anywhere—Universal input AC (100–240 VAC) and -48 VDC power supply options

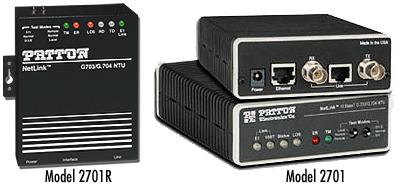

One of the smallest and most economical NTUs available, the Model 2701 is designed with features usually found in more expensive units: flexible clocking modes, AMI/HDB3 coding, V.52/V.54 diagnostics, and user selectable
nx64 kbps data rates.
The Model 2701 series terminates E1/FE1 services for all nx64 kbps to 2.048 Mbps rates and connects to a router, FRAD, CODEC, or LAN with V.35, X.21, EIA-530, or 10Base-T interfaces. Front panel LEDs and switches allow for instant diagnostics and service monitoring. Convenient DIP switches support quick and concise configuration of your E1 termination. AC or DC power options make installing the Model 2701 into your network infrastructure a snap. Built for universal mounting, the Model 2701 comes in desktop, wall mount, DIN rail mount (optional kit), and telco rack mount configurations. You can now take your E1 anywhere!
The wide variety of features, compact size, and low price make Patton’s E1 NTUs the right solution for your next network challenge.
Data Rate: Smooth Clock 2.048 Mbps
Network Connector: RJ-48C (all versions); Dual Coaxial (X.21 and Ethernet)
DTE Interface: EIA-530, X.21/V.11, V.35, or 10Base-T Ethernet
Line Coding: AMI or HDB3
Line Framing: G.703 (unframed) or G.704/G.732 (framed)
Clocking: Internal, External or Receive Recover
DTE Rates: nx64kbps (EIA-530, X.21/V.11, V.35); 10Mbps (10Base-T)
Indicators: E1 Link Status, TD, RD, Loss of Sync, Error, Test Mode, Ethernet Status (on 10Base-T Version)
Diagnostics: Local/Remote Loop, 511
Line Isolation: 1500VRMS
Compliance: CE Mark, G.703, G.704, G.723, G.832, CTR-12 and CTR-13
Temperature: 32° to 122°F (0° to 50°C)
Rel. Humidity: 5 to 90% non-condensing
Dimensions: Standalone - 5.84L x 4.16W x 1.51H in (14.84L x 10.6W x 3.84H cm); Closet Mount - 5.4375 W x 5.75 H x 1.75 D
Weight: 2.225 lbs (1.02 Kg)
|
|
| Ordering Information |
Email: sales@patton.com Tel: +1 301-975-1000 |
|
2701/B/48
|
G.703 NTU, W/ RS-530 INTERFACE; 48VDC
|
|
2701/B/UI
|
G.703 NTU, W/ RS-530 INTERFACE; 120-220 VAC
|
|
2701/C/48
|
G.703 NTU, W/ V.35 INTERFACE; 48 VDC
|
|
2701/C/UI
|
G.703 NTU, W/ V.35 INTERFACE; External 120-220VAC
|
|
2701/D/48
|
G.703 NTU, W/ X.21 INTERFACE; 48VDC
|
|
2701/D/UI
|
G.703 NTU, W/ X.21 INTERFACE; 120-220 VAC
|
|
2701R/C/EUI
|
Ruggedized G.703/G.704 NTU w/ V.35 DTE Interface; External 100-240VAC
|
|
2701R/D/EUI
|
Ruggedized G.703/G.704 NTU w/ X.21 DTE Interface; External 100-240VAC
|
|
