| Patton’s Model 3200 offers the reliability, reach, and rates essential for today’s high speed, broadband Ethernet first-mile services and remote office connectivity. |
|
| Features |
Overview |
Applications |
Highlights |
Specs |
Ordering |
Related Info |
|
| |
The Patton RocketLink™ Model 3200 simplifies and provides cost effective network extension by utilizing pre-existing twisted pair infrastructure enables service providers to offer broadband or data backhaul services to businesses, governments, and various institutions over existing last-mile, copper infrastructure. Today, more than ever, operators are finding the business case for leveraging their existing copper networks to be highly attractive from an ROI and initial investment perspective over fiber roll-outs.
The Model 3200 is Ethernet First Mile (EFM) compliant. EFM—also called pure Ethernet—lowers OPEX and CAPEX by resolving one of the biggest deficiencies in carrier networks, the lack of interworking arrangements among different protocols such as Frame Relay, TDM, ATM, and of course DSL. Using EFM allows for more efficient and trouble-free networking environments. Service providers can concentrate on providing differentiated services instead of concentrating on resolving their latest issue of protocol conversions.

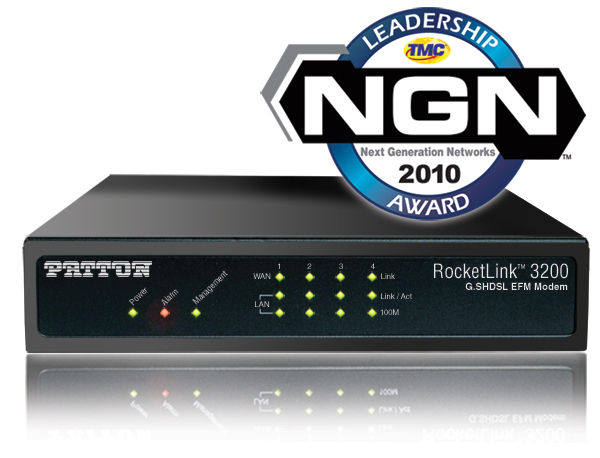

Patton’s 3200 G.SHDSL.bis modem incorporates next-generation SHDSL technology with multi-pair bonding to offer unmatched rate, reach and reliable Ethernet connectivity, providing symmetrical 22.8 Mbps of bandwidth over 4-pair (8-wire) at distances up to 1.8 miles (2.9 km). The RocketLink 3200 comes standard with a 4-port fast Ethernet switch with full QoS and CoS features. VLAN (802.1q) capabilities include 4 levels of priorities, traffic flow control, and rate control. These traffic management and QoS features enable service providers to provision for differentiated services and/or SLAs.
The RocketLink 3200 is a complete, managed, end-to-end system when used either back-to-back or with a 3rd party ipDSLAM. The 3200 is the clear and easy choice for mission-critical networking.
Distance Chart 3200 Series (Per Wire Pair) |
DSL Line Rate
|
26 AWG/0.4mm
|
|
22 AWG/0.65mm |
| N
|
kbps
|
kft
|
km
|
kft
|
km
|
kft
|
km
|
| 3 |
192 |
21.5 |
6.6 |
27.2 |
8.3 |
34.8 |
10.6 |
| 4 |
256 |
19.5 |
5.9 |
24.7 |
7.5 |
31.5 |
9.6 |
| 8 |
512 |
17.5 |
5.3 |
22.1 |
6.7 |
28.3 |
8.6 |
| 12 |
768 |
16.5 |
5 |
20.9 |
6.4 |
26.7 |
8.1 |
| 16 |
1024 |
16 |
4.9 |
20.2 |
6.2 |
25.9 |
7.9 |
| 20 |
1280 |
15 |
4.6 |
19 |
5.8 |
24.3 |
7.4 |
| 24 |
1536 |
14.5 |
4.4 |
18.3 |
5.6 |
23.5 |
7.2 |
| 32 |
2048 |
13.5 |
4.1 |
17.1 |
5.2 |
21.8 |
6.6 |
| 36 |
2304 |
13 |
4 |
16.4 |
5 |
21 |
6.4 |
| 60 |
3840 |
10 |
3 |
12.6 |
3.8 |
16.2 |
4.9 |
| 72 |
4608 |
9.5 |
2.9 |
12 |
3.7 |
15.4 |
4.7 |
| 89 |
5696 |
8.5 |
2.6 |
10.8 |
3.3 |
13.8 |
4.2 |
Distance Chart Model 3202/4W (4 Wire/2 Pair)
|
DSL Line Rate |
26 AWG/0.4mm |
|
22 AWG/0.65mm |
| N
|
kbps
|
kft
|
km
|
kft
|
km
|
kft
|
km
|
| 6 |
512 |
19.5 |
5.9 |
24.7 |
7.5 |
31.5 |
9.6 |
8 |
512 |
19.5 |
5.9 |
24.7 |
7.5 |
31.5 |
9.6 |
16 |
1024 |
17.5 |
5.3 |
22.1 |
6.7 |
28.3 |
8.6 |
24 |
1536 |
16.5 |
5 |
20.9 |
6.4 |
26.7 |
8.1 |
32 |
2048 |
16 |
4.9 |
20.2 |
6.2 |
25.9 |
7.9 |
40 |
2560 |
15 |
4.6 |
19 |
5.8 |
24.3 |
7.4 |
48 |
3072 |
14.5 |
4.4 |
18.3 |
5.6 |
23.5 |
7.2 |
64 |
4096 |
13.5 |
4.1 |
17.1 |
5.2 |
21.8 |
6.6 |
72 |
4608 |
13 |
4 |
16.4 |
5 |
21 |
6.4 |
120 |
7680 |
10 |
3 |
12.6 |
3.8 |
16.2 |
4.9 |
144 |
9216 |
9.5 |
2.9 |
12 |
3.7 |
15.4 |
4.7 |
178 |
11392 |
8.5 |
2.6 |
10.8 |
3.3 |
13.8 |
4.2 |
Distance Chart Model 3202/8W (8 Wire/4 Pair) |
DSL Line Rate
|
26 AWG/0.4mm
|
|
22 AWG/0.65mm |
| N
|
kbps
|
kft
|
km
|
kft
|
km
|
kft
|
km
|
| 12 |
768 |
21.5 |
6.6 |
27.2 |
8.3 |
34.8 |
10.6 |
| 16 |
1024 |
19.5 |
5.9 |
24.7 |
7.5 |
31.5 |
9.6 |
| 32 |
2048 |
17.5 |
5.3 |
22.1 |
6.7 |
28.3 |
8.6 |
| 48 |
3072 |
16.5 |
5 |
20.9 |
6.4 |
26.7 |
8.1 |
| 64 |
4096 |
16 |
4.9 |
20.2 |
6.2 |
25.9 |
7.9 |
| 80 |
5120 |
15 |
4.6 |
19 |
5.8 |
24.3 |
7.4 |
| 96 |
6144 |
14.5 |
4.4 |
18.3 |
5.6 |
23.5 |
7.2 |
| 128 |
8192 |
13.5 |
4.1 |
17.1 |
5.2 |
21.8 |
6.6 |
| 144 |
9216 |
13 |
4 |
16.4 |
5 |
21 |
6.4 |
| 240 |
15360 |
10 |
3 |
12.6 |
3.8 |
16.2 |
4.9 |
| 288 |
18432 |
9.5 |
2.9 |
12 |
3.7 |
15.4 |
4.7 |
| 356 |
22784 |
8.5 |
2.6 |
10.8 |
3.3 |
13.8 |
4.2 |
|
|
|
|
|
