Features
- Long-reach High Speed Ethernet Extension—Overcome the 328 ft (100 m) limitation of Ethernet with a full-duplex 12.5 Mbps link at distances up to 4,500 ft (1,372 m)
- Seamlessly Connect and Extend the LAN—802.3 10/100Base-T LAN connection via built-in shielded RJ-45 port
- Patton CopperLink 2-Wire Connection—Easy 2-wire CopperLink connection via built-in RJ-45 port or optional terminal block
- Dual Auto-sensing Full-Duplex Ethernet—Auto 10 or 100Base-T and full or half-duplex Ethernet operation
- Transparent LAN Bridging—Passes higher layer protocols and supports 802.1Q VLAN tagging
- Automatic Learning, Aging, and Filtering—Only allows packets with addresses outside the LAN to be forwarded
Overview
The Model 2158 offers one of the most efficient, reliable, and cost effective solutions for connecting peered 10/100Base-T Ethernet LANs; reaching remote PCs and equipment; or delivering last-mile ISP services—all at 12.5 Mbps!
The Model 2158’s compact size and connection options make installation easy. The 10/100Base-T Ethernet port is equipped with a shielded RJ-45 jack for connection to an Ethernet hub/switch, PC, or network-enabled device. The CopperLink port is equipped with an RJ-45 jack (optional terminal block is also available) for easy connection to the
CopperLink Extenders. For convenient installation, the Model 2158 auto-senses and configures for 10Base-T or 100Base-T—as well as full or half-duplex—operation.
The CopperLink Ethernet Extender, providing high speed Ethernet extension at 12.5 Mbps, is the ideal product for educational facilities, office buildings, multi-dwelling units, industrial complexes, government agencies, and military installations. If you want to take your network connections farther and faster over existing copper, Patton’s CopperLink Ethernet Extenders are the perfect choice.
|
CopperLink™ Copper Ethernet Extenders
|
Take your network connections faster and farther over existing voice-grade wire with Patton CopperLink™ Ethernet Extenders!
|
Max. Distance
|
Max. Speed
|
Distance at Max. Speed
|
CopperLink™ Model
|
|
1 mile
(1.6 km)
|
50 Mbps
|
800 feet
(243.9 m)
|
|
|
1.1 miles
(1.8 km)
|
16.6 Mbps
|
3,125 feet
(952.5 m)
|
|
|
0.75 miles
(1.2 km)
|
12 Mbps
|
4,000 feet
(1219.2 m)
|
Model 2158A
|
|
5.7 miles
(9.2 km)
|
4.6 Mbps
|
2.0 miles
(3.2 km)
|
|
|
5.7 miles
(9.2 km)
|
2.3 Mbps
|
3.1 miles
(5 km)
|
|
|
5 miles
(8 km)
|
144 kbps
|
5 miles
(8 km)
|
|
Applications

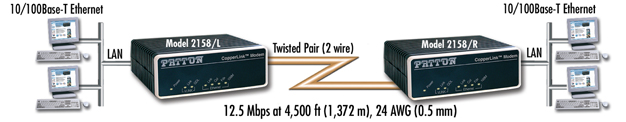

Ethernet Extension Application
Used in pairs, the Model 2158 establishes a high speed 12.5 Mbps communications link inter-connecting two geographically separated LANs. Operation is simple: packets destined for the remote LAN are sent transparently, at full line rate, to the peered LAN.
Patton’s CopperLink Ethernet Extenders are a clearly superior and cost-effective alternative to expensive fiber and media converters, or LAN-grade cable and repeaters.
Specifications
| CopperLink interface |
RJ-45 (pin 4 = tip; pin 5 = ring) and optional two-position removable terminal block (supports 19–26 AWG or 0.9–0.4 mm wire) |
| Ethernet Interface |
8-position shielded RJ45. Auto-sensing 10/100Base-T with half or full-duplex operation |
| Protocol |
Transparent to high layer protocol. Supports 802.1Q VLAN tagging |
| Surge suppression |
CopperLink maximum current surge: 20 kA (8/20 ms) gas tube |
| Front panel indicators |
Power, CopperLink Link and QOL (quality of link), Ethernet Link and Activity status |
| Power supply |
External AC and DC options: AC—120 VAC, 220 VAC,
and universal input (UI)—100/240 VAC, or DC—48
VDC, -24 VDC, and -12 VDC |
| Compliance |
FCC Part 15 Class A; EMC Directive 89/336/EEC, Low
Voltage Directive 73/23/EEC; CE Mark |
| Environment |
Temperature: 32–104°F (0–40°C); Humidity: Up to 90%,
non-condensing |
| Dimensions |
Standalone: 1.5H x 4.13W x 3.75D in. (3.81H x 10.5W x 9.53D cm); Rack card: 3.0H x 0.83W x 7.84D in. (7.6H x 2.1W x 19.9D cm) Standalone: 0.4 lbs (0.18 kg) without power supply; Rack card: 0.3 lbs (0.14 kg) with rear card |
Ordering Information
| Model # |
Description |
| 2158A/E-2PK |
CopperLink 12.5 Mbps Ethernet Extender Kit (1 Local Unit and 1 Remote Unit); No power supply |
| 2158A/EUI-2PK |
CopperLink 12.5 Mbps Ethernet Extender Kit (1 Local Unit and 1 Remote Unit); 100-240VAC |
|
Support Services
| Item Number |
Item Description |
Price |
| SVC-P-7x24-L |
Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription over 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-7x24-M |
Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription 1,000 to 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-7x24-S |
Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription up to 1,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-SH-L |
Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription over 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-SH-M |
Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription 1,000 to 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-SH-S |
Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription up to 1,000 units deployed. |
Contact us for availability and pricing. |
| SVC-ENHWAR1 |
1 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR2 |
2 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR3 |
3 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR4 |
4 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR5 |
5 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR2 |
2 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR3 |
3 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR4 |
4 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR5 |
5 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-TECH-HOUR |
Network technician hour rate for Pre-config services, after hours support etc? |
Contact us for availability and pricing. |
