Patton Electroncis
Where to Buy eNewsletter
Login   |     Language


Products  >  Model 3086FR
Model 3086FR G.SHDSL FR/PPP Over ATM IAD

Combines IP routing, Frame Relay to ATM conversion, and ETSI/ITU standard G.SHDSL technology in a compact, high performance subscriber unit for true multi-service, revenue generating, DSL deployment.

Login
Contact Us
Call Us
USA: +1 301 975 1000
Europe: +41 31 985 2525
Email Us
USA: sales@patton.com
Europe: support@patton.com
Have Us Contact You
or
 Connect with us
Twitter Linkedin Facebook Youtube

View All

Features

Overview

Applications

Specs

Ordering

Services



Features
--Image: Made in USA --
  • FR to ATM Conversion—Connect FRADS, routers or any frame relay devices to high speed ATM core networks using inexpensive DSLAM ports
  • Built-in Ethernet/IP Router Standard—With Patton’s FlexIP architecture, route from any to any port using FR, PPP, Ethernet, and ATM
  • Firewall—The 3086FR comes standard with Intrusion Detection (IDS), Access Control Lists (ACL), IP & port filtering and NATz/PAT
  • Flexible Interface options—V.35, X.21, or T1/E1 fulfills most interconnection needs. 10/100 Ethernet comes standard on all units
  • Interoperable with Third-Party DSLAMs—Take advantage of Patton feature richness to deploy multiple revenue generating services over any third-party DSLAM
  • WWW/SNMP Manageable—Built-in VT-100 console port makes setup a snap, and you can use the embedded HTTP/SNMP agent to manage the Model 3086FR from anywhere in the world
Overview
The Patton Model 3086FR IAD combines the latest advances in high speed DSL technology, G.SHDSL, with a potent IP, FR, PPP and ATM core facilitating seamless connection of legacy frame relay devices as well as routed IP services to high speed ATM networks.

Based on the European Telecommunications Standardization Institute (ETSI) and International Telecommunications Union (ITU) G.SHDSL G.991.2 standard, the Patton 3086FR enables 2.3 Mbps speeds at nx64 (n=1..36) over a single pair of wires. The 3086FR boasts a dual subscriber interface with a standard 10/100 Ethernet and a choice of Synchronous-Serial V.35, X.21 or T1/E1 ports. Together, these interfaces can be concurrently configured for FR-to-ATM conversion as well as IP routing or Ethernet bridging—all in one compact package.

FR data from the serial interface is converted to ATM according to FRF.5 or FRF.8 Interoperability Agreements. The IP services module routes data between any port or interface, including the G.SHDSL interface using Frame Relay, PPP, Ethernet, or ATM. All protocols and ports operate simultaneously. The 3086FR connects seamlessly and transparently to any third party DSLAM or it can be configured to work in back-to-back applications.

The 3086FR boasts easy installation with console, Telnet, and WWW/SNMP management. It provides bridging and routing functionality, along with advanced IP features such as DHCP and Firewall (IDS, Filtering, NAT). As part of Patton’s family of IpDSL products, the Model 3086FR offers a complete, managed, end-to-end system.


Applications
FR and IP traffic over ATM
The 3086FR converts FR from the serial port to ATM over the DSL link making the DSLAM/DSL CPE network transparent to the frame relay service being offered. Additionally, the 3086FR provides a full fledged routed or bridged connection between the LAN, through the 10/100 Ethernet port, and the supporting DSLAM/ATM network.

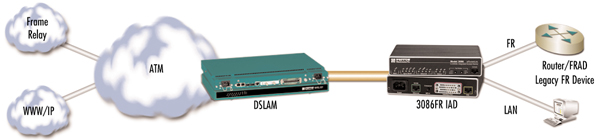

In the scenario below, the 3086FR located at a branch office takes FR traffic, via its serial port, and converts it to ATM cells – in this case, the conversion is done using FRF.8. Simultaneously, the 3086FR routes or bridges traffic from the Ethernet LAN and encapsulates into ATM cells. Traffic from both the Serial and Ethernet ports are concurrently sent over the DSL link using separate VPI/VCIs. This allows the core ATM network to switch the IP bearing traffic to the Internet via a core router – even through an authentication server since PPPoE and PPPoA is supported. The frame relay traffic is switched by the ATM network to a separate ATM or frame relay termination point.
Model 3086FR application diagram


Ordering
# Model # Description Availability
1 3086FR/RIC/48 G.SHDSL FRIAD W/V.35(M34)+ETH,48VDC Contact us for Availability
2 3086FR/RIC/E G.S IAD V35/M34+ETH FRF-5&FRF-8, EXT PWR; NO PS Contact us for Availability

 Accessories
3 3086FR/RIC/EUI G.S IAD V35/M34+ETH; FRF-5&FRF-8, EXT 120-220 VAC PWR SUPPLY Contact us for Availability

 Accessories
4 3086FR/RIC/UI G.S IAD V35/M34+ETH FRF-5&FRF-8, INT PWR 120-220 VAC Contact us for Availability

 Accessories
5 3086FR/RICA/EUI G.S IAD V35/DB25+ETH FRF-5&FRF-8; EXT PWR 120-220 VAC Contact us for Availability

 Accessories
6 3086FR/RID/EUI G.S IAD X.21/DB15+ETH, FRF-5&FRF-8; EXT PWR 120-220 VAC Contact us for Availability

 Accessories
7 3086FR/RID/UI G.S IAD X.21/DB15+ETH, FRF-5&FRF-8, ; INT PWR 120-220 VAC End of Life-Notice

 Accessories
8 3086FR/RIK/48 G.SHDSL IAD; G.703/G.704 + ETH; FRF-5&FRF-8; EXT PWR 48VDC (3rd party compatible) Contact us for Availability
9 3086FR/RIK/E48 G.SHDSL IAD; G.703/G.704 + ETH; FRF-5&FRF-8;48V EXT PWR Contact us for Availability
10 3086FR/RIK/UI G.SHDSL IAD; G.703/G.704 + ETH; FRF-5&FRF-8; INT PWR 120-220 VAC (3rd party compatible) Contact us for Availability

 Accessories
11 3086FR/RIT/48 G.SHDSL IAD; T1 + ETH; FRF-5&FRF-8; EXT PWR 48VDC (3rd party compatible) Contact us for Availability
12 3086FR/RIT/EUI G.SHDSL IAD; T1 + ETH; FRF-5&FRF-8; EXT PWR, 120-220 VAC (3rd party compatible) Contact us for Availability

 Accessories
13 3086FR/RIT/UI G.SHDSL IAD; T1 + ETH; FRF-5&FRF-8; INT PWR, 120-220 VAC (3rd party compatible) End of Life-Notice

 Accessories






Product Lines
> Voice over IP (VoIP) Gateways
> Ethernet Extenders
> RAS & DSLAMs
> Balancing & Bonding Wireless Routers
> DSL IAD, E1 NTUs & WAN Routers
> Line Drivers, Interface Converters, Baluns & Surge Protectors
> Special Projects
> All Products

Library
> eNewsletters
> Press Room
> Success Stories
> White Papers
> Manuals
> Product & Solutions Guides
> Datasheets
> Tech Notes
> Get Our Catalog
> Marketing Resources

Services & Support
> Upgrades
> Repairs & Returns
> Services
> Help Desk
> Training & Seminars
> Knowledgebase
> Enhanced Warranty

Company
> Contact Us
> Upcoming Events
> About Patton
> Management Team
> Culture
> Careers
> Environment
> Capabilities
> Social
> Partners & Programs
> Send Us Your Feedback

Global Sites
English Language Spanish Language French Language

German Language Italian Language Polish Language


Copyright © 2001–2015 Patton Electronics Co., All Rights Reserved.
|  Sitemap  |  Legal  |  Privacy Policy  |  Disclaimer  |    Twitter  Facebook  YouTube  LinkedIn  RSS
