Model 2616RC This legacy product is not recommended for new installations. There is no replacement for these products.
This legacy product is not recommended for new installations. There is no replacement for these products.

View All

Features

Overview

Applications

Specs

Ordering

Services



Features
--Image: Made in USA --
  • Clock Synchronization—Any port can serve as master or secondary clock source for the entire ForeFront chassis
  • Nx64 Speeds from 64 to 2048 kbps—Each port is independently selectable for any required bandwidth including clear channel (32 time slots)
  • Independent T1/E1 Port Mapping—Ports can be configured independently, supporting T1 & E1 ports on the same card
  • Port Fallback—A fallback port can be configured for any port to ensure non-stop switching of data
  • Fault-Tolerant Processing—Each module independently sustains switching with its own built-in processor for non-stop operation
  • SNMP/HTTP Management—SNMP/HTTP manageable from anywhere in the world including attached CPE units
  • Complete Alarm Facilities—Configurable alarm reporting with SNMP Traps, front panel LEDs, 3-contact relay, and syslog messages
Overview

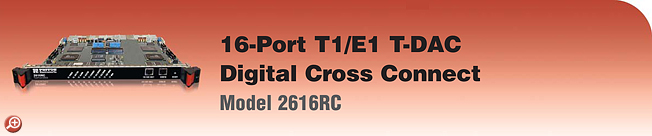

The Model 2616RC TDM-Digital Access Concentrator (T-DAC) card provides affordable, high density access concentration and cross connection of DS0 time slots for most network applications. Patton combines 4, 8, 12, or 16 software-programmable T1/E1 ports that have integrated CSU/DSUs with a fully non-blocking, any-to-any DS0 switching fabric for implementing powerful multi-module systems in Patton’s ForeFront Access Platforms.

Each T1/E1 port of the Model 2616RC supports user-selectable data rates from 64 to 2048 kbps. With a built-in cross connect, each data channel or channel group can be multiplexed onto any other T1/E1 port--even ports on other T-DACS (such as the Patton Model 3196 or 3096) in the same chassis.

Support for HDB3 and AMI line coding on E1 (G.703/G.704) ports and AMI and B8ZS line coding on T1 ports makes the 2616RC one of the most flexible cross connects available.

Every 2616RC T-DAC has its own processing capability, ensuring continuous operation and manageability even in the presence of multiple network outages. Support for primary and secondary system clock sources guarantees continuous synchronization with the other modules as well as the TDM network. To add to fault tolerance and reliability, fallback ports are configurable for any port to ensure that if the attached circuit fails, channels being carried on the failed circuit can be re-routed to another port. An integrated SNMP/HTTP-based management system allows for easy configuration via any SNMP-enabled NMS or via a web browser.


Applications

Streamline, optimize, and save!

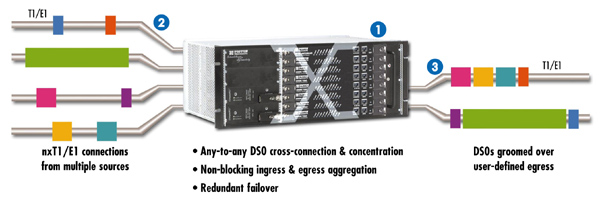

Using the flexible 2616RC’s DS0 switching matrix, Service Providers can easily consolidate, manage, and provision up to 96 T1/E1 links from a single 6476 (4U) chassis. Uplink access costs are significantly reduced by grooming and aggregating DS0 traffic from many partially used T1/E1 lines into selected outgoing T1/E1 or STM-1 links.
Each 2616RC comes with 16 T1/E1 ports; you select which timeslots connect to downstream or upstream lines.
Based on customer requirements, assign nx64 kbps timeslots to downstream T1/E1 links, i.e 256 kbps (4 DS0s), 512 kbps (8 DS0s), 1024 kbps (16 DS0s), etc.

Use the 2616RC GUI to map DS0s from downstream to upstream lines. For example:
• 4 DS0s from port 1
• 8 DS0s from port 2
• 16 DS0s from port 3
• 3 DS0s from port 4
• All mapped to upstream E1 port 5 (31 DS0s).



Specifications
WAN Ports: 4, 8, 12, or 16 configurable WAN ports: T1 (AMI/B8ZS line coding) or E1 (HDB3/AMI line coding), G.703, G.704, G.723
System Clocking: Internal oscillator, Network (from T1/E1 Wan port), Building Integrated Timing System, or via the system back-plane from any other card.
Ethernet Ports: 10/100BaseT (RJ-45 connector); auto-negotiating; half or full duplex operation for management
Front Panel Indicators
: Indicators LEDs for power, CPU, system, Ethernet, External clock, Test mode, and WAN ports frame and error status
Management Services: HTTP, SNMP, Telnet Ethernet, RS-232 Console Port, SYSLOG Client, Software upgrade via FTP
Alarm Reporting: Configurable alarms; Remote SNMP Traps; Front Panel LEDs
High Speed Midplane
: Redundant, high speed, packet switched bus (PSB) and TDM bus supporting 4096 DS0s
Compliance: Safety: UL/CSA per UL1950 Canadian per CS-03. RTTE Directive 99/5/EC, Environment FCC Part 15,CE Mark, CTR12, CTR13, FCC Part 68
Environment:
Operating temperature: 0–40°C (32–104 °F)
Humidity: 5–90% non-condensing

Dimensions:
Front blade: 0.75 H x 10.5 W x 6.3 D in. (1.9 H x 26.7 W x 16.0 D cm)
Rear blade: 0.75 H x 10.5 W x 3.15 D in. (1.9 H x 26.7 W x 8.0 D cm)


Ordering
# Model # Description Availability
1 2616RC T-DACS,FRONT CARD, T1/E1 ONLY Contact us for Availability
2 2616RC/12E 12 port T1/E1 ForeFront T-DACS Contact us for Availability

 Accessories
3 2616RC/16E 16 port T1/E1 ForeFront T-DACS Contact us for Availability

 Accessories
4 2616RC/4E 4 port T1/E1 ForeFront T-DACS Contact us for Availability

 Accessories
5 2616RC/8E 8 port T1/E1 ForeFront T-DACS Contact us for Availability

 Accessories
