EnviroNET™ T1/E1 Transport Extenders T1/E1 Transport Extenders

Patton’s EnviroNET™ Extended Temperature T1/E1 Transport Extenders makes it easy to terminate a T1/E1 in a remote, environmentally exposed location.

Contact Us
Sales: sales@patton.com
Direct: +1 301 975 1000
Support: support@patton.com
Direct: +1 301 975 1007
Have Us Contact You
or
Login
 Connect with us
Twitter Linkedin Facebook Youtube

View All

Features

Overview

Applications

Specs

Ordering

Services



Features
--Image: Made in USA --
  • T1/E1 Port Extension—Extends T1/E1 and fractional T1/E1 circuits over twisted pair up to 8.5 km.
  • Extended Temperature -40 to 85°C—Operates in environments that do not have heating or cooling options
  • NEMA 4 Case—Protection against elements such as dirt, rain, sleet, snow, dust, and the external formation of ice on the enclosure
  • Configurable fractional rates—Increase the reach by configuring only the number of DS0s that are being used
  • Remotely Manageable—Console management of local and remote unit without needing a DSLAM or concentrator.
  • Made in the USA — This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Patton's American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.
Overview
EnviroNET™ T1/E1 Transport Extenders are the ideal choice for users who need to extend their T1/E1 connections to locations where environmental elements cannot be controlled. EnviroNET T1/E1 Transport Extenders extend the reach-and-range of T1/E1 links, delivering rate-adaptive nx64 symmetrical speeds from 64 kbps to 2.048 Mbps over a single twisted pair at distances up to 8.5 km. The T1/E1 Transport Extenders will automatically adapt the line rate based on existing line conditions.

EnviroNET™ T1/E1Transport Extenders are housed in a NEMA 4 enclosure and operate in extreme temperatures, ranging from -40 to 85°C. EnviroNET T1/E1 Transport Extenders are the ideal solution for extending or providing T1/E1 terminations to locations where conditions such as heating, cooling, dust, and moisture cannot be controlled.

Typical applications for Patton’s EnviroNET T1/E1 Transport Extenders include extending T1/E1s beyond a line of sight limited, wireless T1/E1 outdoor location into an end user location.



Applications
EnviroNET

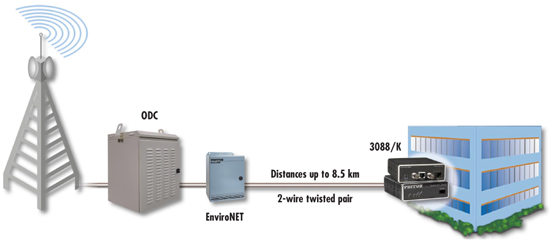

Overcome line of sight T1/E1 distance limitations and add flexibility to your wireless T1/E1 network topology with the EnviroNET T1/E1 Transport Extenders. Just co-locate an EnviroNET T1/E1 Transport Extender at the Outdoor Cabinet (ODC) and a Patton Model 3088/K or T unit at the Customer Demarc to extend the reach of the T1/E1 wireless circuit at distances up to 8.5km.


Product Selection Table

Model #
Std. Indoor Pair
Temperature
Case Rating
Media Type
E1/T1 Interface*
Max Distance (24 AWG)
ET3088/K
3088/K
-40 to 85°C
NEMA 4
2-Wire Twisted Pair
Dual BNC and RJ48C
8.5km (5.3 miles)
EH3088/K
3088/K
-0 to 50 °C
NEMA 4
2-Wire Twisted Pair
Dual BNC and RJ48C
8.5km (5.3 miles)
ET3088/T
3088/T
-40 to 85°C
NEMA 4
2-Wire Twisted Pair
RJ48C
8.5km (5.3 miles)
EH3088/T
3088/T
-0 to 50 °C
NEMA 4
2-Wire Twisted Pair
RJ48C
8.5km (5.3 miles)

*Indoor desktop option also available!


Ordering
# Model # Description Availability
1 ET3088/K/UI EnviroNET extended temp G.SDHSL T1/E1 Transport Extender 100-220VAC (-40 to 85C) End of Life-Notice
2 ET3088/T/UI EnviroNET extended temp G.SDHSL T1 Transport Extender 100-220VAC (-40 to 85C) End of Life-Notice
