EnviroNET™ Ethernet Extenders Ethernet Extenders

Patton's EnviroNET™ Ethernet Extenders provide an extensive range of environmentally hardened and extended temperature solutions for extending Ethernet connections at distances up to 8 km over phone-grade twisted-pair!

Contact Us
Sales: sales@patton.com
Direct: +1 301 975 1000
Support: support@patton.com
Direct: +1 301 975 1007
Have Us Contact You
or
Login
 Connect with us
Twitter Linkedin Facebook Youtube

View All

Features

Overview

Applications

Specs

Ordering

Services



Features
--Image: Made in USA --
  • Ethernet Extension—Extends 10/100Base-TX Ethernet at distances up to 8km over 2-wire 24 AWG unconditioned lines.
  • Extended Temperature -40 to 85°C—Operates in environments that do not have heating or cooling options.
  • NEMA 4 Case—Protection against elements such as dirt, rain, sleet, snow, dust, and the external formation of ice on the enclosure.
  • Auto-sensing Full-Duplex Ethernet—Auto 10 or 100Base-TX and full or half-duplex Ethernet operation.
  • Transparent LAN Bridging—Passes higher layer protocols and supports 802.1Q VLAN tagging.
Overview
EnviroNET™ Ethernet Extenders provide transparent extension of your 10/100 Ethernet LANs at distances up to 8 km over a single twisted pair or line rates up to 50 Mbps! EnviroNET Ethernet Extenders operate at line rates from 192 kbps to 50 Mbps depending on the model selected.

EnviroNET™ Ethernet Extenders are housed in a NEMA 4 enclosure and operate in extreme temperatures, ranging from -40 to 85°C. EnviroNET Ethernet Extenders are the ideal solution for extending or providing Ethernet terminations to locations where harsh environmental elements such as heating, cooling, dust, and moisture cannot be controlled.

EnviroNET™ Ethernet Extender applications include closets, ceilings, industrial automation, roadside cabinets, and various outdoor installations such as security and transportation access/control/surveillance. All EnviroNET Ethernet Extenders offer multiple line rate options to ensure the highest possible data rate is achieved over various lengths and types of copper wire and environments.



Applications

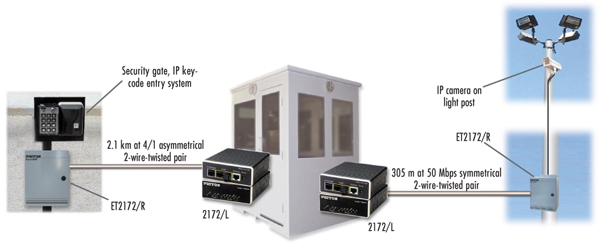

EnviroNET
The Patton EnviroNET Ethernet Extender offers a reliable and robust solutions for connecting peered 10/100Base-T Ethernet LANs; reaching remote PCs and equipment; or delivering last-mile ISP services—at line rates up to 50 Mbps! Patton’s EnviroNET allows the Ethernet Extenders to operate under harsh temperatures (-40 to 85°C) and resist various environmental elements such as dust, rain, snow, sleet, etc. Just co-locate an EnviroNET Ethernet Extender at any outdoor data acquisition location and pair it up with an equivalent Patton Ethernet Extender inside the building.


Product Selection Table

Model #
Std. Indoor Pair
Temperature
Case Rating
Media Type
Max Line Rate
Max Distance
ET2172/R
2172/l
-40 to 85°C
NEMA 4
2-Wire Twisted Pair
50 Mbps
2.1 km (1.3 miles)
EH2172/R
2172/L
-0 to 50 °C
NEMA 4
2-Wire Twisted Pair
50 Mbps
2.1 km (1.3 miles)
ET2168/R
2168/L
-40 to 85°C
NEMA 4
2-Wire Twisted Pair
16 Mbps

1.2 km (4,000 feet)

EH2168/R
2168/L
-0 to 50 °C
NEMA 4
2-Wire Twisted Pair
16 Mbps
1.2 km (4,000 feet)
ET2157/R
2157/R
-40 to 85°C
NEMA 4
2-Wire Twisted Pair
4.6 Mbps
8 km (5 miles)
EH2157/R
2157/R
-0 to 50 °C
NEMA 4
2-Wire Twisted Pair
4.6 Mbps
8 km (5 miles)
ET2156/R
2156/L
-40 to 85°C
NEMA 4
2-Wire Twisted Pair
2.3 Mbps
8 km (5 miles)
EH2156/R
2156/L
-0 to 50 °C
NEMA 4
2-Wire Twisted Pair
2.3 Mbps
8 km (5 miles)

*Indoor desktop option also available!


Ordering
# Model # Description Availability
1 EHA2168/R/UI EnviroNET environmentally hardened Ethernet extender16Mbps; 100-220VAC (0 to 50C) End of Life-Notice
2 EHA2172/L/UI EnviroNET environmentally hardened Ethernet extender 50Mbps (local); UI (0 to 50C); NEMA3 End of Life-Notice
3 EHA2172/R/UI EnviroNET environmentally hardened Ethernet extender 50Mbps (remote); UI (0 to 50C); NEMA3 End of Life-Notice
4 EHA2173/R/UI ENHANCED REMOTE 2173 IN TYPE A ENCLOSUR Special Order
5 ET2168/R/UI EnviroNET extended temp Ethernet extender 16Mbps; 100-220VAC (-40 to 85C) End of Life-Notice
