Features
- nx64 Rates to 2.3 Mbps—With multiple full-duplex symmetric rates available, users select the bandwidth option they need.
- Low-Cost Fixed Interfaces—Multiple interface options to choose from: T1/E1 (G.703/G.704), X.21, and V.35.
- Firewall Support—IDS with blacklisting. ACL support for IP and MAC based filtering.
- IP Features—Extensive support for PPPoE, NAT/NPAT, DHCP, DNS and DNS Relay.
- NetLink Plug-and-Play—Just plug them in and the link comes up in seconds. With G.Handshake, the CPE unit auto-bauds to rate set at CO.
- Front Panel Status Indicators—Front panel LEDs provide users with quick feedback on unit operation.
Overview

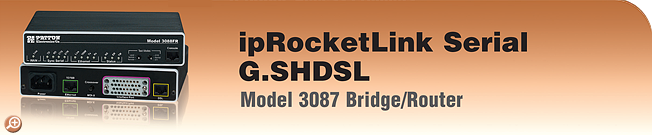

Model 3087 ipRocketLink bridge/router redefines access and sets the new standard for customer premise equipment. Based on European Telecommunications Standardization Institute (ETSI) and International Telecommunications Union (ITU) G.SHDSL G.991.2 standard, the Patton 3087 ipRocketLink enables 2.3 Mbps speeds at nx64 (n=1..36) over a single pair of wires while combining standards based transmission with concurrent synchronous-serial, Ethernet, and high-speed IP routing/bridging…all in one compact package.
With Patton’s FlexIP™ architecture, the Model 3087 offers V.35, X.21, or T1/E1 Sync-Serial interfaces and a 10/100 Ethernet port. Integrated software selectable DCE/DTE support eliminates messy crossover cables. The Ethernet port enables access to any IP network via ATM, PPP, or Frame Relay. Both interfaces can be simultaneously selected with user-defined bandwidth for each port.
Combining ease-of-use with a full suite of LAN/WAN routing features, the Model 3087 provides selectable bridging or routing functionality along with advanced IP features such as NAT/NAPT, DNS relay, and DHCP server and relay. Numerous firewall features including the ability to filter by IP address and by IP port, support for Intrusion Detection (IDS), and the capability of “blacklisting” offending traffic flows likewise come standard with the unit.
Configurable FR/PPP/IP WAN protocols allow a wide range of choices when connecting equipment via common WAN services. The IPLink supports the latest version of PPP/BCP, transparently negotiating the passing of VLAN traffic.

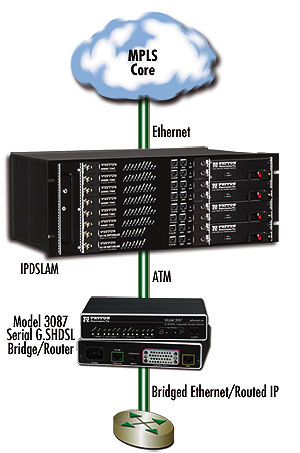

Applications
The Model 3087 ipRocketLink Bridge/Router excels in manageability even in point-to-point configurations.
- NetLink Plug-and-play automatically configures a remote unit based on parameters stored in the local unit.
- Password protected console lets an operator log into a unit to manage and configure it locally.
- With SNMP any MIB browser can manage and configure the unit.
- ipRocketLink devices are software upgradeable from the console port.
- Use a simple HTTP browser for configuration.
Specifications
DSL: G.991.2 ITU G.SHDSL Annex A & Annex B, G.994.1 G.hs. nx64 data rates over 2-wire full-duplex to 2.3 Mbps, symmetrical, TC-PAM encoding. Distances: 32,000 ft (9.8 km) at 192 kbps to 18,000 ft (5.6 km) at 2.312 Mbps.
DSL Connection: Shielded RJ-11F isolation per IEC 950
Ethernet Connection: 10/100Base-T, auto-sensing, full/half-duplex operation, built-in MDI-X
Serial Interface: V.35—M/34F, X.21—DB15F (DCE/DTE), T1—RJ48C, E1—RJ48C, and dual BNC
Management: EIA-561 RJ-45 RS-232, VT-100 CLI, TELNET, Embedded WEB/HTTP, SNMP, Logging or SMTP on events: POST, POST errors, line/DSL, PPP/DHCP, IP MPOA AAL5 & bridged encapsulation RFC 2684 & RFC 1577 IPoATM. LLC/VC Mux support.
ATM Support: UNI 3.1, and 4.0 ATM QoS with UBR/CBR/nrt-VBR/rt-VBR and per-VC queuing and shaping. • Peak cell rate shaping on a per-VCC basis up to 32 active VCC • I.610 OAM network management including AIS/RDI, loop-back and performance monitoring.
Protocol: Enhanced ILMI 4.0 for auto-configuration of ATM PVCs, IP (RFC 741), TCP (RFC 793), UDP (RFC 768), ICMP (RFC 950), ARP (RFC 826). IP Router with RIP (RFC 1058), RIPv2 (RFC 2453), OSPF (RFC 2328) Integrated DHCP Server (RFC 2131). Selectable IP leases and MAC/IP pairings. DHCP relay agent (RFC 2132/RFC 1542) with 8 address pools. DNS Relay. IGMP v1 and v2. IP-in-IP (RFC-2003) encapsulation, Ethernet Bridging.
NAT/NAPT with integrated application support, MultiNat with 1:1 mapping, Many:1, Many:Many mapping, NAT Port/IP redirection and mapping.
Frame Relay with ANSI and CCITT LMI support including user, network, and both configuration. PPP/IPCP and PPP/BCP.
Security: DoS Detection/protection. Intrusion detection, Logging of session, blocking and intrusion events and Real-Time alerts, Password protected system management with a username/password for console and virtual terminal, Packet filtering firewall for controlled access to and from LAN/WAN. Support for 255 rules in 32 filter sets. 16 individual connection profiles. Access list determining up to 5 hosts/networks which are allowed to access management system SNMP/HTTP/TELNET
Indicators: LEDs: DSL Link; Sync Serial: TD, RD, CTS, DTR; T1/E1: Link, LOS, TD, RD; LAN: TX, RX, 100M Link; Status: NS, ER, TM.
Power Supply: Internal universal 90-260 VAC input or 48 VDC input. Optional external power availale.
Compliance: FCC Part 15A, CE Mark, EMC Directive 89/336/EEC, Low-Voltage Directive 73/23/EEC, EN60950, EN55022 (CISPR 22)
Environment: Temperature: 32-122°F (0-50°C); Humidity: 5-90%, non-condensing
Dimensions: 7.3" x 6.6" x 1.62" (185mm x 168mm x 41mm).
Ordering Information
| Model # |
Description |
| 3087/RIC/EUI |
Serial G.SHDSL Bridge/router; V.35 interface with M34 connector; external UI power |
| 3087/RID/EUI |
Serial G.SHDSL Bridge/router; X.21 interface with DB15 connector; external UI power |
| 3087/RIK/EUI |
Serial G.SHDSL Bridge/router; G.703/G.704 interface with BNC & RJ45 connector; external UI power |
|
Support Services
| Item Number |
Item Description |
Price |
| SVC-P-7x24-L |
Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription over 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-7x24-M |
Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription 1,000 to 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-7x24-S |
Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription up to 1,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-SH-L |
Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription over 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-SH-M |
Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription 1,000 to 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-SH-S |
Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription up to 1,000 units deployed. |
Contact us for availability and pricing. |
| SVC-ENHWAR1 |
1 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR2 |
2 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR3 |
3 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR4 |
4 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR5 |
5 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR2 |
2 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR3 |
3 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR4 |
4 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR5 |
5 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-TECH-HOUR |
Network technician hour rate for Pre-config services, after hours support etc? |
Contact us for availability and pricing. |
