Features
- Ultra-compact design (1 RU)—STM-1 trunks, built-in E1/T1 and Ethernet client ports, and integrated non-blocking cross-connect
- Highly flexible configurations—Terminal mux and ADM, linear MSP 1+1 protection, point-to-point, linear ADM, ring ADM, and SNCP/I and SNCP/N
- Next-generation SDH features—GFP encapsulation, virtual concatenation (VCAT), LO/HO, LCAS
- Layer 2 packet intelligence—Ethernet MAC with flow control, VLAN, rate limiting, Q-in-Q, and QoS
Overview

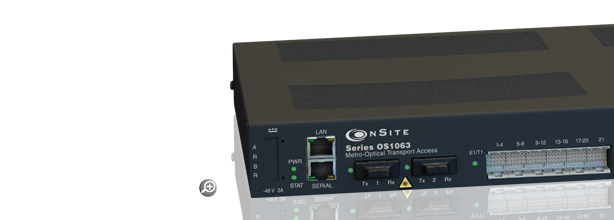

The Patton OnSite Series Model OS1063 is an ultra-compact next-generation flex access node. The OS1063 is the platform of choice for economical deployment of access points with an initial count of 21 E1 ports, but with flexibility for future capacity expansion and simple migration toward converged IP service networks. The OS1063 supports 3G/4G mobile network backhaul, secure and scalable carrier Ethernet transport, multi-service aggregation, quad-play connectivity (voice, data, video and mobility), and technology mediation among TDM, ATM, and Ethernet.
The advanced modular design of the OnSite OS1063 provides unequaled flexibility in its class in terms of service offerings, capacity and functional upgrades.
The OS1063 incorporates next-generation SDH features such as virtual concatenation (VCAT), link capacity adjustment scheme (LCAS) and generic framing procedure (GFP) for efficient packet data transport. The platform also incorporates Layer 2 features such as VLAN tagging, rate limiting and statistical multiplexing with multi-level QoS control.
The base OS1063 system is configured with 2 STM-1 and 21 E1/T1.
Two expansion module slots are included for increasing system capacity beyond the initial base configuration. Additional ports and features only require simple insertion of one of the many available types of TDM and packet data modules.
In only one RU, the OS1063 supports expansion up to 63 E1 ports and 18 Ethernet 10/100 ports
Example combinations of service and port capacity expansions

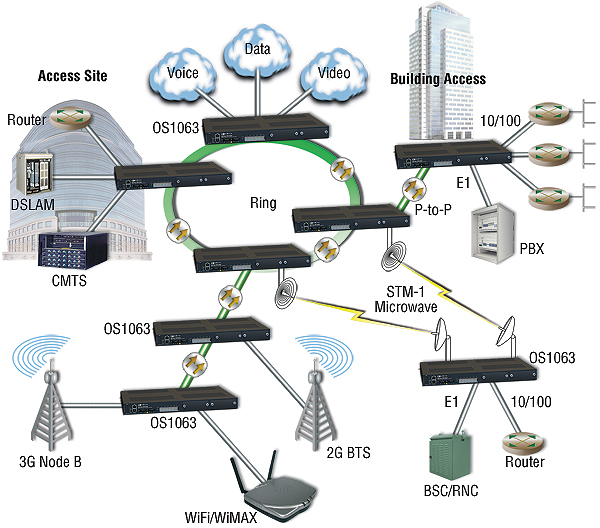

Applications
The advanced modular design of the Patton OnSite OS1063 provides unequaled flexibility in its class in terms of service offerings, capacity and functional upgrades.
The base OS1063 system is configured with:
Two expansion module slots allow increasing system capacity beyond the initial base configuration. Additional ports and features only require simple insertion of one of the many available types of TDM and packet data modules.
In only one RU, the OS1063 supports expansion up to:
- 63 E1 ports
- 16 Ethernet 10/100 ports
The OS1063 incorporates next-generation SDH features such as virtual concatenation (VCAT), link capacity adjustment scheme (LCAS) and generic framing procedure (GFP) for efficient packet data transport. The platform also incorporates Layer 2 features such as VLAN tagging, rate limiting and statistical multiplexing with multi-level QoS control. The OS1063 is easily configured and managed through a simple Web-based GUI interface or the scalable Patton OnSight NMS.
Specifications
| Trunk Interfaces |
STM-1: G.707, G.783 • Optics: G.957 S-1.1, L-1.1 and L-1.2 options |
| Client Interfaces |
E1: G.703, 75-ohm and 120-ohm options • T1: G.703, 100-ohm • Ethernet 10/100Base-TX: 802.3u |
| Expansion Modules |
SDH: STM-1 optical (2 ports) • STM-1 electrical (2 ports)
PDH: E1 (21 ports) • E3/DS3 (3 ports)
Packet Data: 10/100Base-TX (8 ports) |
| Configuration & Port Capacity for 2 Expansion Slots |
STM-1: Base: 2 • Max: 6
E1: Base: 21 • Max: 63
E3/DS3: Base: – • Max: 6
10/100Base-TX: Base: – • Max: 18 |
| Protection |
Linear MSP 1+1 • SNCP/I and SNCP/N |
| Bandwidth Connectivity and Provisioning |
Connectivity: VC-12, VC-3 levels • One-way, two-way, drop-and-continue and multicast connections • VCAT: VC-12-Xv and VC-3-Xv • LCAS: G.7042 • Packet encapsulation: GFP-F (G.7041) |
| Timing & Synchronization |
Internal: Stratum 3 clock • Line timing: STM-1 and E1/T1 • External timing: Dual Sync In/Out ports at 2 or 1.5 Mbps/MHz • SSM support: G.781 |
| System Access |
Serial RS-232 and Ethernet LAN management ports • IP over DCCr and DCCm options • IP over E1 signal mapped into selected VC-12 channel • DCC transparency (any subset of DCC rows) • Telnet |
| Operations |
Local and remote software download and upgrade (FTP/TFTP) • Loopbacks: facility and terminal • ALS (automatic laser shutdown): G.958 • Alarm Contacts (optional) • Orderwire: 2-wire interface using E1 or E2 byte (optional) |
| Management |
Web-based GUI management interface • XML • SNMP v1/v2 |
| Packet Intelligence |
Ethernet MAC: 802.3 • VLAN: 802.1Q and Q-in-Q • Service provider VLAN (SP-VLAN) using S-Tag: 802.1ad • Tagging operations: C-Tag and S-Tag add/strip • Flow Control: 802.3x • Rate Limiting: Sustained and peak rates with 64 kbit/s granularity for ports and VLANs • QoS: 4 levels with strict priority, WFQ and WRED support |
| Dimensions |
1.75H x 17.25W x 11.54D in.
(44.45H x 438.2W x 293D mm)
1RU |
| Weight |
11 lbs (5 kg) |
| Cooling |
Natural convection cooling (no fans) |
| Mounting |
19-inch EIA/TIA or ETSI 300 mm racks, or desktop and wall-mounting options |
| Power |
AC input: 100 to 245 V at 50 to 60 Hz
DC input: -36 to -72 V (-48V nominal), dual inputs
Consumption: 60 W maximum |
| Environment |
Temperature: 0 to +50°C (+32 to +122°F)
Humidity: 5 to 95%, non-condensing |
| EMC |
EN 55022 Class A, FCC part 15 Class A |
| Safety |
EN 60950, UL 60950 |
| CE Mark |
Yes |
Ordering Information
| Model # |
Description |
| 1063-L1-ST3-DC-00-00 |
1063 BASE, L1.1,E1,120 OHM,DC (800-0074) |
| |
| Accessories |
| CABL-FB-120-02-OP |
ONSITE, CABLE, E1, 2 METERS, 120 BAL FB to OPEN |
| CABL-FB-120-02-RJ |
ONSITE, CABLE., E1, 2 METERS, 120 BAL FB TO RJ48 |
| CABL-FB-120-05-OP |
ASS'Y, CA., E1, 5 METERS, 120 BAL FB to OPEN (500-0014) |
| CABL-FB-120-15-OP |
ONSITE,CABLE, E1, 15 METERS, 120 BAL FB to OPEN |
| CABL-MC-075-02-BN |
ONSITE, CABLE, 1.0/2.3 Male TO BNC MALE, 2 M, RG179 FLEX (500-0019) |
| CABL-MC-075-15-BN |
ONSITE, CABLE, 1.0/2.3 Male TO BNC MALE, 15 M, RG179 FLEX |
|
| 1063-S1-ST3-AC-00-00 |
1063 BASE, S1.1,E1,120 OHM,AC (800-0026) |
| |
| Accessories |
| CABL-FB-120-02-OP |
ONSITE, CABLE, E1, 2 METERS, 120 BAL FB to OPEN |
| CABL-FB-120-02-RJ |
ONSITE, CABLE., E1, 2 METERS, 120 BAL FB TO RJ48 |
| CABL-FB-120-05-OP |
ASS'Y, CA., E1, 5 METERS, 120 BAL FB to OPEN (500-0014) |
| CABL-FB-120-15-OP |
ONSITE,CABLE, E1, 15 METERS, 120 BAL FB to OPEN |
| CABL-MC-075-02-BN |
ONSITE, CABLE, 1.0/2.3 Male TO BNC MALE, 2 M, RG179 FLEX (500-0019) |
| CABL-MC-075-15-BN |
ONSITE, CABLE, 1.0/2.3 Male TO BNC MALE, 15 M, RG179 FLEX |
|
| 1063-S1-ST3-DC-00-00 |
1063 BASE, S1.1,E1,120 OHM,DC (800-0030) |
| |
| Accessories |
| CABL-FB-120-02-OP |
ONSITE, CABLE, E1, 2 METERS, 120 BAL FB to OPEN |
| CABL-FB-120-02-RJ |
ONSITE, CABLE., E1, 2 METERS, 120 BAL FB TO RJ48 |
| CABL-FB-120-05-OP |
ASS'Y, CA., E1, 5 METERS, 120 BAL FB to OPEN (500-0014) |
| CABL-FB-120-15-OP |
ONSITE,CABLE, E1, 15 METERS, 120 BAL FB to OPEN |
| CABL-MC-075-02-BN |
ONSITE, CABLE, 1.0/2.3 Male TO BNC MALE, 2 M, RG179 FLEX (500-0019) |
| CABL-MC-075-15-BN |
ONSITE, CABLE, 1.0/2.3 Male TO BNC MALE, 15 M, RG179 FLEX |
|
|

Support Services
| Item Number |
Item Description |
Price |
| SVC-P-7x24-L |
Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription over 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-7x24-M |
Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription 1,000 to 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-7x24-S |
Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription up to 1,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-SH-L |
Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription over 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-SH-M |
Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription 1,000 to 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-SH-S |
Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription up to 1,000 units deployed. |
Contact us for availability and pricing. |
| SVC-ENHWAR1 |
1 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR2 |
2 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR3 |
3 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR4 |
4 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR5 |
5 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR2 |
2 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR3 |
3 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR4 |
4 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR5 |
5 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-TECH-HOUR |
Network technician hour rate for Pre-config services, after hours support etc? |
Contact us for availability and pricing. |
Data Sheets (PDF) -- Requires Adobe Acrobat to view |
| OnSite Series Model OS1063 Datasheet |
July 27, 2009 |
| OnSite Series Model OS1063 Datasheet (A4 page size) |
July 27, 2009 |
Manuals (PDF) -- Requires Adobe Acrobat to view |
| OnSite Series Modules Guide, Quick Start |
February 21, 2012 |
| OnSite 10xx Series User Manual |
February 21, 2012 |
| OnSite 10xx Series Guide, Quick Start |
February 21, 2012 |
| OnSite 10xx Series Guide, Administrator's Reference |
February 21, 2012 |
News Releases |
| Patton and FedEx Announce Faster, Better, Cheaper Logistics |
July 12, 2011 |
| Patton Earns ISO 9001:2008 Certificate |
April 27, 2010 |
| Patton Installs New Regional Director in Burgeoning Latin America Market |
March 09, 2009 |
| Patton Partners with JTS to Take Double Share of Japan's Network Equipment Market |
February 09, 2009 |
| Milan Sales Office Supports Rising Demand for Patton Equipment in Southern Europe |
December 16, 2008 |
| Patton Acquires OnSite Systems S10 Next-Generation SONET/SDH Solutions |
December 15, 2008 |
| Drawn by Robust Telecom Expansion, Patton-India Launches Operations in Chennai |
April 09, 2008 |
| Patton Commences 25th Year of Data and Telecom Innovations |
January 16, 2008 |
Product/Solutions Guides (PDF) -- Requires Adobe Acrobat to view |
| ForeFront™ Access Infrastructure Guide |
May 03, 2010 |
| Multi-Services Over SDH Solutions Guide |
March 30, 2009 |
White Papers (PDF) -- Requires Adobe Acrobat to view |
| Converged MDU/MTU Solutions - MultiService over SDH Application |
February 16, 2009 |
| Converged 2G/3G Mobile Network Leveraging SDH Infrastructure |
February 16, 2009 |
| Converged TDM and IP-Based Broadband Using SDH Infrastructure |
February 16, 2009 |
| Converged Optical Ethernet - MultiService over SDH Application |
February 16, 2009 |
- Ultra-compact design (1 RU)—STM-1 trunks, built-in E1/T1 and Ethernet client ports, and integrated non-blocking cross-connect
- Highly flexible configurations—Terminal mux and ADM, linear MSP 1+1 protection, point-to-point, linear ADM, ring ADM, and SNCP/I and SNCP/N
- Next-generation SDH features—GFP encapsulation, virtual concatenation (VCAT), LO/HO, LCAS
- Layer 2 packet intelligence—Ethernet MAC with flow control, VLAN, rate limiting, Q-in-Q, and QoS
The Patton OnSite Series Model OS1063 is an ultra-compact next-generation flex access node. The OS1063 is the platform of choice for economical deployment of access points with an initial count of 21 E1 ports, but with flexibility for future capacity expansion and simple migration toward converged IP service networks. The OS1063 supports 3G/4G mobile network backhaul, secure and scalable carrier Ethernet transport, multi-service aggregation, quad-play connectivity (voice, data, video and mobility), and technology mediation among TDM, ATM, and Ethernet.
The advanced modular design of the OnSite OS1063 provides unequaled flexibility in its class in terms of service offerings, capacity and functional upgrades.
The OS1063 incorporates next-generation SDH features such as virtual concatenation (VCAT), link capacity adjustment scheme (LCAS) and generic framing procedure (GFP) for efficient packet data transport. The platform also incorporates Layer 2 features such as VLAN tagging, rate limiting and statistical multiplexing with multi-level QoS control.
The base OS1063 system is configured with 2 STM-1 and 21 E1/T1.
Two expansion module slots are included for increasing system capacity beyond the initial base configuration. Additional ports and features only require simple insertion of one of the many available types of TDM and packet data modules.
In only one RU, the OS1063 supports expansion up to 63 E1 ports and 18 Ethernet 10/100 ports
Example combinations of service and port capacity expansions
The advanced modular design of the Patton OnSite OS1063 provides unequaled flexibility in its class in terms of service offerings, capacity and functional upgrades.
The base OS1063 system is configured with:
Two expansion module slots allow increasing system capacity beyond the initial base configuration. Additional ports and features only require simple insertion of one of the many available types of TDM and packet data modules.
In only one RU, the OS1063 supports expansion up to:
- 63 E1 ports
- 16 Ethernet 10/100 ports
The OS1063 incorporates next-generation SDH features such as virtual concatenation (VCAT), link capacity adjustment scheme (LCAS) and generic framing procedure (GFP) for efficient packet data transport. The platform also incorporates Layer 2 features such as VLAN tagging, rate limiting and statistical multiplexing with multi-level QoS control. The OS1063 is easily configured and managed through a simple Web-based GUI interface or the scalable Patton OnSight NMS.
| Trunk Interfaces |
STM-1: G.707, G.783 • Optics: G.957 S-1.1, L-1.1 and L-1.2 options |
| Client Interfaces |
E1: G.703, 75-ohm and 120-ohm options • T1: G.703, 100-ohm • Ethernet 10/100Base-TX: 802.3u |
| Expansion Modules |
SDH: STM-1 optical (2 ports) • STM-1 electrical (2 ports)
PDH: E1 (21 ports) • E3/DS3 (3 ports)
Packet Data: 10/100Base-TX (8 ports) |
| Configuration & Port Capacity for 2 Expansion Slots |
STM-1: Base: 2 • Max: 6
E1: Base: 21 • Max: 63
E3/DS3: Base: – • Max: 6
10/100Base-TX: Base: – • Max: 18 |
| Protection |
Linear MSP 1+1 • SNCP/I and SNCP/N |
| Bandwidth Connectivity and Provisioning |
Connectivity: VC-12, VC-3 levels • One-way, two-way, drop-and-continue and multicast connections • VCAT: VC-12-Xv and VC-3-Xv • LCAS: G.7042 • Packet encapsulation: GFP-F (G.7041) |
| Timing & Synchronization |
Internal: Stratum 3 clock • Line timing: STM-1 and E1/T1 • External timing: Dual Sync In/Out ports at 2 or 1.5 Mbps/MHz • SSM support: G.781 |
| System Access |
Serial RS-232 and Ethernet LAN management ports • IP over DCCr and DCCm options • IP over E1 signal mapped into selected VC-12 channel • DCC transparency (any subset of DCC rows) • Telnet |
| Operations |
Local and remote software download and upgrade (FTP/TFTP) • Loopbacks: facility and terminal • ALS (automatic laser shutdown): G.958 • Alarm Contacts (optional) • Orderwire: 2-wire interface using E1 or E2 byte (optional) |
| Management |
Web-based GUI management interface • XML • SNMP v1/v2 |
| Packet Intelligence |
Ethernet MAC: 802.3 • VLAN: 802.1Q and Q-in-Q • Service provider VLAN (SP-VLAN) using S-Tag: 802.1ad • Tagging operations: C-Tag and S-Tag add/strip • Flow Control: 802.3x • Rate Limiting: Sustained and peak rates with 64 kbit/s granularity for ports and VLANs • QoS: 4 levels with strict priority, WFQ and WRED support |
| Dimensions |
1.75H x 17.25W x 11.54D in.
(44.45H x 438.2W x 293D mm)
1RU |
| Weight |
11 lbs (5 kg) |
| Cooling |
Natural convection cooling (no fans) |
| Mounting |
19-inch EIA/TIA or ETSI 300 mm racks, or desktop and wall-mounting options |
| Power |
AC input: 100 to 245 V at 50 to 60 Hz
DC input: -36 to -72 V (-48V nominal), dual inputs
Consumption: 60 W maximum |
| Environment |
Temperature: 0 to +50°C (+32 to +122°F)
Humidity: 5 to 95%, non-condensing |
| EMC |
EN 55022 Class A, FCC part 15 Class A |
| Safety |
EN 60950, UL 60950 |
| CE Mark |
Yes |
