Features
- Up to 120 VoIP calls... with up to four T1/E1/PRI ports and dual Gigabit Ethernet ports.
- Unified Communications Agent™—Provides any-to-any multi-path switching with VoIP and data survivability, VoIP-over-VPN security with AES/DES strong encryption, Internet Key Exchange (IKE), and SIP Registrar.
- Secure Toll-Quality VoIP—Patton’s DownStreamQoS™ and Voice-over-VPN with adaptive traffic management and shaping for maximum voice quality and secure voice communication.
- Transparent Telephony Features—Complex number manipulation and mapping for seamless integration with existing infrastructures, CLIP, CLIR, hold, transfer and much more.
- G.SHDSL.bis Broadband Access—Optional 4-wire 11.4 Mbps G.SHDSL.bis WAN interface.
- Optional High Precision Clock—Delivers DECT PBX interoperability with reliable fax performance.
- Flexible mounting options—The device can be placed on a desktop or installed in a 19-inch rack using the optional rack ear kit (INS-KIT-RACKEARS-11/19)
SmartNode™ Awards
Overview
As enterprises move move toward Unified Communications, the SmartNode™ 4950 offers a smooth transition to IP telephony by connecting your traditional phone equipment to next-generation VoIP networks and services.
Preserve your investment in legacy phone equipment while taking the next step toward Unified Communications. Least-cost call routing in Patton’s proven SmartNode™ VoIP solutions optimizes monthly expenses while flexible dialed-numbering plans maintain established business processes.
The Unified Communications Agent™ (UCA) provides any-to-any multi-path switching (simultaneous SIP, H.323, ISDN, and POTS calls with routing and conversion between TDM/PSTN and IP/Ethernet networks—plus T.38 and SuperG3 FAX) combined with dial-backup and IP-link redundancy for VoIP and data survivability. Provide VoIP-over-VPN security with voice encryption via IPsec with AES/DES strong encryption and automated keying via Internet Key Exchange (IKE), plus SIP Registrar for presence/reachability.
Advanced router functionality includes DownStreamQoS™ delivering the clear advantage of secure, uninterrupted voice-and-data communication.
Connect to any switch, PBX or data network with up to four T1/E1/PRI ports for up to 120 simultaneous calls using SIP, T1, E1 or PRI signaling. Like every SmartNode, the SN4950 supports all the industry-standard CODECs, delivering toll-quality voice on every call.
Ensure business continuity. Combining PSTN breakout with IP-link redundancy, SmartNode™ ensures voice-and-data survivability for reliable enterprise-class communications.
Additional options include Patton’s unique high-precision clock enabling first-line IP telephony services in demanding ISDN and DECT environments with reliable FAX and modem performance. The SN4950 also offers optional built-in 11.4 Mbps broadband access via 4-wire G.SHDSL.bis that reduces hardware costs, simplifies network architecture and streamlines service and deployment.
Applications

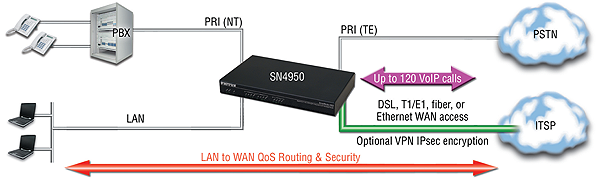

Convert Legacy PBX to VoIP
Specifications
| PSTN |
Up to four T1/E1/PRI ports (NE/TE) • Signaling support (ISDN DSS-1, NI-2, Q.SIG, CAS Robbed bit loop and ground start, E&M, immediate, wink, double wink) • ISDN AOC/ECT • ISDN speech, audio & data (Fax Gr 4, UDI 64, RDI64) • ISDN supplementary services • CAS protocols: RBS (Loop start, ground start, E&M wink, intermediate, double-wink) and R2/MFC-R2 (Q.400–Q.490 and Configurable country profiles)
|
| VoIP |
SIPv2 (SIP Info, Update, PRACK, Privacy, Refer), B2BUA, Optional SIP Registrar, H.323v4 (H.235, Early H.245, H.245 tunneling, fast-connect) |
| Broadband Access |
4-wire G.SHDSL ITU-T G991.2, Annex A, B, F, G • Up to 11.4 Mbps • PPoE • 8PVCs, each UBR, CBR or VBR-rt selectable • I.610 OAM F4/F5 support • G.994.1 (G.hs) |
| Voice Processing |
Codec G.711 a-law/mu-law, G.723, G.729ab, G.726, G727, T.38 fax relay (9.6 k, 14.4 k) • G.711 transparent fax and bypass • 128 ms echo cancellation |
| Call Routing and Services |
Regular expression call routing and manipulation • number blocking • short-dialing • digit collection, distribution and hunt groups |
| Data Interfaces |
Dual
10/100/1000 TX Ethernet Ports • Autosensing • Auto-MDI • Full-duplex
|
| IP Routing |
IP access router • DHCP Client & Server • RIPv2 • BGP • VRRP • Packet fragmentation • Firewall • NAT/NAPT RFC 1631 • Access Control Lists • DMZ port • IPSec VPN (Option) |
| IP Quality of Service |
Voice
priority • DownStreamQoS™ • traffic management, shaping policing • IEEE 802.1p,
TOS, DiffServ labeling • IEEE 802.1Q, VLAN tag insertion/deletion 4,096
|
| Management |
Web/HTTP, CLI with local console & remote Telnet access • HTTP/TFTP configuration & firmware loading • SNMP MIB II and product MIB • SYSLOG • Secure autoprovisioning for both firmware & unit/subscriber configuration • Built-in diagnostic tools (trace, debug, call generator)
|
| Power & Packaging |
Desktop
metal chassis
Dimensions: 11.0W x 1.5H x 7.0D in. (28.0W x 3.9H x 18.0D cm)
Weight: < 30 oz (850g)
External Power: 100–240VAC (50/60 Hz)
Power Consumption: < 15W |
| Operating Environment | Operating
temperature: 32 to
104°F (0 to 40°C)
Operating
humidity: up to
90%, non-condensing |
| Compliance |
EMC: EN55022 and EN5502 • Safety: EN 60950 • CE • FCC Part 15 Class A; Part 68; CS-03 |
Ordering Information
| Model # |
Description |
| SN4950/1E15V/EUI |
SmartNode Hi-Cap 1 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 15 VoIP Channels, upgradeable to 30, External UI Power. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/1E15V2GS/EUI |
SmartNode Hi-Cap 1 T1/E1/PRI VoIP IAD, 2x GigEthernet, 15 VoIP Channels; field upgradeable to 30, 2 Pairs G.SHDSL interface, External UI Power |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/1E24V/EUI |
SmartNode Hi-Cap 1 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 24 VoIP Channels, upgradeable to 30, External UI Power. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/1E24V2GS/EUI |
SmartNode Hi-Cap 1 T1/E1/PRI VoIP IAD, 2x GigEthernet, 24 VoIP Channels; field upgradeable to 30, 2 Pairs G.SHDSL interface, External UI Power |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/1E30V/EUI |
SmartNode Hi-Cap 1 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 30 VoIP Channels; non-upgradeable, External UI Power. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/1E30V2GS/EUI |
SmartNode Hi-Cap 1 T1/E1/PRI VoIP IAD, 2x GigEthernet, 30 VoIP Channels; non-upgradeable, 2 Pairs G.SHDSL interface, External UI Power |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/4E120V/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 120 VoIP channels; non upgradeable, External UI Power. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/4E120V2GS/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 120 VoIP Channels; non-upgradeable, 2 Pairs G.SHDSL interface, External UI Power |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/4E15V/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 15 VoIP channels; field upgradeable to a max of 60 channels, External UI Power. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/4E15V2GS/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 15 VoIP channels; field upgradeable to a max of 60 channels. 2 Pairs G.SHDSL interface, External UI Power |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/4E24V/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 24 VoIP channels; field upgradeable to a max of 60 channels, External UI Power. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/4E24V2GS/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 24 VoIP Channels; field upgradeable to 60 channels, 2 Pairs G.SHDSL interface, External UI Power |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/4E30V/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 30 VoIP channels; field upgradeable to a max of 60 channels, External UI Power. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/4E30V2GS/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 30 VoIP channels; field upgradeable to a max of 60 channels. 2 Pairs G.SHDSL interface, External UI Power |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/4E48V/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 48 VoIP channels; field upgradeable to a max of 60 channels, External UI Power. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/4E48V2GS/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 48 VoIP channels; field upgradeable to a max of 60 channels. 2 Pairs G.SHDSL interface, External UI Power |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/4E60V/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 60 VoIP channels; non-upgradeable, External UI Power. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/4E60V2GS/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 60 VoIP channels, non-upgradeable, 2 Pairs G.SHDSL interface, External UI Power |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/4E96V/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 96 VoIP channels; field upgradeable to a max of 120 channels, External UI Power. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/4E96V2GS/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 96 VoIP channels; field upgradeable to a max of 120 channels. 2 Pairs G.SHDSL interface, External UI Power |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/1E15V/EUI |
SmartNode Hi-Cap 1 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 15 VoIP Channels; field upgradeable to 30, External UI Power, High Precision 5ppm Clock Source |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/1E15V2GS/EUI |
SmartNode Hi-Cap 1 T1/E1/PRI VoIP IAD, 2x GigEthernet, 15 VoIP Channels; field upgradeable to 30, 2 Pairs G.SHDSL interface, External UI Power, High Precision 5ppm Clock Source |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/1E24V/EUI |
SmartNode Hi-Cap 1 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 24 VoIP Channels; field upgradeable to 30, External UI Power, High Precision 5ppm Clock Source |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/1E24V2GS/EUI |
SmartNode Hi-Cap 1 T1/E1/PRI VoIP IAD, 2x GigEthernet, 24 VoIP Channels; field upgradeable to 30, 2 Pairs G.SHDSL interface, External UI Power, High Precision 5ppm Clock Source |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/1E30V/EUI |
SmartNode Hi-Cap 1 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 30 VoIP Channels; non-upgradeable, External UI Power, High Precision 5ppm Clock Source |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/1E30V2GS/EUI |
SmartNode Hi-Cap 1 T1/E1/PRI VoIP IAD, 2x GigEthernet, 30 VoIP Channels; non-upgradeable, 2 Pairs G.SHDSL interface, External UI Power, High Precision 5ppm Clock Source |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/4E120V/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 120 VoIP Channels; non-upgradeable, External UI Power, High Precision 5ppm Clock Source |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/4E120V2GS/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 120 VoIP Channels; non-upgradeable, 2 Pairs G.SHDSL interface, External UI Power, High Precision 5ppm Clock Source |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/4E15V/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 15 VoIP channels; field upgradeable to 60 channels, External UI Power, High Precision 5ppm Clock Source. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/4E15V2GS/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 15 VoIP channels; field upgradeable to a max of 60 channels. 2 Pairs G.SHDSL interface, External UI Power, High Precision 5ppm Clock Source. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/4E24V/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 24 VoIP channels; field upgradeable to 60 channels, External UI Power, High Precision 5ppm Clock Source. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/4E24V2GS/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 24 VoIP Channels; field upgradeable to 60 channels, 2 Pairs G.SHDSL interface, External UI Power, High Precision 5ppm Clock Source |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/4E30V/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 30 VoIP channels; field upgradeable to a max of 60 channels, External UI Power, High Precision 5ppm Clock Source. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/4E30V2GS/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 30 VoIP channels; field upgradeable to a max of 60 channels. 2 Pairs G.SHDSL interface, External UI Power, High Precision 5ppm Clock Source |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/4E48V/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 48 VoIP channels; field upgradeable to 60 channels, External UI Power, High Precision 5ppm Clock Source. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/4E48V2GS/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 48 VoIP channels; field upgradeable to a max of 60 channels. 2 Pairs G.SHDSL interface, External UI Power, High Precision 5ppm Clock Source |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/4E60V/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 60 VoIP channels; non-upgradeable, External UI Power, High Precision 5ppm Clock Source. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/4E60V2GS/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 60 VoIP channels, non-upgradeable, 2 Pairs G.SHDSL interface, External UI Power, High Precision 5ppm Clock Source |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/4E96V/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 96 VoIP channels; field upgradeable to 120 channels, External UI Power, High Precision 5ppm Clock Source. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/4E96V2GS/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 96 VoIP channels; field upgradeable to a max of 120 channels. 2 Pairs G.SHDSL interface, External UI Power, High Precision 5ppm Clock Source |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
|
Support Services
| Item Number |
Item Description |
Price |
| SVC-P-7x24-L |
Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription over 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-7x24-M |
Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription 1,000 to 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-7x24-S |
Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription up to 1,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-SH-L |
Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription over 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-SH-M |
Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription 1,000 to 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-SH-S |
Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription up to 1,000 units deployed. |
Contact us for availability and pricing. |
| SVC-ENHWAR1 |
1 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR2 |
2 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR3 |
3 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR4 |
4 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR5 |
5 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR2 |
2 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR3 |
3 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR4 |
4 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR5 |
5 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-TECH-HOUR |
Network technician hour rate for Pre-config services, after hours support etc? |
Contact us for availability and pricing. |
Articles (PDF) -- Requires Adobe Acrobat to view |
| How Patton and Techlan Reti Transported Norbert Dentressangle to Converged IP-Communication |
May 07, 2012 |
Certifications (PDF) -- Requires Adobe Acrobat to view |
| Declaration of Conformity - SmartNode 49x0 / SmartNode 49x1 / IPLink Model 2884 / IPLink Model 2888 / SmartNode 5400 |
December 31, 2012 |
| Statement of Equivalence - SmartNode 4950 and 4940 |
June 29, 2012 |
| RoHS Certificate of Compliance - Models SN4960/4950/4940 |
November 22, 2011 |
Data Sheets (PDF) -- Requires Adobe Acrobat to view |
| SmartNode 4950 Datasheet |
January 28, 2013 |
| SmartNode 4950 Datasheet (A4 page size) |
January 28, 2013 |
Manuals (PDF) -- Requires Adobe Acrobat to view |
| SmartWare R6.3 Software Configuration Guide |
January 31, 2013 |
| SmartNode Redirection Server Guide, Administrator's Reference |
July 12, 2012 |
| SmartNode 4950-NCE Guide, Quick Start |
February 07, 2012 |
| SmartNode 4950-NCE User Manual |
February 07, 2012 |
| SmartNode 4950 Guide, Quick Start |
February 07, 2012 |
| SmartNode 4950 User Manual |
February 07, 2012 |
News Releases |
| Patton Announces General Availability of Fiber-Optic SmartNode VoIP Gateway Router IADs |
March 19, 2013 |
| Patton Ships SmartNode VoIP IADs with ADSL Interface |
March 12, 2013 |
| Advice of Charge Service Leverages Patton VoIP Gateways |
February 26, 2013 |
| Patton Exhibits Revenue-Enabling Technologies at Mobile World Congress This Week |
February 25, 2013 |
| Mobile World Congress : Patton présentera deux nouvelles gammes de produits destinés à la mobilité d’entreprise |
February 04, 2013 |
| Patton and TMC Launch Microsoft Lync Solutions News Community |
January 30, 2013 |
| Patton Will Present Wireless Bandwidth-on-Demand Internet Routers and Carrier-Grade VoIP Solutions at Mobile World Congress |
January 24, 2013 |
| Patton and RUN Communications Team Up to Offer Canada VoIP Gateways that Just Work |
January 11, 2013 |
| SmartNode Gateways Cited Among Top Ten VoIP Products for 2012 |
January 08, 2013 |
| Llegan los Gateways VoIP de Patton para comunicaciones SIP listos para el futuro de Internet |
December 18, 2012 |
| Get VoIP Service in Just 6 Minutes from VoIP Supply with the New SIP Enable by Patton and Vitelity |
December 07, 2012 |
| Patton Fills VoIP-Market Gap with SmartNode BRI/FXS/FXO Gateway-Router |
March 07, 2012 |
| Patton Ships Thousands of SmartNode BRI VoIP Gateways, New Model Coming Soon. . . |
February 16, 2012 |
| Patton Unveils High-Density Carrier-Grade VoIP Media Gateway Today at ITEXPO |
February 01, 2012 |
| Patton Scores Seven in a Row: SmartNode™ Wins Internet Telephony’s 2011 “Product of the Year” |
January 26, 2012 |
| Patton and Elastix Announce Fully-Integrated Unified Communications Solution at elastixWorld 2011 |
November 03, 2011 |
| Patton, SEN Join Forces to Enable Converged-IP Networks in Central America |
August 31, 2011 |
| Patton-ABP-Broadvox Alliance Launches VoIPReady™ Solutions Today at IP Sizzles |
August 09, 2011 |
| Patton and FedEx Announce Faster, Better, Cheaper Logistics |
July 12, 2011 |
| Patton SmartNode™ Launches Two New BRI VoIP Product Lines |
June 29, 2011 |
| Patton Expands the SmartNode™ T1/E1/PRI VoIP Gateway Series |
April 12, 2011 |
| SmartNode™ VoIP vince il tredicesimo premio come Prodotto dell'anno di INTERNET TELEPHONY® |
March 29, 2011 |
| SmartNode™ VoIP gewinnt 13. jährliche Auszeichnung der Zeitschrift INTERNET TELEPHONY® für das Produkt des Jahres |
March 29, 2011 |
| La passerelle VoIP SmartNode™ remporte le treizième prix annuel Produit de l'année remis par le magazine INTERNET TELEPHONY® |
March 29, 2011 |
| Certifiés par IBM, les routeurs VoIP SmartNode de Patton enrichissent Lotus Sametime avec des fonctionnalités de téléphonie avancées |
March 22, 2011 |
| IBM-zertifizierte SmartNode VoIP-Router von Patton bringen fortschrittliche Telefoniefunktionen zu Lotus Sametime |
March 22, 2011 |
| IBM certifica le serie SmartNode™ Mediagateways di Patton Electronics, arricchendo la soluzione Lotus Sametime con funzioni di telefonia avanzate |
March 22, 2011 |
Product/Solutions Guides (PDF) -- Requires Adobe Acrobat to view |
| 3CX IP Solutions Overview |
January 23, 2013 |
| IP Paging/Intercom/Access Control with Microsoft Lync Solution Overview |
December 18, 2012 |
| The Gateway to Microsoft Lync |
December 18, 2012 |
| SmartNode Product Line Overview |
December 18, 2012 |
| The Gateway to BroadWorks |
October 12, 2012 |
Software Upgrades |
| SmartNode 4950 |
- Up to 120 VoIP calls... with up to four T1/E1/PRI ports and dual Gigabit Ethernet ports.
- Unified Communications Agent™—Provides any-to-any multi-path switching with VoIP and data survivability, VoIP-over-VPN security with AES/DES strong encryption, Internet Key Exchange (IKE), and SIP Registrar.
- Secure Toll-Quality VoIP—Patton’s DownStreamQoS™ and Voice-over-VPN with adaptive traffic management and shaping for maximum voice quality and secure voice communication.
- Transparent Telephony Features—Complex number manipulation and mapping for seamless integration with existing infrastructures, CLIP, CLIR, hold, transfer and much more.
- G.SHDSL.bis Broadband Access—Optional 4-wire 11.4 Mbps G.SHDSL.bis WAN interface.
- Optional High Precision Clock—Delivers DECT PBX interoperability with reliable fax performance.
- Flexible mounting options—The device can be placed on a desktop or installed in a 19-inch rack using the optional rack ear kit (INS-KIT-RACKEARS-11/19)
SmartNode™ Awards
As enterprises move move toward Unified Communications, the SmartNode™ 4950 offers a smooth transition to IP telephony by connecting your traditional phone equipment to next-generation VoIP networks and services.
Preserve your investment in legacy phone equipment while taking the next step toward Unified Communications. Least-cost call routing in Patton’s proven SmartNode™ VoIP solutions optimizes monthly expenses while flexible dialed-numbering plans maintain established business processes.
The Unified Communications Agent™ (UCA) provides any-to-any multi-path switching (simultaneous SIP, H.323, ISDN, and POTS calls with routing and conversion between TDM/PSTN and IP/Ethernet networks—plus T.38 and SuperG3 FAX) combined with dial-backup and IP-link redundancy for VoIP and data survivability. Provide VoIP-over-VPN security with voice encryption via IPsec with AES/DES strong encryption and automated keying via Internet Key Exchange (IKE), plus SIP Registrar for presence/reachability.
Advanced router functionality includes DownStreamQoS™ delivering the clear advantage of secure, uninterrupted voice-and-data communication.
Connect to any switch, PBX or data network with up to four T1/E1/PRI ports for up to 120 simultaneous calls using SIP, T1, E1 or PRI signaling. Like every SmartNode, the SN4950 supports all the industry-standard CODECs, delivering toll-quality voice on every call.
Ensure business continuity. Combining PSTN breakout with IP-link redundancy, SmartNode™ ensures voice-and-data survivability for reliable enterprise-class communications.
Additional options include Patton’s unique high-precision clock enabling first-line IP telephony services in demanding ISDN and DECT environments with reliable FAX and modem performance. The SN4950 also offers optional built-in 11.4 Mbps broadband access via 4-wire G.SHDSL.bis that reduces hardware costs, simplifies network architecture and streamlines service and deployment.
Convert Legacy PBX to VoIP
| PSTN |
Up to four T1/E1/PRI ports (NE/TE) • Signaling support (ISDN DSS-1, NI-2, Q.SIG, CAS Robbed bit loop and ground start, E&M, immediate, wink, double wink) • ISDN AOC/ECT • ISDN speech, audio & data (Fax Gr 4, UDI 64, RDI64) • ISDN supplementary services • CAS protocols: RBS (Loop start, ground start, E&M wink, intermediate, double-wink) and R2/MFC-R2 (Q.400–Q.490 and Configurable country profiles)
|
| VoIP |
SIPv2 (SIP Info, Update, PRACK, Privacy, Refer), B2BUA, Optional SIP Registrar, H.323v4 (H.235, Early H.245, H.245 tunneling, fast-connect) |
| Broadband Access |
4-wire G.SHDSL ITU-T G991.2, Annex A, B, F, G • Up to 11.4 Mbps • PPoE • 8PVCs, each UBR, CBR or VBR-rt selectable • I.610 OAM F4/F5 support • G.994.1 (G.hs) |
| Voice Processing |
Codec G.711 a-law/mu-law, G.723, G.729ab, G.726, G727, T.38 fax relay (9.6 k, 14.4 k) • G.711 transparent fax and bypass • 128 ms echo cancellation |
| Call Routing and Services |
Regular expression call routing and manipulation • number blocking • short-dialing • digit collection, distribution and hunt groups |
| Data Interfaces |
Dual
10/100/1000 TX Ethernet Ports • Autosensing • Auto-MDI • Full-duplex
|
| IP Routing |
IP access router • DHCP Client & Server • RIPv2 • BGP • VRRP • Packet fragmentation • Firewall • NAT/NAPT RFC 1631 • Access Control Lists • DMZ port • IPSec VPN (Option) |
| IP Quality of Service |
Voice
priority • DownStreamQoS™ • traffic management, shaping policing • IEEE 802.1p,
TOS, DiffServ labeling • IEEE 802.1Q, VLAN tag insertion/deletion 4,096
|
| Management |
Web/HTTP, CLI with local console & remote Telnet access • HTTP/TFTP configuration & firmware loading • SNMP MIB II and product MIB • SYSLOG • Secure autoprovisioning for both firmware & unit/subscriber configuration • Built-in diagnostic tools (trace, debug, call generator)
|
| Power & Packaging |
Desktop
metal chassis
Dimensions: 11.0W x 1.5H x 7.0D in. (28.0W x 3.9H x 18.0D cm)
Weight: < 30 oz (850g)
External Power: 100–240VAC (50/60 Hz)
Power Consumption: < 15W |
| Operating Environment | Operating
temperature: 32 to
104°F (0 to 40°C)
Operating
humidity: up to
90%, non-condensing |
| Compliance |
EMC: EN55022 and EN5502 • Safety: EN 60950 • CE • FCC Part 15 Class A; Part 68; CS-03 |
| Model # |
Description |
| SN4950/1E15V/EUI |
SmartNode Hi-Cap 1 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 15 VoIP Channels, upgradeable to 30, External UI Power. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/1E15V2GS/EUI |
SmartNode Hi-Cap 1 T1/E1/PRI VoIP IAD, 2x GigEthernet, 15 VoIP Channels; field upgradeable to 30, 2 Pairs G.SHDSL interface, External UI Power |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/1E24V/EUI |
SmartNode Hi-Cap 1 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 24 VoIP Channels, upgradeable to 30, External UI Power. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/1E24V2GS/EUI |
SmartNode Hi-Cap 1 T1/E1/PRI VoIP IAD, 2x GigEthernet, 24 VoIP Channels; field upgradeable to 30, 2 Pairs G.SHDSL interface, External UI Power |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/1E30V/EUI |
SmartNode Hi-Cap 1 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 30 VoIP Channels; non-upgradeable, External UI Power. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/1E30V2GS/EUI |
SmartNode Hi-Cap 1 T1/E1/PRI VoIP IAD, 2x GigEthernet, 30 VoIP Channels; non-upgradeable, 2 Pairs G.SHDSL interface, External UI Power |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/4E120V/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 120 VoIP channels; non upgradeable, External UI Power. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/4E120V2GS/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 120 VoIP Channels; non-upgradeable, 2 Pairs G.SHDSL interface, External UI Power |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/4E15V/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 15 VoIP channels; field upgradeable to a max of 60 channels, External UI Power. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/4E15V2GS/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 15 VoIP channels; field upgradeable to a max of 60 channels. 2 Pairs G.SHDSL interface, External UI Power |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/4E24V/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 24 VoIP channels; field upgradeable to a max of 60 channels, External UI Power. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/4E24V2GS/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 24 VoIP Channels; field upgradeable to 60 channels, 2 Pairs G.SHDSL interface, External UI Power |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/4E30V/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 30 VoIP channels; field upgradeable to a max of 60 channels, External UI Power. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/4E30V2GS/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 30 VoIP channels; field upgradeable to a max of 60 channels. 2 Pairs G.SHDSL interface, External UI Power |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/4E48V/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 48 VoIP channels; field upgradeable to a max of 60 channels, External UI Power. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/4E48V2GS/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 48 VoIP channels; field upgradeable to a max of 60 channels. 2 Pairs G.SHDSL interface, External UI Power |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/4E60V/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 60 VoIP channels; non-upgradeable, External UI Power. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/4E60V2GS/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 60 VoIP channels, non-upgradeable, 2 Pairs G.SHDSL interface, External UI Power |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/4E96V/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 96 VoIP channels; field upgradeable to a max of 120 channels, External UI Power. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4950/4E96V2GS/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 96 VoIP channels; field upgradeable to a max of 120 channels. 2 Pairs G.SHDSL interface, External UI Power |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/1E15V/EUI |
SmartNode Hi-Cap 1 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 15 VoIP Channels; field upgradeable to 30, External UI Power, High Precision 5ppm Clock Source |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/1E15V2GS/EUI |
SmartNode Hi-Cap 1 T1/E1/PRI VoIP IAD, 2x GigEthernet, 15 VoIP Channels; field upgradeable to 30, 2 Pairs G.SHDSL interface, External UI Power, High Precision 5ppm Clock Source |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/1E24V/EUI |
SmartNode Hi-Cap 1 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 24 VoIP Channels; field upgradeable to 30, External UI Power, High Precision 5ppm Clock Source |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/1E24V2GS/EUI |
SmartNode Hi-Cap 1 T1/E1/PRI VoIP IAD, 2x GigEthernet, 24 VoIP Channels; field upgradeable to 30, 2 Pairs G.SHDSL interface, External UI Power, High Precision 5ppm Clock Source |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/1E30V/EUI |
SmartNode Hi-Cap 1 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 30 VoIP Channels; non-upgradeable, External UI Power, High Precision 5ppm Clock Source |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/1E30V2GS/EUI |
SmartNode Hi-Cap 1 T1/E1/PRI VoIP IAD, 2x GigEthernet, 30 VoIP Channels; non-upgradeable, 2 Pairs G.SHDSL interface, External UI Power, High Precision 5ppm Clock Source |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/4E120V/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 120 VoIP Channels; non-upgradeable, External UI Power, High Precision 5ppm Clock Source |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/4E120V2GS/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 120 VoIP Channels; non-upgradeable, 2 Pairs G.SHDSL interface, External UI Power, High Precision 5ppm Clock Source |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/4E15V/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 15 VoIP channels; field upgradeable to 60 channels, External UI Power, High Precision 5ppm Clock Source. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/4E15V2GS/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 15 VoIP channels; field upgradeable to a max of 60 channels. 2 Pairs G.SHDSL interface, External UI Power, High Precision 5ppm Clock Source. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/4E24V/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 24 VoIP channels; field upgradeable to 60 channels, External UI Power, High Precision 5ppm Clock Source. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/4E24V2GS/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 24 VoIP Channels; field upgradeable to 60 channels, 2 Pairs G.SHDSL interface, External UI Power, High Precision 5ppm Clock Source |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/4E30V/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 30 VoIP channels; field upgradeable to a max of 60 channels, External UI Power, High Precision 5ppm Clock Source. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/4E30V2GS/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 30 VoIP channels; field upgradeable to a max of 60 channels. 2 Pairs G.SHDSL interface, External UI Power, High Precision 5ppm Clock Source |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/4E48V/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 48 VoIP channels; field upgradeable to 60 channels, External UI Power, High Precision 5ppm Clock Source. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/4E48V2GS/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 48 VoIP channels; field upgradeable to a max of 60 channels. 2 Pairs G.SHDSL interface, External UI Power, High Precision 5ppm Clock Source |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/4E60V/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 60 VoIP channels; non-upgradeable, External UI Power, High Precision 5ppm Clock Source. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/4E60V2GS/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 60 VoIP channels, non-upgradeable, 2 Pairs G.SHDSL interface, External UI Power, High Precision 5ppm Clock Source |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/4E96V/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP GW-Router, 2x GigEthernet, 96 VoIP channels; field upgradeable to 120 channels, External UI Power, High Precision 5ppm Clock Source. |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
| SN4951/4E96V2GS/EUI |
SmartNode Hi-Cap 4 T1/E1/PRI VoIP IAD, 2x GigEthernet, 96 VoIP channels; field upgradeable to a max of 120 channels. 2 Pairs G.SHDSL interface, External UI Power, High Precision 5ppm Clock Source |
| |
| Accessories |
| INS-KIT-RACKEARS-11/19 |
Rack mount ears for a 11.5 inch case into a 19 inch rack space (For SN5400, SN4960, SN4950, SN4940, SN4990, SN4980, SN4970, SN4670, SN4660, SN4650, SN4630) |
|
|
| Item Number |
Item Description |
Price |
| SVC-P-7x24-L |
Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription over 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-7x24-M |
Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription 1,000 to 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-7x24-S |
Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription up to 1,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-SH-L |
Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription over 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-SH-M |
Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription 1,000 to 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-SH-S |
Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription up to 1,000 units deployed. |
Contact us for availability and pricing. |
| SVC-ENHWAR1 |
1 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR2 |
2 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR3 |
3 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR4 |
4 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR5 |
5 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR2 |
2 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR3 |
3 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR4 |
4 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR5 |
5 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-TECH-HOUR |
Network technician hour rate for Pre-config services, after hours support etc? |
Contact us for availability and pricing. |
|
|
