Products  >  Interface Card IC-E1V
Interface Card IC-E1V End of Life Notice. This legacy product is not recommended for new installations. For next-generation alternatives, please refer to the above EOL notice.

End of Life Notice (PDF). This legacy product is not recommended for new installations. For next-generation alternatives, please refer to the above EOL notice.

Contact Us
Sales: sales@patton.com
Direct: +1 301 975 1000
Support: support@patton.com
Direct: +1 301 975 1007
Have Us Contact You
or
Login
 Connect with us
Twitter Linkedin Facebook Youtube

View All

Features

Overview

Specs

Ordering

Services



Features
  • 1 ISDN balanced 120Ohm E1, RJ45
  • G.168 echo cancellation
  • Support of various voice codecs: G.711 A-Law/µ-Law, G.723.1, G.729A, Transparent
  • Voice Signalling: Euro ISDN EDSS-1 / ETSI PRI / Q-SIG (PSS-1)
  • EMC & CE Compliant
  • 1-year warranty
  • Optional Upgrade: 2-5 year Warranty
  • Optional Upgrade: 1-5 year Enhanced Warranty (includes free Advance Replacements)
Overview

The IC-E1V is a PMC standard compatible interface card for the SmartNode 2000 series. It provides one ISDN PRI interface and connects through a PCI packet and PCM circuit interface to the SmartNode base unit.

The IC-E1V is a high performance ISDN networking card that supports up to 30 simultaneous voice or fax calls. It meets the requirements of medium and large sized enterprises that want to connect their ISDN equipment, such as an ISDN PBX, via a PRI interface to a multi-service IP network.

The ISDN PRI interfaces can be configured as user or network side interfaces. Its on board dedicated micro-controller and DSPs offload the CPU of the SmartNode 2000 base unit and hence guarantee the conversion of voice/fax circuits into related IP-packets in real-time and with least delay and jitter values.

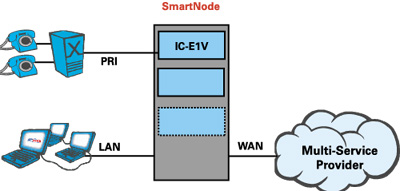

Configuration Example
The example shows the connection of a PBX via an IC-E1V Card into an IP network.



Ordering
# Model # Description Availability
1 SN-ICE1V PART DELETED - 2000 series interface card. 1 x ISDN PRI/S2m VoIP, NT/TE configurable, 30 DSP VoIP channels, voice codecs (G.711, G.726, G.723, G.729ab) End of Life-Notice
2 SN-ICE1V-0 PART DELETED - 2000 series interface card. 1 x ISDN PRI/S2m, NT/TE configurable, Zero VoIP channels (not suitable for VoIP calls) End of Life-Notice
3 SN-ICE1V-15 PART DELETED - 2000 series interface card. 1 x ISDN PRI/S2m VoIP, NT/TE configurable, 15 DSP VoIP channels, voice codecs (G.711, G.726, G.723, G.729ab) End of Life-Notice
