Products  >  Model 1094ARC
Model 1094ARC End of Life Notice - mDSL Products. This legacy product is not recommended for new installations. For next-generation alternatives, please see Patton's Model 3088 Series DSL NTUs.

End of Life Notice - mDSL Products (PDF). This legacy product is not recommended for new installations. For next-generation alternatives, please see Patton's Model 3088 Series DSL NTUs.

Contact Us
Call Us
USA: +1 301 975 1000
Europe: +41 31 985 2525
Email Us
USA: sales@patton.com
Europe: support@patton.com
Have Us Contact You
or
Login
 Connect with us
Twitter Linkedin Facebook Youtube

View All

Features

Overview

Specs

Ordering

Services



Features
  • Supports multiple line rates from 144 kbps to 1.152 Mbps
  • DTE speeds from 64 kbps to 1.024Mbps in increments of 64 kbps
  • Standards-based support (CE Mark)
  • Available with internal 90—260 VAC or -48 VDC power supplies
  • Built-in loopback functionality
  • A variety of modular interfaces.
Overview
Supporting line rates from 144 kbps to 1.168 Mbps, the NetLink 1094A provides “megabyte” speeds for leased lines, LAN-to-LAN interconnections, and WAN access networks located up to 4.6 miles (7.3 km) apart (see distance table below).

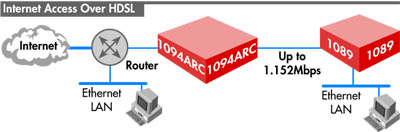

The 1094ARC is the high density 2U-high rack card version of the NetLink HDSL modem (1094A). Now service providers can cut costs and setup time by installing a rack-mounted Model 1094ARC at the central site while bundling a standalone Model 1094A with DSL service at the customer's premises. Convenient remote management capability enables engineers to quickly install or upgrade remote units. The 1094ARC and 1094A can be managed via SNMP/HTTP using Patton's 1001MC SNMP agent card!

As a symmetric modem, the NetLink 1094ARC HDSL modem uses 2B1Q modulation to provide the same data rates in both directions over a single pair of regular telephone lines. Featuring replaceable DCE-DTE interface modules, the NetLink HDSL modem can support a wide range of applications, including Ethernet LAN bridging, G.703/G.704 line extension/termination and V.24/RS-232, V.35, RS-422/530, and X.21 interfaces.
