Products  >  Unified Communications  >  VoIP Gateways, Routers, IADs, and eSBCs  >  IP-PBX VoIP Appliances  >  SmartNode Branch eXchange (SNBX) VoIP PBX Gateway Appliance

IP-PBX Gateway with Windows Embedded
SmartNode Branch eXchange VoIP PBX Gateway Appliance

With Windows 7 Embedded pre-installed you can load the Windows telephony application of your choice. The SNBXGW VoIP IP-PBX supports up to 64 simultaneous calls with Patton’s award-winning SmartNode VoIP Gateway built in.

Contact Us
Sales: sales@patton.com
Direct: +1 301 975 1000
Support: support@patton.com
Direct: +1 301 975 1007
Have Us Contact You
or
Login
 Connect with us
Twitter Linkedin Facebook Youtube

View All

Features

Overview

Applications

Specs

Ordering

Services



Features
--Image: Made in USA --
  • Windows Telephony IP-PBX + VoIP Gateway Appliance:
    • Windows Embedded 7 pre-installed with 3CX business phone system (Free Version 14)
    • Intel Celeron J1900 Quad Core 2.0 GHz Processor
    • DDR3L RAM 4GB
    • 250 GB HDD
  • Fully Customizable—Useful for a variety of business phone system and communication software solutions: IP-PBX, IVR, router, session border controller, call recording, call accounting and so on...
  • Monitoring and Management—Leverage the Patton EMS system together with your preferred software on the SmartNode Branch Exchange to be monitored and managed.
  • Provisioning—The SmartNode Branch Exhange can be provisioned with zero touch at the customer site using the Patton Redirection Service.
  • Fits Your Network:
    • BYOP (Bring your own phone)—No vendor-lock-in! Choose your own hardware, and connect your IP phones or softphones, computers, tablet computers, mobile phones.
    • Keep Your Existing Equipment—Built-in gateway connects existing analog/ISDN equipment to the 3CX or IP PBX software
    • SIP Trunks or PSTN—Save on monthly call costs using SIP Trunks or receive and make calls from the VoIP PBX via the standard PSTN.
  • Why SmartNode™?
    • Patton Quality
    • Made in the USA
    • Unrivaled Customer Support
    • FREE Support and Upgrades
Overview
Patton’s SmartNode Branch Exchange IP-PBX VoIP Gateway Appliance (SNBXGW) is a convenient “one box” VoIP-PBX solution. With the built-in VoIP gateway, the SNBXGW IP-PBX VoIP appliance eliminates the interoperability obstacles for companies that want to keep their legacy PBXs, phones, fax equipment, POTS lines or ISDN lines. Configuration options include a range of analog FXS/FXO and/or digital BRI/PRI gateways coupled with the industry standard mini ITX PC board. The SNBXGW can run any Windows based IP-PBX, IVR, router, SBC, call-recordingr, or call-accounting software, alongside any one of Patton’s robust Gateways. The SNBXGW IP-PBX VoIP gateway appliance opens the door to endless possibilities with customer satisfaction, every time.

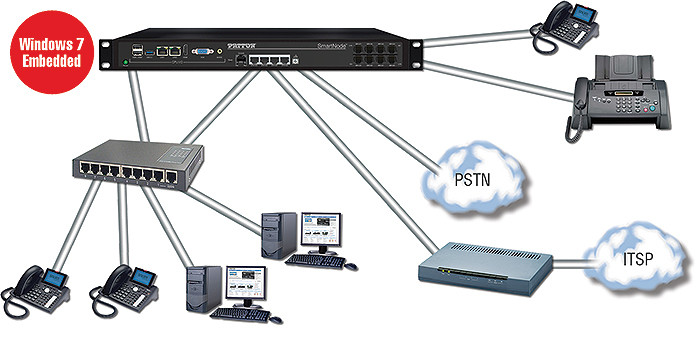

Applications
SmartNode Branch eXchange (SNBX) with Integrated VoIP Gateway app


Ordering
# Model # Description Availability
1 SNBX/1E15V/EUI SmartNode Branch Exchange WINDOWS 7 EMB, 1 T1/E1 PRI VoIP GW-Router, 2x GigEthernet, 15 VoIP channels; upgradeable to 30, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
2 SNBX/1E30V/EUI SmartNode Branch Exchange WINDOWS 7 EMB, 1 T1/E1 PRI VoIP GW-Router, 2x GigEthernet, 30 VoIP channels; not upgradeable , External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
3 SNBX/2BIS2JS2JO8V/EUI SmartNode Branch Exchange WINDOWS 7 EMB, -Router, 2 BRI, 2 FXS, 2 FXO, 8 VoIP calls; 4 LAN/WAN Ethernet Ports ; External 100-240 power, high-precision clock General Availability

 Accessories
4 SNBX/4BIS4JS4JO12V/EUI SmartNode Branch Exchange WINDOWS 7 EMB, -Router, 4 BRI, 4 FXS, 4 FXO, 12 VoIP calls; 4 LAN/WAN Ethernet Ports ; External 100-240 power, high-precision clock General Availability

 Accessories
5 SNBX/4BIS8V/EUI SmartNode Branch Exchange WINDOWS 7 EMB, -Router, 4 BRI, 8 VoIP calls; 4 LAN/WAN Ethernet Ports; External 100-240 power, high-precision clock General Availability

 Accessories
6 SNBX/4E15VR/EUI SmartNode Branch Exchange WINDOWS 7 EMB, 4 T1/E1 PRI VoIP GW-Router, 2x GigEthernet, 15 VoIP channels; upgradeable to 60, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories
7 SNBX/4JS4JO/EUI SmartNode Branch Exchange WINDOWS 7 EMB, 4FXS, 4FXO 8 Voice channels General Availability

 Accessories
8 SNBX/8BIS16V/EUI SmartNode Branch Exchange WINDOWS 7 EMB, -Router, 8 BRI, 16 VoIP calls; 4 LAN/WAN Ethernet Ports ; External 100-240 power, high-precision clock General Availability

 Accessories
9 SNBX/8JS/EUI SmartNode Branch Exchange WINDOWS 7 EMB, -Router, 8 FXS, 8 VoIP calls; 4 LAN/WAN Ethernet Ports ; External 100-240 power General Availability
