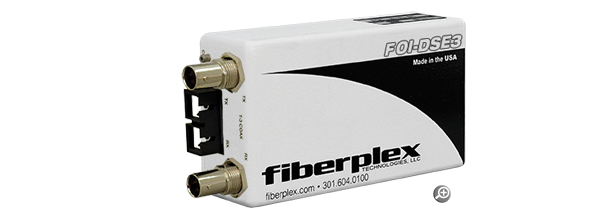

FiberPlex FOI-DSE3 Fiber Optic Isolator/Converter/Modem - E3; mission critical packaging



Packed in rugged military style metal enclosure, the FOI-DSE3 Series is an E3 Fiber Extender and Isolator


Overview
The FOI-DSE3 provides electrical isolation and extension of E3 signals to SONET add/drop multiplexers, PDH equipment or WAN routers. Traditional E3 coax cabling is limited to a maximum distance of 1,100 feet (335 m), but multimode optics on the unit can extend the distance to 1.2 miles (2 km), while singlemode optics can further extend the distance to 12.4 miles (20 km).

The unit can be used in areas of high electrical noise or in and out of RF shielded enclosures. The fiber optic cable is not susceptible to interference caused by impulse noise, crosstalk, or EMI. Privacy of communications is also enhanced because the fiber optic cable does not radiate any emissions.

FOI version units can be mounted in several redundant powering chassis; rack and wall mount options including NEMA alternatives.

Applications

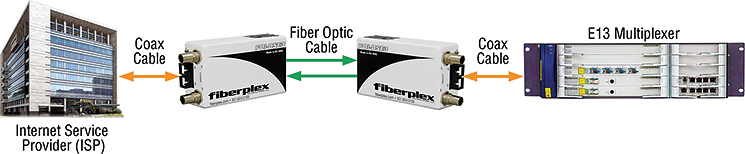

A typical link consists of two FOI-DSE3s, one at each end of the network, with a duplex fiber optic cable in between.

FOI-DSE3 applications


Features
  • Total electrical isolation of E3 over Fiber
  • Satisfies K41 protection requirements for T3/E3 systems
  • FOI-DSE3 complies to ITU-T G.703, ITU-T G.823, ITU-T G.775 loss of signal
  • Multimode extension of up to 1.2 miles (2 km)
  • Singlemode extension up to 12.4 miles (20 km)
  • Rugged metal enclosures with RFI shielding

Ordering
# Model # Description Availability
1 FOI-DSE3-FC Isolator for E3,  BNC interface, multimode FC optics, Power Options Sold Separately Special Order

 Accessories
2 FOI-DSE3-R-FC Isolator for E3,  BNC interface, RFI suppressed, multimode FC optics, Power Options Sold Separately Special Order

 Accessories
3 FOI-DSE3-RS-FC Isolator for E3,  BNC interface, RFI suppressed, singlemode FC optics, Power Options Sold Separately Special Order

 Accessories
4 FOI-DSE3-RS-ST Isolator for E3,  BNC interface, RFI suppressed, Singlemode ST optics, Power Options Sold Separately Special Order

 Accessories
5 FOI-DSE3-R-ST Isolator for E3,  BNC interface, RFI suppressed, Multimode ST optics, Power Options Sold Separately Special Order

 Accessories
6 FOI-DSE3-SC Isolator for E3,  BNC interface, multimode SC optics, Power Options Sold Separately Special Order

 Accessories
7 FOI-DSE3-S-FC Isolator for E3,  BNC interface, singlemode FC optics, Power Options Sold Separately Special Order

 Accessories
8 FOI-DSE3-S-SC Isolator for E3,  BNC interface, singlemode SC optics, Power Options Sold Separately Special Order

 Accessories
9 FOI-DSE3-S-ST Isolator for E3,  BNC interface, Singlemode ST optics, Power Options Sold Separately Special Order

 Accessories
10 FOI-DSE3-ST Isolator for E3,  BNC interface, Multimode ST optics, Power Options Sold Separately Special Order

 Accessories
