T3/E3/DS3/STS/OC-1 Fiber Products
FiberPlex FOI-DST3 Fiber Optic Isolator/Converter/Modem - T3; mission critical packaging

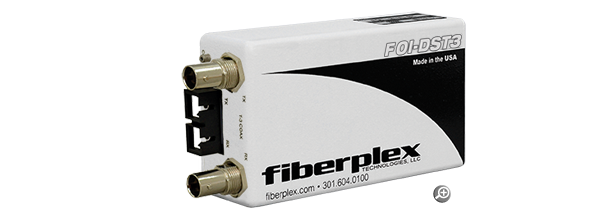

Packed in rugged military style metal enclosure, the FOI-DST3 Series is a T3 Fiber Extender and Isolator


Overview
The FOI-DST3 provides electrical isolation and extension of T3 signals to SONET add/drop multiplexers, PDH equipment or WAN routers. Traditional T3 coax cabling is limited to a maximum distance of 1,100 feet (335 m), but multimode optics on the unit can extend the distance to 1.2 miles (2 km), while singlemode optics can further extend the distance to 12.4 miles (20 km).

The unit can be used in areas of high electrical noise or in and out of RF shielded enclosures. The fiber optic cable is not susceptible to interference caused by impulse noise, crosstalk, or EMI. Privacy of communications is also enhanced because the fiber optic cable does not radiate any emissions.

The FOI-DST3 is part of the FOI line of products designed for ruggedized mil applications. It is housed in the familiar FOI shielded can enclosure. For standalone applications it can be powered by adding a PSQ-4909 AC supply or a PSQ-4920 DC power supply (not included). Optionally, up to 8 FOI units can be mounted on CMA chassis adapters and installed in an RMC-3101 or RMC-2101 rack mount chassis. The units are powered redundantly by a common back plane connection.

Applications

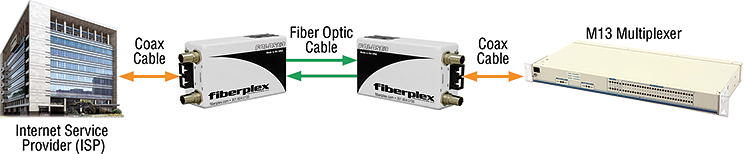

A typical link consists of two FOI-DST3s, one at each end of the network, with a duplex fiber optic cable in between.

FOI-DST3 applications


Features
  • Total electrical isolation of T3 over Fiber
  • Multimode extension of up to 1.2 miles (2 km)
  • Singlemode extension up to 12.4 miles (20 km)
  • Satisfies K41 protection requirements for T3/E3 systems
  • Complies to ANSI T1.102-1993, Telcordia GR-499-CORE, ITU-T G.775 loss of signal
  • Rugged metal enclosures with RFI shielding

Ordering
# Model # Description Availability
1 FOI-DST3-FC Isolator for T3 or DS3, BNC interface, multimode FC optics, Power Options Sold Separately Special Order

 Accessories
2 FOI-DST3-R-FC Isolator for T3 or DS3, BNC interface, RFI suppressed, multimode FC optics, Power Options Sold Separately Special Order

 Accessories
3 FOI-DST3-RS-FC Isolator for T3 or DS3, BNC interface, RFI suppressed, singlemode FC optics, Power Options Sold Separately Special Order

 Accessories
4 FOI-DST3-RS-ST Isolator for T3 or DS3, BNC interface, RFI suppressed, Singlemode ST optics,, Power Options Sold Separately General Availability

 Accessories
5 FOI-DST3-R-ST Isolator for T3 or DS3, BNC interface, RFI suppressed, Multimode ST optics, Power Options Sold Separately Available to Order; Coming Soon

 Accessories
6 FOI-DST3-SC Isolator for T3 or DS3, BNC interface, multimode SC optics, Power Options Sold Separately General Availability

 Accessories
7 FOI-DST3-S-FC Isolator for T3 or DS3, BNC interface, singlemode FC optics, Power Options Sold Separately Special Order

 Accessories
8 FOI-DST3-S-SC Isolator for T3 or DS3, BNC interface, singlemode SC optics, Power Options Sold Separately Available to Order; Coming Soon

 Accessories
9 FOI-DST3-S-ST Isolator for T3 or DS3, BNC interface, Singlemode ST optics, Power Options Sold Separately Special Order

 Accessories
10 FOI-DST3-ST Isolator for T3 or DS3, BNC interface, Multimode ST optics, Power Options Sold Separately General Availability

 Accessories
