Copper SFP HD Video Modules
FiberPlex SFP-BHDV SFP with HD-BNC copper interface for 3G-SDI HD Video



3G-SDI HD Video SFP


Overview

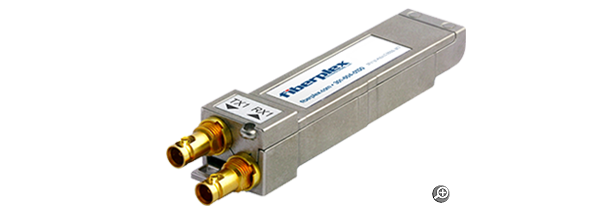

The SFP-BHDVXC-0000-L is a long-reach electrical Small Form Pluggable (SFP) transceiver module designed with reclockers to transmit and receive SDI signals up to 2.97 Gbps over 75Ω coaxial cables via HD-BNC™ connectors. The cable driver slew rate is automatically configured in order to achieve compliance to SMPTE 424M, SMPTE 292M and SMPTE 259M. The equalizer features DC restoration to compensate for the DC content of SMPTE pathological test patterns. By suppressing accumulated jitter, each reclocker procures optimal input and output jitter performance.

The SFP-BHDVXC-0000-L provides module identification information and configuration through a two wire serial interface. It is also a hot-pluggable solution for field system upgrade and maintenance. The SFP-BHDVXC-0000-L is interchangeable with other MSA optical video SFP improving product flexibility. Ganged, belly-to-belly, and superposed SFP cage mountings are supported. The module is SMPTE compliant resulting in reduced development effort and cost.

Applications
Typical Applications include Multi-channel/multi-media transport with the WDM16, Distribution amplifiers, Processing cards, Video routers, Broadcast cameras.

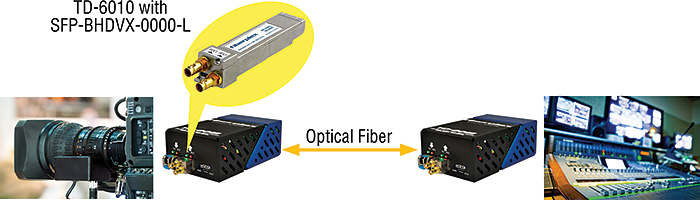

SFP-BHDV applications


Features
  • Compliant with SMPTE 424M, 344M, 292M and 259M
  • Supports DVB-ASI at 270 Mbps
  • Supports video pathological patterns SD-SDI, HD-SDI and 3G-SDI
  • Integrated cable driver (control input signal detection, reclocker rate & lock, voltage and temp, bypass reclocker stage and module info)
  • Supports Audio in SDI stream
  • HD-BNC connectors (75O)
  • Extended Temperature Range -40C to 80C

Ordering
# Model # Description Availability
1 SFP-BHDVAL-0000-R SFP, HD-BNC, HD Video (3G) Active Loop Reclocked, Long Reach w/ Reclocking, MSA Special Order
2 SFP-BHDVAL-0000-RN SFP, HD-BNC, HD Video (3G), Single Reciever w/ Active Loopback , Long Reach w/ Reclocking, Non-MSA General Availability
3 SFP-BHDVDA-0000-L SFP, HD-BNC, HD Video (3G) Distribution Amplifier, Long Reach, MSA Special Order
4 SFP-BHDVDA-0000-LN SFP, HD-BNC, HD Video (3G) Distribution Amplifier, Long Reach, Non-MSA Special Order
5 SFP-BHDVR2-0000-LN SFP, HD-BNC, HD Video (3G) Dual Receive, Long Reach, Non-MSA Special Order
6 SFP-BHDVR2-0000-MN SFP, HD-BNC, HD Video (3G), Dual Receive , Medium Reach, Non-MSA General Availability
7 SFP-BHDVR2-0000-RN SFP, HD-BNC, HD Video (3G) Dual Receive, Long Reach w/ Reclocking, Non-MSA Special Order
8 SFP-BHDVT2-0000-LN SFP, HD-BNC, HD Video (3G) Dual Transmit, Long Reach, Non-MSA Special Order
9 SFP-BHDVT2-0000-RN SFP, HD-BNC, HD Video (3G) Dual Transmit, Long Reach w/ Reclocking, Non-MSA Special Order
10 SFP-BHDVXC-0000-L SFP, HD-BNC, HD Video (3G) Transceiver, Long Reach, MSA General Availability
11 SFP-BHDVXC-0000-LN SFP, HD-BNC, HD Video (3G) Transceiver, Long Reach, Non-MSA Special Order
12 SFP-BHDVXC-0000-M SFP, HD-BNC, HD Video (3G), Transceiver , Medium Reach, MSA General Availability
13 SFP-BHDVXC-0000-MN SFP, HD-BNC, HD Video (3G), Transceiver , Medium Reach, Non-MSA General Availability
14 SFP-BHDVXC-0000-R SFP, HD-BNC, HD Video (3G) Transceiver, Long Reach w/ Reclocking, MSA General Availability
15 SFP-BHDVXC-0000-RN SFP, HD-BNC, HD Video (3G) Transceiver, Long Reach w/ Reclocking, Non-MSA Special Order
16 SFP-BUDVR2-0000-RN SFP, HD-BNC, UHD Video (4K), Dual Receive , Long Reach w/ Reclocking, Non-MSA General Availability
17 SFP-BUDVT2-0000-RN SFP, HD-BNC, UHD Video (4K), Dual Transmit , Long Reach w/ Reclocking, Non-MSA General Availability
18 SFP-DHDVDA-0000-LN SFP, DIN, HD Video (3G), Distribution Amplifier , Long Reach, Non-MSA General Availability
19 SFP-DHDVR2-0000-MN SFP, DIN, HD Video (3G), Dual Receive , Medium Reach, Non-MSA General Availability
20 SFP-DHDVXC-0000-M SFP, DIN, HD Video (3G), Transceiver , Medium Reach, MSA General Availability
21 SFP-HHDVR1-0000-MN SFP, HDMI Type D, HD Video (3G), Single Receive , Medium Reach, Non-MSA General Availability
22 SFP-HHDVT1-0000-MN SFP, HDMI Type D, HD Video (3G), Single Transmit , Medium Reach, Non-MSA General Availability
23 SFP-HUDVT1-0000-M SFP, HDMI Type D, UHD Video (4K), Single Transmit , Medium Reach, MSA General Availability
24 SFP-HUDVT1-0000-MN SFP, HDMI Type D, UHD Video (4K), Single Transmit , Medium Reach, Non-MSA General Availability
