T1/E1/PRI Fiber Products

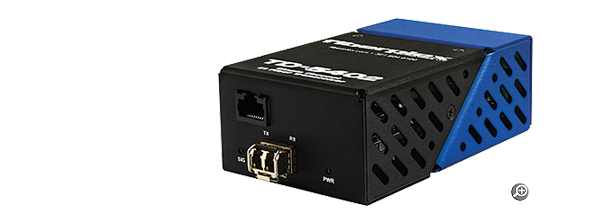

FiberPlex TD-5402 Fiber Optic Isolator/Converter/Modem - T1/E1 or ISDN PRI; industrial packaging



The TD-5400 Series are T1/E1 Fiber Extenders designed in Industrial Packaging and providing Isolation, Conversion and Extension of T1/E1/PRI services.


Overview
The TD-5401 and TD-5402 provides electrical isolation and extension of T1 and E1 signals. These units are ideally suited for T1/E1 trunk or backhaul or for the extension of ISDN Primary BRI, PBX and SATCOM links. Traditional E1 cabling is limited to a maximum distance of 4800 ft (1.46 km), but multimode optics on the unit can extend the distance to 1.2 miles (2 km), while singlemode optics can further extend the distance to 20km.

The unit can be used in areas of high electrical noise or in and out of RF shielded enclosures. The fiber optic cable is not susceptible to interference caused by impulse noise, crosstalk, or EMI. Privacy of communications is also enhanced because the fiber optic cable does not radiate any emissions.

Applications
A standard link would consist of one unit at each end of a fiber cable connection. These units create a simple plug and play point to point fiber extension for T1 or E1 circuits which makes deployment of circuit extensions fast and easy. Due to the flexible nature of SFP modules, the SFP version of this unit can accommodate a variety of singlemode, multimode, BiDi or CWDM optical modules providing maximum flexibility.

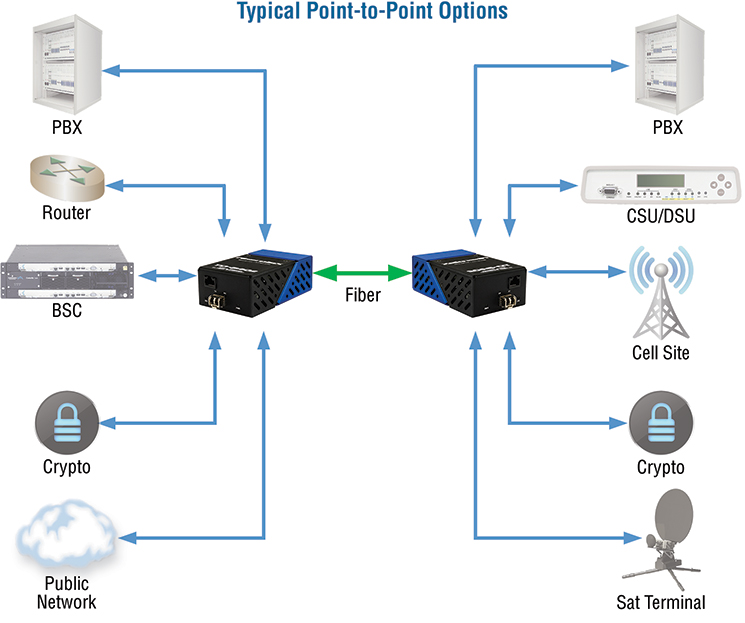

TD-5401 applications


Features
  • Supports Euro ISDN PRI (Primary Rate Interface) services, also known as PRA (Primary Rate Access)
  • TD-5401 passes 23B+D transparently; TD-5402 passes 30B+D transparently
  • Multimode extension of up to 1.2 miles (2 km)
  • Singlemode extension up to 12.4 miles (20 km) or more
  • Data Rate: 1.544 Mbps (T1) or 2.048 Mbps (E1)
  • Available with a variety of mounting options including DIN rail, NEMA enclosures and 1U rack tray mounting
  • Power Adapter Included

Ordering
# Model # Description Availability
1 TD-5402-L22 Isolator for E1 Interface, 1310nm Multimode LC optics, TD Package, Includes AC  Power Adapter Special Order

 Accessories

2 TD-5402-L5B Isolator for E1 Interface, 1310nm Singlemode LC optics, TD Package, Includes AC  Power Adapter General Availability

 Accessories
