FiberPlex TTM FiberPlex 6-Position Truss Mount (TTM) Solution For TD Series Modules With 16-Channel Modular Panel



FiberPlex 6-Position Truss Mount (TTM) Solution For TD Series Modules With 16-Channel Modular Panel

Overview
Another complement to the incredible flexibility of the FiberPlex ‘TD Series’ of fiber optic modules, the TTM provides connection, mounting, power, and cable management for up to 6 front facing TD modules in a rugged aluminum truss mountable package. This system also functions very well as a convenient, portable “lunchbox” solution.

Each of the 16 channels of the modular TTM rear panel can accommodate any Neutrik™ D Series connector, LC and ST barrel connectors, DB9 connectors, etc. The unused positions are simply fitted with a blank panel. In addition, 4 front Aux positions can be fitted with multiple connector options providing a true in-line mounting system.

The integrated key-hole mounting holes on the bottom of the TD units lock securely on mating studs while a rear retention bar holds them securely in place.

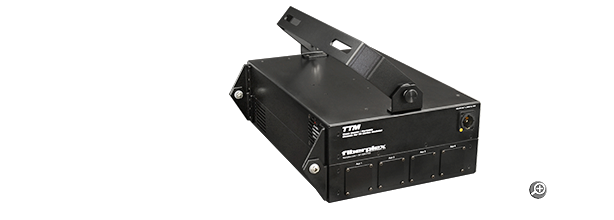

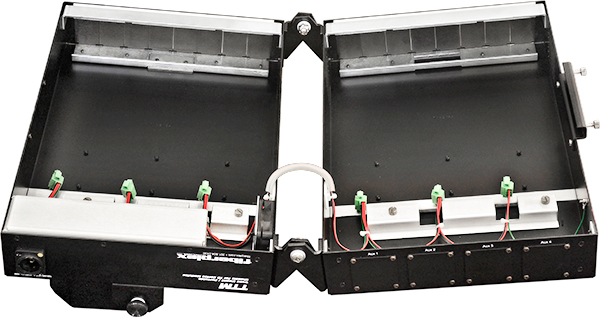

Empty Opened TTM

A 6 position power wiring harness and included AC power supply provides, not just 9 VDC power, but a positive earth ground to the modules via a positive locking Neutrik™ powerCON TRUE1 connector. Managing all of that cabling and fiber can sometimes be quite a chore, the TTM allows a simple solution to put maximum capacity and flexibility into a single 1U space.

Applications
  • Broadcast
  • Live Production
  • HD Projector Distribution
  • A/V Installations

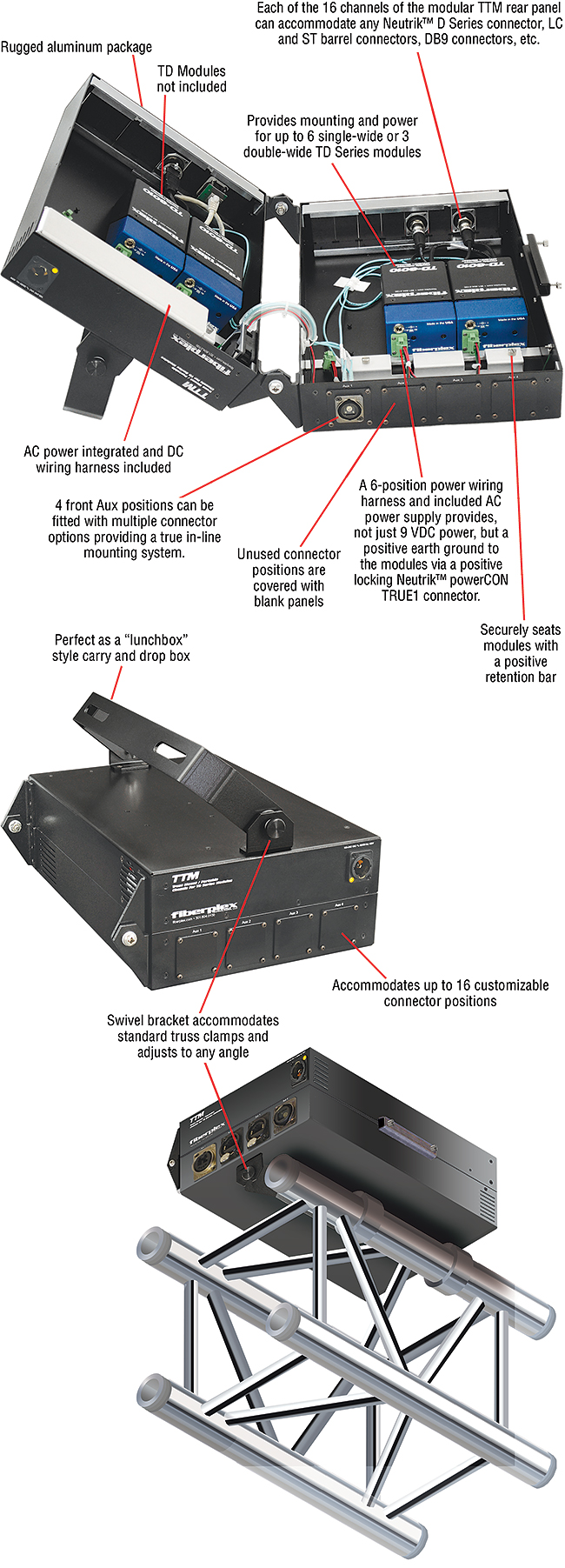

RMC-5000 applications


Features
  • Provides mounting and power for up to 6 single wide or 3 double wide TD Series modules
  • Perfect for Truss Mount applications
  • Perfect as a "lunchbox" style carry and drop box
  • Accommodates up to 16 customizable connector positions
  • Plates available for standard Neutrik™ D Series connectors, LC and ST barrels, DE-9, etc
  • Selected connectors included
  • Reconfigure in minutes
  • Securely seats modules with positive retention bar
  • AC Power integrated and DC wiring harness included
  • Convenient cable tray for clean installation
  • Swivel bracket accommodates standard truss clamps and adjusts to any angle
