FiberPlex FP2008E Managed Industrial Gigabit Ethernet Switch 10 Port, 8 Copper 10/100/1000 + 2 x GigE SFP; industrial packaging

Overview
Patton’s FP2008E Managed Industrial Gigabit Ethernet Switch supports industrial applications requiring high bandwidth or high density connections. The FP2008E is a fully manageable Layer 2 Ethernet switch, pre-loaded with a user-friendly web management console design. Ring network redundancy is provided by MSTP/RSTP and open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol which has a < 50ms network recovery time. Advanced L2 network filtering and prioritization include IGMP, VLAN, QoS/CoS/ToS. Efficient monitoring and security can be achieved through SNMPv1/v2/v3, RMON, port mirroring, 802.1x, HTTPS, SSH/SSL.

The FP2008E is housed in a sturdy IP30-rated DIN-rail enclosure with wall mount options. The physical layer interfaces include 8 RJ45 10/100/1000 Ethernet ports and two Gigabit SFP+ slots that can be used for fiber trunk connections. To ensure operation in harsh environments, the FP2008E provides additional EFT and ESD protection that prevent unregulated voltage or harmful transients, and has an operating temperature rating of -40 to 167°F (-40 to 75°C).

SFP Ordering Information
Fiber SFP Data Module
Copper SFP Modules

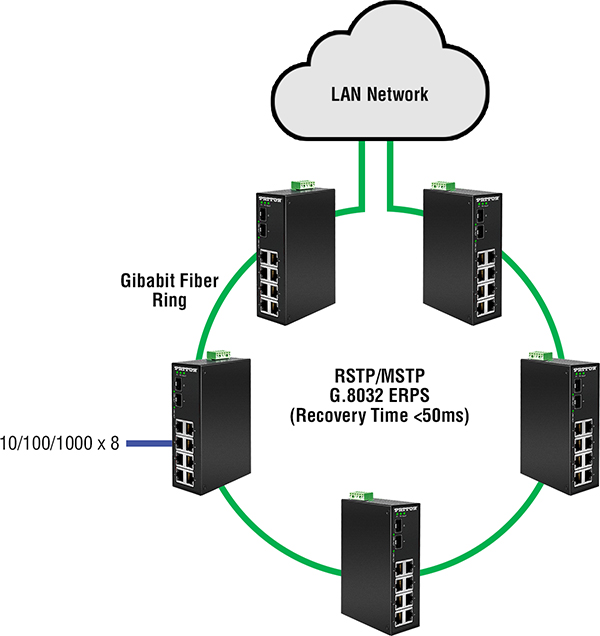

Applications

Features

• System Interface/Performance - Supports auto MDI/MDI-X function
  10 ports include 8 10/100/1000TX RJ45 ports and 2 100/1000 SFP cages
  Network redundancy features:
  • Spanning Tree: RSTP/MSTP
  • Ring Protection: G.8032 ERPS
  Traffic prioritization features:
  • IEEE802.1Q VLAN
  • IEEE802.1p; CoS/ToS
  IGMPv1/v2 up to 256 groups
  8K MAC address table
  9.6K Jumbo frame supports
  ESD protection: 6,000 VDC
• Power Input - Redundant power input design: 12–48 VDC
  Built-in relay output for power failure detection
  Surge protection: 2,000 VDC support
• Extended Operating Temperature - -40 to 167°F (-40 to 75°C)
• Case/Installation - IP30 rugged metal case
  DIN-rail and wall mount support

Ordering

# Model # Description Availability 1 FP2008E/2SFP/DC Managed Industrial Gigabit Ethernet Switch; 8 x 10/100/1000; 2 x GigE SFP; -40 to 75C; 12-48 VDC input General Availability    Accessories Additional Charge: Power Plugs & Cords 26000002   (Qty: 1) PCLIP, EU, FOR PS-03671H1-020 Power Supply 25000047   (Qty: 1) Industrial AC/DC DIN Rail 36 Watt Power Supply, HDR-30-48, 48VDC/0.75A output, 85-264VAC input; -30 to 70C PS-03671H1-020   (Qty: 1) Extended Temperature AC Universal Power Adapter; -40 to 85C; 21-27V; 15W; Open End SFP Data Singlemode SFP SFP-SC24XC-3131-B SFP, Optical Singlemode LC, 1.25GB (OC24), Data Transceiver, TX:1310 nm RX:1310 nm, 20km, MSA SFP-SC48XC-3131-B SFP, Optical Singlemode LC, 2.5GB (OC48), Data Transceiver, TX:1310 nm RX:1310 nm, 20km, MSA SFP-SC92XC-3131-A SFP, Optical Singlemode LC, 10GB (OC192), Data Transceiver, TX:1310 nm RX:1310 nm, 10km, MSA Data Multimode SFP SFP-MC03XC-3131-2 SFP, Optical, Multimode, 155 Mbps (OC3), 1310nm Transceiver, 2Km SFP-MC24XC-3131-2 SFP, Optical, Multimode, 1.25 Gbps (OC24), 1310nm Transceiver, 2Km SFP-MC24XC-8585-0 SFP, Optical, Multimode, 1.25 Gbps (OC24), 850nm Transceiver, <500m SFP-MC92XC-3131-1 SFP, Optical Multimode LC, 10GB (OC192), Data Transceiver, TX:1310 nm RX:1310 nm, < 2km, MSA SFP-MC92XC-8585-0 SFP, Optical Multimode LC, 10GB (OC192), Data Transceiver, TX:850 nm RX:850 nm, < 500m, MSA SFP-SC03XC-3131-B SFP, 155MB TX/RX 1310nm 20km MSA Copper Ethernet SFP SFP-RTGTXC-0000-0 SFP, RJ45, Copper 10/100/1000 Ethernet Transceiver, MSA
