Industrial Copper/Fiber/SFP Ethernet Switches
FiberPlex FP2008EAT Managed Industrial Gigabit PoE+ Switch 10 Port, 8 Copper 10/100/1000 + 2 x GigE SFP; industrial packaging

Overview
Patton’s FP2008E/AT Managed Industrial Gigabit Power Over Ethernet Switch supports industrial applications requiring high bandwidth or high density connections. The FP2008E/AT is a fully manageable Layer 2 PoE+ switch, pre-loaded with a user-friendly web management console design. Ring network redundancy is provided by MSTP/RSTP and open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol which has a < 50ms network recovery time. Advanced L2 network filtering and prioritization include IGMP, VLAN, QoS/CoS/ToS. Efficient monitoring and security can be achieved through SNMPv1/v2/v3, RMON, port mirroring, 802.1x, HTTPS, SSH/SSL.

The FP2008E/AT is housed in a sturdy IP30-rated DIN-rail enclosure with wall mount options. The physical layer interfaces include 8 x RJ45 10/100/1000 Ethernet ports, capable of providing up to 30W of PoE+ to PoE+ enabled end-points and two Gigabit SFP+ slots that can be used for fiber trunk connections. To ensure operation in harsh environments, the FP2008E/AT provides additional EFT and ESD protection that prevents unregulated voltage or harmful transients, and has an operating temperature rating of -40 to 167°F (-40 to 75°C).

SFP Ordering Information
Fiber SFP Data Module
Copper SFP Modules

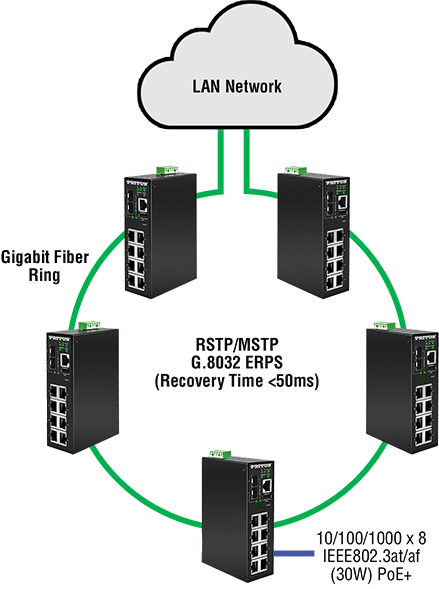

Applications

Features

• System Interface/Performance - Supports auto MDI/MDI-X function
  10 ports include 8 10/100/1000TX RJ45 IEEE802.3at/af (30W) compliant ports and 2 100/1000 SFP cages
  Network redundancy features:
  • Spanning Tree: RSTP/MSTP
  • Ring Protection: G.8032 ERPS
  Traffic prioritization features:
  • IEEE802.1Q VLAN
  • IEEE802.1p; CoS/ToS
  IGMPv1/v2 up to 256 groups
  8K MAC address table
  9.6K Jumbo frame supports
  ESD protection: 6,000 VDC
• Power Input - Redundant power input design: 48–55 VDC
  Built-in relay output for power failure detection
  PoE+ Ping Alarm for PoE+ port power cycling
  Surge protection: 2,000 VDC support
• Extended Operating Temperature - -40 to 167°F (-40 to 75°C)
• Case/Installation - IP30 rugged metal case
  DIN-rail and wall mount support

Ordering

# Model # Description Availability 1 FP2008E/2SFP/8AT/24DC Managed Industrial PoE+ Ethernet Switch; 8 x PoE+ 10/100/1000 (30 watts/port); 2x GigE SFP; - 40 -75C, 12-36VDC input General Availability    Accessories Additional Charge: SFP Data Singlemode SFP SFP-SC24XC-3131-B SFP, Optical Singlemode LC, 1.25GB (OC24), Data Transceiver, TX:1310 nm RX:1310 nm, 20km, MSA SFP-SC48XC-3131-B SFP, Optical Singlemode LC, 2.5GB (OC48), Data Transceiver, TX:1310 nm RX:1310 nm, 20km, MSA SFP-SC92XC-3131-A SFP, Optical Singlemode LC, 10GB (OC192), Data Transceiver, TX:1310 nm RX:1310 nm, 10km, MSA Data Multimode SFP SFP-MC03XC-3131-2 SFP, Optical, Multimode, 155 Mbps (OC3), 1310nm Transceiver, 2Km SFP-MC24XC-3131-2 SFP, Optical, Multimode, 1.25 Gbps (OC24), 1310nm Transceiver, 2Km SFP-MC24XC-8585-0 SFP, Optical, Multimode, 1.25 Gbps (OC24), 850nm Transceiver, <500m SFP-MC92XC-8585-0 SFP, Optical Multimode LC, 10GB (OC192), Data Transceiver, TX:850 nm RX:850 nm, < 500m, MSA SFP-SC03XC-3131-B SFP, 155MB TX/RX 1310nm 20km MSA Copper Ethernet SFP SFP-RTGTXC-0000-0 SFP, RJ45, Copper 10/100/1000 Ethernet Transceiver, MSA 2 FP2008E/2SFP/8AT/48DC Managed Industrial PoE+ Ethernet Switch; 8 x PoE+ 10/100/1000 (30 watts/port); 2x GigE SFP; - 40 -75C, 48-55VDC input General Availability    Accessories Additional Charge: Power Supply 25000044   (Qty: 1) Industrial AC/DC DIN Rail 150Watt Power Supply, HDR-150-48, 48VDC/3.2A output, 85-264VAC input; -30 to 70C 25000045   (Qty: 1) Industrial AC/DC DIN Rail 60 Watt Power Supply, HDR-60-48, 48VDC/1.25A output, 85-264VAC input; -30 to 70C 25000046   (Qty: 1) Industrial AC/DC DIN Rail 480 Watt Power Supply, NDR-480-48, 48VDC/10A output, 90-264VAC input; -20 to 70C 25000048   (Qty: 1) Industrial AC/DC DIN Rail 240 Watt Power Supply, DRP-240-48, 48VDC/5A output, 85-264VAC input; -10 to 70C PS-03671H1-021   (Qty: 1) AC/DC,UNIVERSAL INPUT,54V,1.2A,65W,DESKTOP SFP Copper Ethernet SFP   (Qty: 2) Data Multimode SFP   (Qty: 2) Data Singlemode SFP   (Qty: 2) Data Singlemode SFP SFP-SC24XC-3131-B SFP, Optical Singlemode LC, 1.25GB (OC24), Data Transceiver, TX:1310 nm RX:1310 nm, 20km, MSA SFP-SC48XC-3131-B SFP, Optical Singlemode LC, 2.5GB (OC48), Data Transceiver, TX:1310 nm RX:1310 nm, 20km, MSA SFP-SC92XC-3131-A SFP, Optical Singlemode LC, 10GB (OC192), Data Transceiver, TX:1310 nm RX:1310 nm, 10km, MSA Data Multimode SFP SFP-MC03XC-3131-2 SFP, Optical, Multimode, 155 Mbps (OC3), 1310nm Transceiver, 2Km SFP-MC24XC-3131-2 SFP, Optical, Multimode, 1.25 Gbps (OC24), 1310nm Transceiver, 2Km SFP-MC24XC-8585-0 SFP, Optical, Multimode, 1.25 Gbps (OC24), 850nm Transceiver, <500m SFP-MC92XC-8585-0 SFP, Optical Multimode LC, 10GB (OC192), Data Transceiver, TX:850 nm RX:850 nm, < 500m, MSA SFP-SC03XC-3131-B SFP, 155MB TX/RX 1310nm 20km MSA Copper Ethernet SFP SFP-RTGTXC-0000-0 SFP, RJ45, Copper 10/100/1000 Ethernet Transceiver, MSA
