Open Gateway Appliances
SmartNode SNOGA SmartNode Open Gateway Appliance (SNOGA) Quad Core 2.0 GHz



This open hardware platform, with its integrated VoIP Gateway, is ready for the operating system, IP-PBX, or Unified Communications software of your choice.

Overview
Patton’s SmartNode Open Gateway Appliance (SNOGA) enables industry peers or integrators to simply buy the unit and install their software of choice, or partner with Patton to create a custom OEM solution for any number of applications. With the ability to run any IPPBX, IVR solution, router, SBC, call recorder, or call accounting software, alongside any one of Patton’s robust Gateways, the SNOGA opens the door to endless possibilities and cus- tomer satisfaction, every time.

The Open Gateway Appliance is a convenient “one box” IP-PBX, unified communications, or business phones system solution. With the built-in VoIP Gateway, the Open Gateway Appliance eliminates interoperability obstacles for companies that want to keep their legacy equipment including PBXs, phones, fax equipment and POTS lines. Configuration options include a range of analog FXS/FXO and/or ISDN BRI/PRI gateways coupled with the industry standard miniITX PC board.



Applications

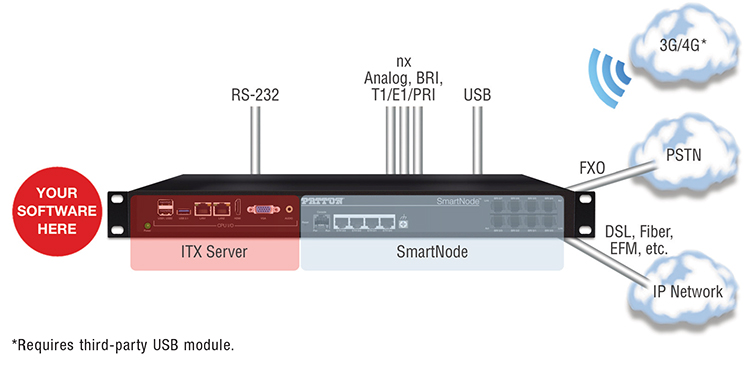

SmartNode Open Gateway Appliance app

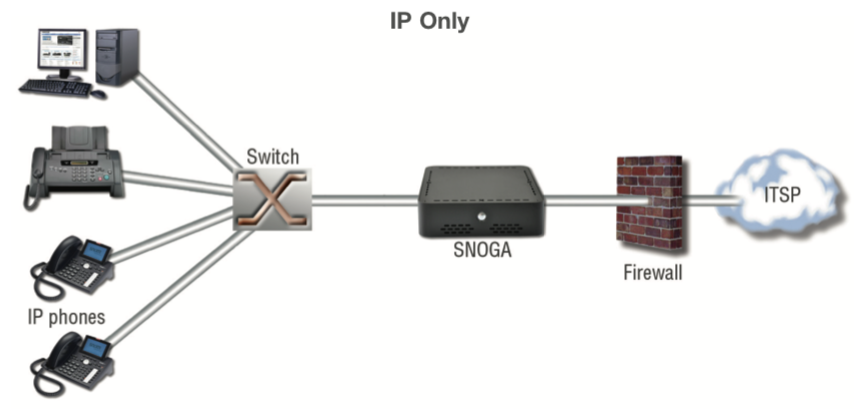

SmartNode Open Gateway Appliance app - ip only


Features
  • Integrated miniITX PC Board:
    • Standard platform
    • Flexible options
  • Supports Any Operating System—Windows or any flavor of Linux.
  • Fully Customizable—Useful for a variety of communication software including IP-PBX, business-phone-system, unified-communications
    router, session border controller, call-recording, or call-accounting.
  • Monitoring and Management—Leverage the Patton EMS system together with your preferred software on the SmartNode Open Gateway Appliance to be monitored and managed.
  • Provisioning—Using the Patton Redirection Service, the Open Gateway Appliance can be provisioned with zero touch at the customer site.
  • Fits Your Network:
    • BYOP (Bring your own phone)—Choose your own hardware, whether it is IP phones or softphones, computers, tablet computers, mobile phones; no vendor lock-in.
    • Keep Your Existing Equipment—Built-in gateway connects existing analog/ISDN equipment.
    • SIP Trunks or PSTN—Save on monthly call costs using SIP Trunks or receive and make calls via the standard PSTN.
  • Why SmartNode™?
    • Patton Quality
    • Made in the USA
    • Unrivaled Customer Support
    • FREE Support and Upgrades

Ordering
# Model # Description Availability
1 SNOGA/1E15V/EUI SmartNode Open Gateway Appliance, 1 T1/E1 PRI VoIP GW-Router, 2x GigEthernet, 15 VoIP channels; upgradeable to 30, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories

2 SNOGA/1E30V/EUI SmartNode Open Gateway Appliance, 1 T1/E1 PRI VoIP GW-Router, 2x GigEthernet, 30 VoIP channels; not upgradeable , External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories

3 SNOGA/2BIS2JS2JO8V/EUI SmartNode Open Gateway Appliance -Router, 2 BRI, 2 FXS, 2 FXO, 8 VoIP calls; 4 LAN/WAN Ethernet Ports ; External 100-240 power, , high-precision clock General Availability

 Accessories

4 SNOGA/4B/EUI SmartNode Open Gateway Appliance, Trinity OS, 4 SIP Sessions (SIP back-to-back calls), Upgradeable (see SNSW-1B), SIP-TLS; 4 LAN/WAN Ethernet Ports ; External 100-240V AC EUI Power General Availability

 Accessories

5 SNOGA/4BIS4JS4JO12V/EUI SmartNode Open Gateway Appliance -Router, 4 BRI, 4 FXS, 4 FXO, 12 VoIP calls; 4 LAN/WAN Ethernet Ports ; External 100-240 power, high-precision clock General Availability

 Accessories

6 SNOGA/4BIS8V/EUI SmartNode Open Gateway Appliance -Router, 4 BRI, 8 VoIP calls; 4 LAN/WAN Ethernet Ports; External 100-240 power, high-precision clock General Availability

 Accessories

7 SNOGA/4E15VR/EUI SmartNode Open Gateway Appliance, 4 T1/E1 PRI VoIP GW-Router, 2x GigEthernet, 15 VoIP channels; upgradeable to 60, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories

8 SNOGA/4JS4JO/EUI SmartNode Open Gateway Appliance, 4FXS, 4FXO, 4 LAN/WAN Ethernet Ports ; External 100-240 power General Availability

 Accessories

9 SNOGA/8BIS16V/EUI SmartNode Open Gateway Appliance -Router, 8 BRI, 16 VoIP calls; 4 LAN/WAN Ethernet Ports ; External 100-240 power, high-precision clock General Availability

 Accessories

10 SNOGA/8JS/EUI SmartNode Open Gateway Appliance -Router, 8 FXS, 8 VoIP calls; 4 LAN/WAN Ethernet Ports ; External 100-240 power General Availability

 Accessories

11 SNOGA/EUI SmartNode Open Gateway Appliance, 2 LAN/WAN Ethernet Ports ; External 100-240V AC EUI Power General Availability

 Accessories

12 SNOGA-L/1E15VHP/EUI SmartNode Open Gateway Appliance - Large, 1 T1/E1 PRI VoIP GW-Router, 2x GigEthernet, 15 VoIP channels; upgradeable to 30, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories

13 SNOGA-L/1E30VHP/EUI SmartNode Open Gateway Appliance - Large, 1 T1/E1 PRI VoIP GW-Router, 2x GigEthernet, 30 VoIP channels; not upgradeable , External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories

14 SNOGA-L/2BIS2JS2JO8V/EUI SmartNode Open Gateway Appliance - Large, Router, 2 BRI, 2 FXS, 2 FXO, 8 VoIP calls; 4 LAN/WAN Ethernet Ports ; External 100-240 power, , high-precision clock General Availability
15 SNOGA-L/4B/EUI SmartNode Open Gateway Appliance - Large, Trinity OS, 4 SIP Sessions (SIP back-to-back calls), Upgradeable (see SNSW-1B), SIP-TLS; 4 LAN/WAN Ethernet Ports ; External 100-240V AC EUI Power General Availability

 Accessories

16 SNOGA-L/4BIS4JS4JO12V/EUI SmartNode Open Gateway Appliance - Large. Router, 4 BRI, 4 FXS, 4 FXO, 12 VoIP calls; 4 LAN/WAN Ethernet Ports ; External 100-240 power, high-precision clock General Availability
17 SNOGA-L/4E15VR/EUI SmartNode Open Gateway Appliance - Large, 4 T1/E1 PRI VoIP GW-Router, 2x GigEthernet, 15 VoIP channels; upgradeable to 60, Failover Relay, External UI Power, IPv6 ready, High Precision 5ppm Clock Source General Availability

 Accessories

18 SNOGA-L/4JS4JO/EUI SmartNode Open Gateway Appliance - Large, 4FXS, 4FXO, 4 LAN/WAN Ethernet Ports ; External 100-240 power General Availability
19 SNOGA-L/8JS/EUI SmartNode Open Gateway Appliance - Large, Router, 8 FXS, 8 VoIP calls; 4 LAN/WAN Ethernet Ports ; External 100-240 power General Availability

 Accessories
