Multiple datacom devices fit side-by-side in our ultra-compact ClusterBoxes


Overview
--Image: Made in USA -- --Image: 16-Slot Mini-Rack Available -- Our miniature rack cards have a unique design: front function cards and rear interface cards that connect together on a midplane power bus. This configuration allows interface cables to remain connected while function cards are hot-swapped (and vice versa). Each ClusterBox has a power supply that services all cards in the chassis. You can configure the ClusterBox with a variety of function cards (short-range modems or SRMs, fiber modems, converters, etc.) and you can mix-and-match function cards with different interface cards.


Patton Product Compatibility Table

Device Type
Standalone Model
Compatible Rack Card
Rack Card (RC) Description
Plug-in
Short-Range
Modems
(SRM)
1000 Series
Async SRM dual RC
1004A Series
High speed multipoint dual RC
1005 Series
Async SRM dual RC
1008 Series
High speed multipoint dual RC
1009 Series
Async SRM dual RC
1010B Series
Trans Isolated SRM dual RC
1010R Series
Trans Isolated SRM dual RC
1012B Series
Async Multipoint SRM Dual RC
1015 Series
Async SRM dual RC
1016 Series
Trans Isolated SRM dual RC
1018 Series
1018RC
SLIP/PPP SRM RC
1019 Series
Trans Isolated SRM dual RC
1020 Series
1080ARC
57.6 Async./Sync. SRM RC
1025 Series
1080ARC
57.6 Async./Sync. SRM RC
1030 Series
1080ARC
57.6 Async./Sync. SRM RC
1035 Series
1045RC
32, 56 & 64 kbps Async./Sync. SRM RC
1040 Series
1080ARC
57.6 Async./Sync. SRM RC
1045 Series
1045RC
32, 56 & 64 kbps Async./Sync. SRM RC
Powered
Short-Range
Modems
(SRM)
1050 Series
1060RC
115.2 Async. SRM RC
1060 Series
1060RC
115.2 Async. SRM RC
1070 Series
1070RC
Sync. SRM RC
1080A Series
1080ARC
57.6 Async./Sync. SRM RC
Fiber
Modems
1110A Series
1110ARC
Fiber SRM RC
1140A Series
1140ARC
Fiber Optic Modem w/V.54 Diagnostics
1180 Series
1180RC
Single Fiber SRM RC
1184/85 Series
1180RC
Single Fiber SRM RC
Converters
& Modem
Eliminators
1205 Series
1205RC
V.35 Sync. Modem Eliminator RC
1206 Series
1206RC
X.21 Sync. Modem Eliminator RC
2020 Series
2020RC
CCITT V.35 to RS-232 Converter RC
2016 Series
2066RC
CCITT V.35 to X.21 Converter w/Buffer
2085 Series
2085RC
RS-232 to RS-485 Converter dual RC
2089 Series
2085RC
RS-232 to RS-485 Converter dual RC
222N Series
222NRC
RS-232 to RS-422 Converter dual RC
222N9 Series
222NRC
RS-232 to RS-422 Converter dual RC
2703 Series
2703RC
2 Mbps G.703 Modem Access Converter


Applications
1000R16

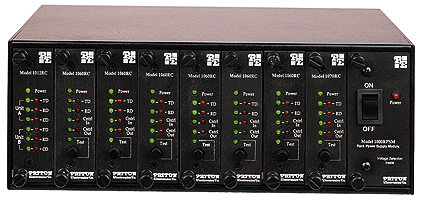

1000CU8—When you don’t need a full rack, our 8-slot ClusterBox™ gives you the power of up to 16 short hauls or converters in a single enclosure.

1000R16 rear

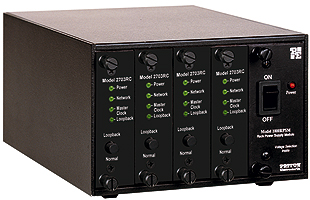

1000CU4—Our 4-slot ClusterBox™ is perfect for an office or workgroup connection. It services four to eight devices

1000R16

1000CU2—Our 2-Slot ClusterBox™ has about the same footprint as a standalone box, but gives you the flexibility of a rack.



Features
  • Multi-function—Supports interface converters, CSUs, fiber modems and virtually all Patton mini-modems.
  • Hot-swappable—Replace function cards without turning off the power.
  • Reliable—Our distributed power system gives each rack card its own power supply circuit
  • Cost Effective -- Rack-mount products you have already purchased

Ordering
# Model # Description Availability
1 1000CU2 CLUSTER UNIT, 2 MODULE End of Life-Notice
2 1000CU2E/230A CLUSTERBOX, II, 2 SLOT, 230V End of Life-Notice
3 1000CU2P/120K CLUSTERBOX II,2 SLOT UNIT End of Life-Notice
4 1000CU4E/230A CLUSTERBOX, II, 4 SLOT, 230V End of Life-Notice
5 1000CU4P/220A CLUSTERBOX IV, 4 SLOT, 220V End of Life-Notice
6 1000CU8E/230A CLUSTERBOX VIII, 8 SLOT, 230V End of Life-Notice
7 1000CU8P/24V CLUSTERBOX VIII,8 SLOT UNIT End of Life-Notice
8 1000CU8P/48V CLUSTERBOX VIII, 8 SLOT, 48V End of Life-Notice
