Overview

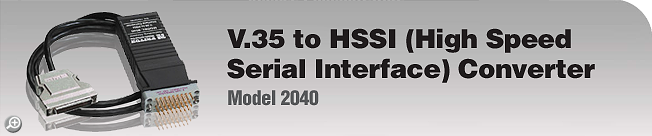

The Patton Model 2040 V.35 to High Speed Serial Interface (HSSI) converter lets a HSSI (HD-50) device communicate bi-directionally with a V.35 (M/34) device at synchronous data rates up to 10 Mbps. The Model 2040 supports all HSSI co-directional timing patterns, two loopback modes (local line and remote line), plus data and control signals.The Model 2040 is available in two versions: The Model 2040 MT-MC lets a V.35 DCE device communicate with a HSSI DTE device. The Model 2040 MC-MT lets a V.35 DTE device communicate with a HSSI DCE device. Both versions are equipped with a male M/34 connector on the converter end, and a male HD-50 on the end of a 6 foot (1.8m) cable (other connector genders and cable lengths are available on a custom basis). Power is supplied to the Model 2040 by an external wall-mount AC transformer.

Features

• Bi-Directional Conversion from V.35 to HSSI (High Speed Serial Interface)
• Support for Synchronous Data Rates up to 10 Mbps
• Transparent to Protocol-Passes Data, Control Lines and Two Loopback Modes
• M/34 and SCSI Connectors, with Integral 6 ft (1.8m) Cable
• Two Versions: V.35 (DCE) to HSSI (DTE) or HSSI (DCE) to V.35 (DTE)
• Externally AC Powered
• Made in the USA — This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Patton's American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.

Ordering

Sorry! Ordering information for this product is not publicly available at this time. Please accept our apology as we regret any inconvenience to you. For more information about the availability of this product and/or alternative solutions, please contact Patton's Product Management team at [email protected] or +1 301 975 1000
