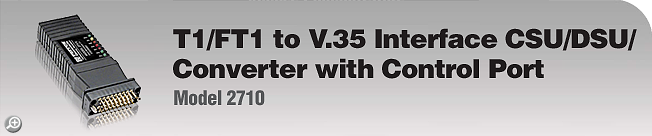

| Patton's Model 2710 Pocket-Sized T1/FT1 to V.35 Interface Converter/CSU/DSU with Control Port makes it simple and affordable to connect V.35 to T1 or Fractional T1 (Nx64) |
|
| Features |
Overview |
Applications |
Highlights |
Specs |
Ordering |
Related Info |
|
| |
- Plugs directly into V.35 interface of router, switch or multiplexer
- Connects to an unstructured 4-wire T1 circuit at 1.544 Mbps
- Supports n x 56/64 framed T1 connections from 64 kbps to 1.536 Mbps
- Data rates, clocking and LBO levels selected by internal DIP switches or via an RS-232 software control port
- Facilitates point-to-point campus communication up to 6,000 ft (1.14 miles/1.82 km)when used in pairs
- Supports D4/AMI or B8ZS/ESF line coding, loopback diagnostics
- Seven easy-to-read diagnostic LEDs
|
|
|
|
|
