Products  >  IP Routers  >  WAN Routers  >  IPLink™ Model 2884

PDF Datasheet    |  Print-friendly HTML

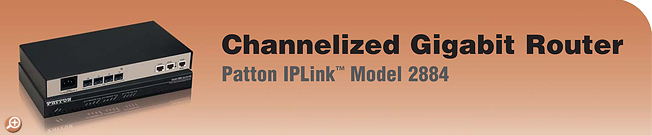

Patton’s IPLink Channelized Gigabit multi-media routers concentrate up to 124 WAN connections or bond up to 4 T1/E1s for an 8-Mbps link to serve high-density and bandwidth hungry applications.
Features Overview Applications Highlights Specs Ordering Related Info
	Features & Benefits 2/4 port Channelized E1 Router--Support up to 124 PPP sessions providing 124 subnets or 124 E1 Ethernet Bridge interfaces. 2/4 port Channelized T1 Router--Support up to 96 PPP sessions providing 96 subnets or 96 T1 Ethernet Bridge interfaces. ML-PPP Expands Bandwidth--Bind any number of channels or T1/E1 ports to create up to an 8Mbps WAN link. Two port Gigabit Ethernet--With Dual 10/100/1000, auto-MDI ports easily connect to any LAN infrastructure. Per Flow QoS--Traffic rates are set through ACLs that shape and police VLAN and IP traffic. Stateful Firewall Inspection--Stateful firewall inspection is accomplished through ACLs that filter by source and destination IP address, IP port and protocol. Connection tracking is included. VLAN Tagging--VLAN tagging and processing is configurable on any T1/E1 channel or Ethernet port. GRE--Support routed point-to-point traffic tunneling over IPv4 networks. PPTP--Create Layer 2 VPNs with PPTP. Supporting both PAC and PNS, the 2884 can easily initiate or receive VPN connections from remote routers. Easy Management--Easily manage the 2884 router via an HTTP/web interface, a CLI accessible via the VT100 console or through Telnet/SSH, or via SNMP.
