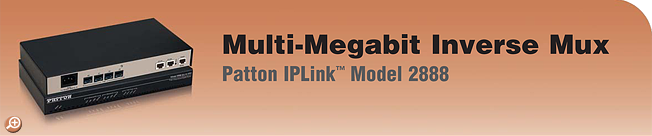

Patton’s IPLink™ Model 2888 Multi-Megabit Inverse Multiplexer is a Layer 2 T1/E1 Bridge that carries large Ethernet frames and jumbo Ethernet frames over Bonded T1/E1s to bridge the bandwidth gap between a single T1/E1 and a T3/E3.
Features Overview Applications Highlights Specs Ordering Related Info
	Features & Benefits 2/4-port Bonded T1/E1 Inverse Mux—Using ML-PPP bond from 2-4 T1/E1 ports to create a high bandwidth WAN link over TDM. ML-PPP Expands Bandwidth—Bind any number of channels or T1/E1 ports to create up to an 8-Mbps resilient WAN link. Bonded T1/E1 Ethernet Extension—Transparently extend large and jumbo Ethernet frames over the WAN, bonding T1/E1 circuits. Dual Gigabit Ethernet Ports—With dual 10/100/1000, auto-MDI ports easily connect to any LAN infrastructure. End-to-end QoS—Inspect and preserve VLAN priority as well as ToS/Diffserv bits to maintain end-to-end QoS. VLAN Trunk Extension—Tag untagged traffic, preserve VLAN QoS, or simply transparently forward VLAN traffic. Layer 3 Traffic Filtering—Assign an ACL to the bridge or VLAN connection and filter on. VLAN Tagging—VLAN tagging and processing is configurable on any T1/E1 channel or Ethernet port. Easy Management—Easily manage the 2888 router via an HTTP/web interface, a CLI accessible via the VT100 console or through Telnet/SSH, or via SNMP.
