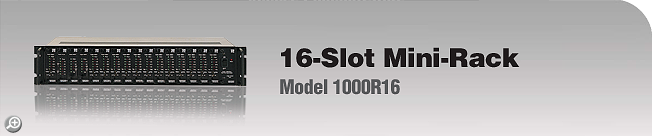

Multiple datacom devices fit side-by-side in our mini-rack

Features

Overview

Applications

Highlights

Specs

Ordering

Related Info

Overview

Our miniature rack cards have a unique design: front function cards and rear interface cards that connect together on a midplane power bus. This configuration allows interface cables to remain connected while function cards are hot-swapped (and vice versa). Each mini-rack has a power supply that services all cards in the chassis. You can configure the mini-rack with a variety of function cards (short-range modems or SRMs, fiber modems, converters, etc.) and you can mix-and-match function cards with different interface cards.

Patton Product Compatibility Table

Device Type	Standalone Model	Compatible Rack Card	Rack Card (RC) Description
Plug-in Short-Range Modems (SRM)	1000 Series	1000RC	Async SRM dual RC
	1004A Series	1004ARC	High speed multipoint dual RC
	1005 Series	1000RC	Async SRM dual RC
	1008 Series	1004ARC	High speed multipoint dual RC
	1009 Series	1000RC	Async SRM dual RC
	1010B Series	1010RC	Trans Isolated SRM dual RC
	1010R Series	1010RC	Trans Isolated SRM dual RC
	1012B Series	1012ARC	Async Multipoint SRM Dual RC
	1015 Series	1000RC	Async SRM dual RC
	1016 Series	1010RC	Trans Isolated SRM dual RC
	1018 Series	1018RC	SLIP/PPP SRM RC
	1019 Series	1010RC	Trans Isolated SRM dual RC
	1020 Series	1080ARC	57.6 Async./Sync. SRM RC
	1025 Series	1080ARC	57.6 Async./Sync. SRM RC
	1030 Series	1080ARC	57.6 Async./Sync. SRM RC
	1035 Series	1045RC	32, 56 & 64 kbps Async./Sync. SRM RC
	1040 Series	1080ARC	57.6 Async./Sync. SRM RC
	1045 Series	1045RC	32, 56 & 64 kbps Async./Sync. SRM RC
Powered Short-Range Modems (SRM)	1050 Series	1060RC	115.2 Async. SRM RC
	1060 Series	1060RC	115.2 Async. SRM RC
	1070 Series	1070RC	Sync. SRM RC
	1080A Series	1080ARC	57.6 Async./Sync. SRM RC
Fiber Modems	1110A Series	1110ARC	Fiber SRM RC
	1140A Series	1140ARC	Fiber Optic Modem w/V.54 Diagnostics
	1180 Series	1180RC	Single Fiber SRM RC
	1184/85 Series	1180RC	Single Fiber SRM RC
Converters & Modem Eliminators	1205 Series	1205RC	V.35 Sync. Modem Eliminator RC
	1206 Series	1206RC	X.21 Sync. Modem Eliminator RC
	2020 Series	2020RC	CCITT V.35 to RS-232 Converter RC
	2016 Series	2066RC	CCITT V.35 to X.21 Converter w/Buffer
	2085 Series	2085RC	RS-232 to RS-485 Converter dual RC
	2089 Series	2085RC	RS-232 to RS-485 Converter dual RC
	222N Series	222NRC	RS-232 to RS-422 Converter dual RC
	222N9 Series	222NRC	RS-232 to RS-422 Converter dual RC
	2703 Series	2703RC	2 Mbps G.703 Modem Access Converter
