Model 2157 This legacy product is not recommended for new installations.

End-of-Life Notice (PDF) |  This legacy product is not recommended for new installations. For the next-generation alternative, please see the CopperLink™ 1314 Auto-Rate Ethernet Extender.

Contact Us
Sales: sales@patton.com
Direct: +1 301 975 1000
Support: support@patton.com
Direct: +1 301 975 1007
Have Us Contact You
or
Login
 Connect with us
Twitter Linkedin Facebook Youtube

View All

Features

Overview

Applications

Specs

Ordering

Services



Features
--Image: Made in USA -- --Image: RACKABLE! Rack Mount Available --
  • High Speed Extension—With the Model 2157 you get speeds up to 4.6 Mbps over just a single twisted pair of copper
  • Auto-rate Selection—Just plug the units in, and they will determine the maximum rate possible for the connection
  • CopperLink 2-Wire Connection—Easy 2-wire CopperLink connection via built-in RJ-11 port
  • Auto-sensing Ethernet—Auto 10 or 100Base-T and full or half-duplex Ethernet operation
  • Transparent LAN Bridging—Passes higher layer protocols and supports 802.1Q VLAN tagging
  • Automatic Learning, Aging, and Filtering—Only allows packets with addresses outside the LAN to be forwarded
  • Made in the USA — This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Patton's American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.
Overview
LAN extension doesn't have to be expensive or difficult. The 2157 LAN Extenders are easy to use and take advantage of the existing copper twisted-pair infrastructure to connect LANs at rates up to 4.6 Mbps.

Whether it's connecting corporate LANs or remote offices, the 2157 is the simple solution for ensuring the best combination of speed and distance in the industry. Many LAN extenders are set for a single rate, or require difficult configurations in order to connect LANs at different distances. With its auto-rate adaptation feature, the Model 2157 ensures that users get the highest speed possible for the distances they are trying to reach. To make it even simpler to use, the Model 2157 comes with a built in MDI-X switch to allow easy connection to LANs or PCs with no need for worrying about whether you have a cross-over cable or not. Setup is as consists of connecting the Ethernet port, connecting the copper twisted pair, and powering up the units! Patton's Model 2157 is the perfect fit for cost-effective, simple, and efficient LAN extension!

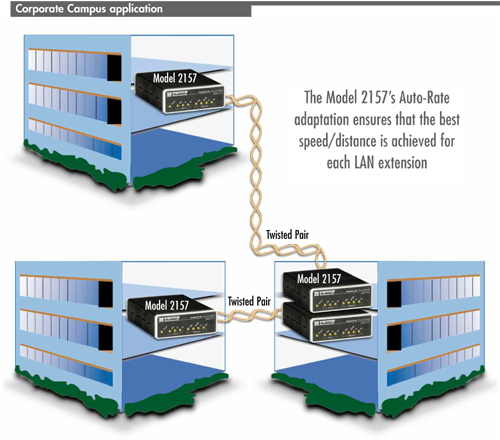

Model 2157 Extension Distances
Line Rate
No Noise
26g (0.4 mm)
24g (0.5 mm)
22g (0.6 mm)
20g (0.8 mm)
19g (0.9 mm)
kbps
miles
km
miles
km
miles
km
miles
km
miles
km
200
4.4
7.2
5.7
9.4
8.0
13.1
10.3
16.8
12.1
19.7
392
4.0
6.6
5.4
8.8
7.5
12.3
8.7
15.8
10.8
17.5
520
3.8
6.2
5.1
8.3
7.1
11.6
9.2
14.9
9.7
15.8
776
3.5
5.6
4.6
7.5
6.0
9.8
7.8
12.7
8.8
14.3
1160
3.0
4.9
4.0
6.4
5.2
8.4
6.7
11.0
7.5
12.3
1544
2.8
4.6
3.7
6.1
4.9
7.9
6.4
10.3
6.7
11.0
2056
2.5
4.0
3.3
5.3
4.2
6.9
5.6
9.0
5.9
9.6
2312
2.3
3.8
3.1
5.0
4.0
6.6
5.3
8.6
5.6
9.1
2696
2.3
3.7
3.0
5.0
4.0
6.4
5.2
8.4
5.5
8.9
3080
2.2
3.6
3.0
4.8
3.9
6.3
5.0
8.2
5.4
8.7
3464
2.1
3.4
2.7
4.5
3.6
5.8
4.7
7.6
4.9
8.8
3848
1.9
3.1
2.5
4.1
3.3
5.3
4.3
7.0
4.5
7.4
4232
1.7
2.8
2.3
3.7
2.9
4.8
3.9
6.3
4.1
6.6
4616
1.5
2.5
2.0
3.3
2.6
4.2
3.4
5.5
3.6
5.9

CopperLink™ Copper Ethernet Extenders

Take your network connections faster and farther over existing voice-grade wire with Patton CopperLink™ Ethernet Extenders!

# of
Ethernet Ports
# of wire pairs
Max. Speed (Mbps)
Distance at Max. Speed
CopperLink™
Model
2
1
N/A
2,625 ft/0.8 km
2
1
100
500 ft/0.15 km
4
4
45.6
4,600 ft/1.4 km
4
2
22.8
4,600 ft/1.4 km
2
1
15
2,953 ft/0.9 km
4
1
11.4
4,593 ft/1.4 km
2
1
10
4,265 ft/1.3 km
1
1
4.6
10,827 ft/3.3 km
1
1
2.3
16,404 ft/5.0 km


Applications
Model


Ordering
# Model # Description Availability
1 2157/L/UI CopperLink Rate Adaptive 4.6 Mbps Ethernet Extender 1 Local Unit 100-240V Power Supply Included Contact us for Availability
