Features
- TDM, Packet, DSL, and RAS—Put it all together and enjoy true multi-service networking. Mix and match system
cards and deliver DSL, RAS, TDM, and Packet/IP services.
- CompactPCI Open System—Flexible, rugged, and standard ensures it’s a platform for now and the future.
- 2U, 4U, 9U Platforms—Scale your service with a best-fit solution. Get 4, 8, or 16 slots for any system card and scale your deployment.
- High Availability Hot-Swap—All components are field replaceable & hotswappable, so you can perform maintenance without powering down the system.
- AC or DC Power Options—Universal AC or Telco DC power modules offer high power with full 1+1 or N+1 redundancy. Mixed AC/DC options also available.
- Alarm Management—Integrated management module monitors fan tachometers, voltage, and temperature, and provides relay output.
Overview
Know no boundaries. Patton’s ForeFront™ Model 6486 delivers a carrier-class access platform with next-generation network delivery of narrowband, broadband, and multimedia services. Using industry-standard CompactPCI open-systems architecture, the Model 6486 allows deployment of Patton’s TDM, packet, dedicated, and dial-up system cards as well as third-party cPCI resources…all within the same chassis!
The ForeFront System offers a robust, reliable solution complete with power distribution, thermal management, and high-speed backplanes. The shelf fits into a standard 19-in. rack. Each shelf has integrated cooling and flexible power options, and boasts 1+1 or N+1 redundancy with AC or DC combinations. The high speed backplane supports a wide variety of multimedia—from TDM nx64 to packet, IP, and cell traffic. Field serviceable hot-swappable components provide high availability while the advanced design avoids single points of failure.
Select any combination of system, peripheral, media, trunking, and matrix cards for a total access solution. For network services, choose from a wide variety of system cards—from DSL to RAS; Packet/DSLAM to DACS. For complete flexibility, system cards can be mixed in any combination.
ForeFront™ Access Infrastructure Solutions (AIS) support users with solutions that will grow as technology grows.

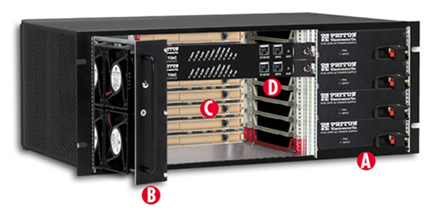

ForeFront FullPipe™
4U-high, 8-slot cPCI-based access node |
 |
1+1
or N+1 AC or DC power supplies with full redundancy |
 |
Integrated
thermal management with field replaceable fan trays |
 |
ForeFront
Access Bus provides TDM, Packet, Ethernet/IP, Cell, Management, and Power
Connectivity |
 |
All
ForeFront platforms are cPCI open systems architecture and interchangeably
receives Patton and other industry standard system elements |
Specifications
| Mechanical
|
IEEE 1101.10
compliant. Meets UL, CSA, FCC, NEBS G4 1089 Core & GR63 Core, and CE requirements. |
| Module
keying |
4HP module
spacing, cardguide provides for keying and alignment pin in accordance with
IEEE 1101.10, section 6 |
| Backplane |
Sub-rack dimensional
format accepts module with injector/ejector handles, as specified in IEEE
1101.10, section 8. |
| Materials
|
Outer
Shell (Half Pipe, Full Pipe): Galvanized Steel (0.05”)
Outer
Shell (Xtreme): AL ALY 5052 series
Module/backplane
rails: AL extrusion
Card guides:
Molded thermoplastic
Rear power
interface panels: AL ALY
|
| Cardguide |
Molded
plastic with snap-in ESD contacts for both plug-in module and injector/ejector
handle alignment pin. |
| Slot Configuration
|
Sub-rack
dimensional format accepts module with injector/ejector handles, as specified
in IEEE 1101.10, section 8. |
| Cooling
fan tray |
Half Pipe:
Side-to-side air flow
Full Pipe:
Side-to-side air flow
Xtreme:
Front-to-back air flow
|
| Slot configurations |
Front:
Accepts 6U x 6.3 in. (160 mm) modules
Rear
transition: Accepts 6U x 3.1 in. (80 mm) modules
|
| Dimensions |
2U, 4U, or
6U H x 19 in. W x 11.75 in. D |
| Power
Supplies |
3U-high power
supplies, AC and DC versions, can be used in any of the ForeFront Access
chassis.
High current
+5 VDC, +3.3VDC with active current sharing maintains load balance within
5% between supplies. Hot-swappable with 1+1 and N+1 redundancy.
Status indicators
for power power output and fail.
Over-temperature
protection.
DC:
Input power—36 to 72 VDC
AC:
Input power—100 to 250 VAC, 47–63 Hz
|
| Certifications |
UL1950, EN60950,
FCC Part 15 Class A, EN55022 |
Ordering Information
| Model # |
Description |
| 6486/R48 |
ForeFront 4U Chassis; Redundant DC Power; Alarm Card; |
| 6486/RUI |
ForeFront 4U Chassis; Redundant UI Power; Alarm Card; |
| 6486-XL/R48 |
ForeFront 4U Chassis; Redundant DC Power; No Alarm Card |
| 6486-XL/RUI |
ForeFront 4U Chassis; Redundant UI Power; No Alarm Card |
|

Support Services
| Item Number |
Item Description |
Price |
| SVC-P-7x24-L |
Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription over 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-7x24-M |
Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription 1,000 to 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-7x24-S |
Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription up to 1,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-SH-L |
Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription over 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-SH-M |
Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription 1,000 to 10,000 units deployed. |
Contact us for availability and pricing. |
| SVC-P-SH-S |
Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription up to 1,000 units deployed. |
Contact us for availability and pricing. |
| SVC-ENHWAR1 |
1 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR2 |
2 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR3 |
3 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR4 |
4 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-ENHWAR5 |
5 Year Enhanced Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR2 |
2 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR3 |
3 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR4 |
4 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-EXTWAR5 |
5 Year Extended Warranty |
Contact us for availability and pricing. |
| SVC-TECH-HOUR |
Network technician hour rate for Pre-config services, after hours support etc? |
Contact us for availability and pricing. |
Catalogs (PDF) -- Requires Adobe Acrobat to view |
| Patton Electronics Product Line Catalog #21 (High resolution, print quality) |
August 25, 2008 |
| Patton Electronics Product Line Catalog #21 (Low resolution, for dial-up users) |
August 25, 2008 |
Data Sheets (PDF) -- Requires Adobe Acrobat to view |
| Enhanced Warranty |
March 07, 2012 |
| ForeFront AIS CompactPCI Systems Datasheet |
July 27, 2009 |
| ForeFront AIS CompactPCI Systems Datasheet (A4 page size) |
July 27, 2009 |
Manuals (PDF) -- Requires Adobe Acrobat to view |
| Model 6400 Router Bundles Guide, Quick Start |
February 20, 2012 |
| Model 6103 User Manual |
April 08, 2009 |
| Model 6476 User Guide |
May 12, 2006 |
News Releases |
| Patton and FedEx Announce Faster, Better, Cheaper Logistics |
July 12, 2011 |
| Patton Earns ISO 9001:2008 Certificate |
April 27, 2010 |
| Patton Installs New Regional Director in Burgeoning Latin America Market |
March 09, 2009 |
| Patton Partners with JTS to Take Double Share of Japan's Network Equipment Market |
February 09, 2009 |
| Milan Sales Office Supports Rising Demand for Patton Equipment in Southern Europe |
December 16, 2008 |
| Patton Acquires OnSite Systems S10 Next-Generation SONET/SDH Solutions |
December 15, 2008 |
| Drawn by Robust Telecom Expansion, Patton-India Launches Operations in Chennai |
April 09, 2008 |
| Patton Commences 25th Year of Data and Telecom Innovations |
January 16, 2008 |
| With Over 1,000 Networking Products to Offer, Patton Publishes Dual Catalogs |
May 22, 2007 |
| Patton Receives Technology Champion Award |
February 01, 2006 |
| Enhanced Patton User Group (PUG) Features Web-Browser Interface with Searchable Archives |
May 18, 2005 |
Product/Solutions Guides (PDF) -- Requires Adobe Acrobat to view |
| Multi-Services Over SDH Solutions Guide |
March 30, 2009 |
- TDM, Packet, DSL, and RAS—Put it all together and enjoy true multi-service networking. Mix and match system
cards and deliver DSL, RAS, TDM, and Packet/IP services.
- CompactPCI Open System—Flexible, rugged, and standard ensures it’s a platform for now and the future.
- 2U, 4U, 9U Platforms—Scale your service with a best-fit solution. Get 4, 8, or 16 slots for any system card and scale your deployment.
- High Availability Hot-Swap—All components are field replaceable & hotswappable, so you can perform maintenance without powering down the system.
- AC or DC Power Options—Universal AC or Telco DC power modules offer high power with full 1+1 or N+1 redundancy. Mixed AC/DC options also available.
- Alarm Management—Integrated management module monitors fan tachometers, voltage, and temperature, and provides relay output.
Know no boundaries. Patton’s ForeFront™ Model 6486 delivers a carrier-class access platform with next-generation network delivery of narrowband, broadband, and multimedia services. Using industry-standard CompactPCI open-systems architecture, the Model 6486 allows deployment of Patton’s TDM, packet, dedicated, and dial-up system cards as well as third-party cPCI resources…all within the same chassis!
The ForeFront System offers a robust, reliable solution complete with power distribution, thermal management, and high-speed backplanes. The shelf fits into a standard 19-in. rack. Each shelf has integrated cooling and flexible power options, and boasts 1+1 or N+1 redundancy with AC or DC combinations. The high speed backplane supports a wide variety of multimedia—from TDM nx64 to packet, IP, and cell traffic. Field serviceable hot-swappable components provide high availability while the advanced design avoids single points of failure.
Select any combination of system, peripheral, media, trunking, and matrix cards for a total access solution. For network services, choose from a wide variety of system cards—from DSL to RAS; Packet/DSLAM to DACS. For complete flexibility, system cards can be mixed in any combination.
ForeFront™ Access Infrastructure Solutions (AIS) support users with solutions that will grow as technology grows.
ForeFront FullPipe™
4U-high, 8-slot cPCI-based access node |
|
1+1
or N+1 AC or DC power supplies with full redundancy |
|
Integrated
thermal management with field replaceable fan trays |
|
ForeFront
Access Bus provides TDM, Packet, Ethernet/IP, Cell, Management, and Power
Connectivity |
|
All
ForeFront platforms are cPCI open systems architecture and interchangeably
receives Patton and other industry standard system elements |
| Mechanical
|
IEEE 1101.10
compliant. Meets UL, CSA, FCC, NEBS G4 1089 Core & GR63 Core, and CE requirements. |
| Module
keying |
4HP module
spacing, cardguide provides for keying and alignment pin in accordance with
IEEE 1101.10, section 6 |
| Backplane |
Sub-rack dimensional
format accepts module with injector/ejector handles, as specified in IEEE
1101.10, section 8. |
| Materials
|
Outer
Shell (Half Pipe, Full Pipe): Galvanized Steel (0.05”)
Outer
Shell (Xtreme): AL ALY 5052 series
Module/backplane
rails: AL extrusion
Card guides:
Molded thermoplastic
Rear power
interface panels: AL ALY
|
| Cardguide |
Molded
plastic with snap-in ESD contacts for both plug-in module and injector/ejector
handle alignment pin. |
| Slot Configuration
|
Sub-rack
dimensional format accepts module with injector/ejector handles, as specified
in IEEE 1101.10, section 8. |
| Cooling
fan tray |
Half Pipe:
Side-to-side air flow
Full Pipe:
Side-to-side air flow
Xtreme:
Front-to-back air flow
|
| Slot configurations |
Front:
Accepts 6U x 6.3 in. (160 mm) modules
Rear
transition: Accepts 6U x 3.1 in. (80 mm) modules
|
| Dimensions |
2U, 4U, or
6U H x 19 in. W x 11.75 in. D |
| Power
Supplies |
3U-high power
supplies, AC and DC versions, can be used in any of the ForeFront Access
chassis.
High current
+5 VDC, +3.3VDC with active current sharing maintains load balance within
5% between supplies. Hot-swappable with 1+1 and N+1 redundancy.
Status indicators
for power power output and fail.
Over-temperature
protection.
DC:
Input power—36 to 72 VDC
AC:
Input power—100 to 250 VAC, 47–63 Hz
|
| Certifications |
UL1950, EN60950,
FCC Part 15 Class A, EN55022 |
| Model # |
Description |
| 6486/R48 |
ForeFront 4U Chassis; Redundant DC Power; Alarm Card; |
| 6486/RUI |
ForeFront 4U Chassis; Redundant UI Power; Alarm Card; |
| 6486-XL/R48 |
ForeFront 4U Chassis; Redundant DC Power; No Alarm Card |
| 6486-XL/RUI |
ForeFront 4U Chassis; Redundant UI Power; No Alarm Card |
|
