Model 6686 CompactPCI 9U System

Patton’s ForeFront 6686 CompactPCI 9U System offers enhanced flexibility, expandability, and multi-service integration. With ForeFront Access Infrastructure Solutions there are no boundaries…TDM, Packet, DSL, or Dial-Up… Bring your network challenge to the ForeFront.

View All

Features

Overview

Specs

Ordering

Services



Features
--Image: Made in USA --
  • TDM, Packet, DSL, and RAS—Put it all together and enjoy true multi-service networking. Mix and match system cards and deliver DSL, RAS, TDM, and Packet/IP services.
  • CompactPCI Open System—Flexible, rugged, and standard ensures it’s a platform for now and the future.
  • 2U, 4U, 9U Platforms—Scale your service with a best-fit solution. Get 4, 8, or 16 slots for any system card and scale your deployment.
  • High Availability Hot-Swap—All components are field replaceable & hotswappable, so you can perform maintenance without powering down the system.
  • AC or DC Power Options—Universal AC or Telco DC power modules offer high power with full 1+1 or N+1 redundancy. Mixed AC/DC options also available.
  • Alarm Management—Integrated management module monitors fan tachometers, voltage, and temperature, and provides relay output.
Overview

Know no boundaries. Patton’s ForeFront™ Model 6686 delivers a carrier-class access platform with next-generation network delivery of narrowband, broadband, and multimedia services. Using industry-standard CompactPCI open-systems architecture, the Model 6686 allows deployment of Patton’s TDM, packet, dedicated, and dial-up system cards as well as third-party cPCI resources…all within the same chassis!

The ForeFront System offers a robust, reliable solution complete with power distribution, thermal management, and high-speed backplanes. The shelf fits into a standard 19-in. rack. Each shelf has integrated cooling and flexible power options, and boasts 1+1 or N+1 redundancy with AC or DC combinations. The high speed backplane supports a wide variety of multimedia—from TDM nx64 to packet, IP, and cell traffic. Field serviceable hot-swappable components provide high availability while the advanced design avoids single points of failure.

Select any combination of system, peripheral, media, trunking, and matrix cards for a total access solution. For network services, choose from a wide variety of system cards—from DSL to RAS; Packet/DSLAM to DACS. For complete flexibility, system cards can be mixed in any combination.

ForeFront™ Access Infrastructure Solutions (AIS) support users with solutions that will grow as technology grows.

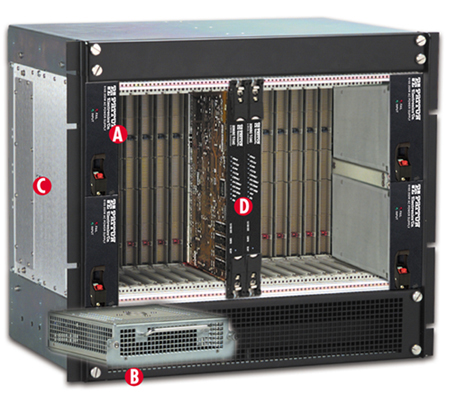

ForeFront 6686

ForeFront Xtreme™
9U (6+2+1) high, 17-slot cPCI-based access node
1+1 or N+1 AC or DC power supplies with full redundancy
Integrated thermal management with field replaceable fan trays
ForeFront Access Bus provides TDM, Packet, Ethernet/IP, Cell, Management, and Power Connectivity
All ForeFront platforms are cPCI open systems architecture and interchangeably receives Patton and other industry standard system elements





Specifications

Mechanical IEEE 1101.10 compliant. Meets UL, CSA, FCC, NEBS G4 1089 Core & GR63 Core, and CE requirements.
Module keying 4HP module spacing, cardguide provides for keying and alignment pin in accordance with IEEE 1101.10, section 6
Backplane Sub-rack dimensional format accepts module with injector/ejector handles, as specified in IEEE 1101.10, section 8.
Materials

Outer Shell (Half Pipe, Full Pipe): Galvanized Steel (0.05”)

Outer Shell (Xtreme): AL ALY 5052 series

Module/backplane rails: AL extrusion

Card guides: Molded thermoplastic

Rear power interface panels: AL ALY

Cardguide Molded plastic with snap-in ESD contacts for both plug-in module and injector/ejector handle alignment pin.
Slot Configuration Sub-rack dimensional format accepts module with injector/ejector handles, as specified in IEEE 1101.10, section 8.
Cooling fan tray

Half Pipe: Side-to-side air flow

Full Pipe: Side-to-side air flow

Xtreme: Front-to-back air flow

Slot configurations

Front: Accepts 6U x 6.3 in. (160 mm) modules

Rear transition: Accepts 6U x 3.1 in. (80 mm) modules

Dimensions 2U, 4U, or 6U H x 19 in. W x 11.75 in. D
Power Supplies

3U-high power supplies, AC and DC versions, can be used in any of the ForeFront Access chassis.

High current +5 VDC, +3.3VDC with active current sharing maintains load balance within 5% between supplies. Hot-swappable with 1+1 and N+1 redundancy.

Status indicators for power power output and fail.

Over-temperature protection.

DC: Input power—36 to 72 VDC

AC: Input power—100 to 250 VAC, 47–63 Hz

Certifications UL1950, EN60950, FCC Part 15 Class A, EN55022


# Model # Description Availability
1 6670-AF-12 6U AIR FILTER, 12 Pack for ForeFront 6676 Chassis Special Order
2 6670-FT 6U FAN TRAY for ForeFront 6676 Chassis Special Order
3 6676/R48 6U CPCI, FOREFRONT w/ ALARM CARD, 48V PWR SUPPLY, General Availability


Item Number Item Description Price
SVC-P-7x24-L Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription over 10,000 units deployed. Contact us for availability and pricing.
SVC-P-7x24-M Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription 1,000 to 10,000 units deployed. Contact us for availability and pricing.
SVC-P-7x24-S Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription up to 1,000 units deployed. Contact us for availability and pricing.
SVC-P-SH-L Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription over 10,000 units deployed. Contact us for availability and pricing.
SVC-P-SH-M Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription 1,000 to 10,000 units deployed. Contact us for availability and pricing.
SVC-P-SH-S Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription up to 1,000 units deployed. Contact us for availability and pricing.
SVC-ENHWAR1 1 Year Enhanced Warranty Contact us for availability and pricing.
SVC-ENHWAR2 2 Year Enhanced Warranty Contact us for availability and pricing.
SVC-ENHWAR3 3 Year Enhanced Warranty Contact us for availability and pricing.
SVC-ENHWAR4 4 Year Enhanced Warranty Contact us for availability and pricing.
SVC-ENHWAR5 5 Year Enhanced Warranty Contact us for availability and pricing.
SVC-EXTWAR2 2 Year Extended Warranty Contact us for availability and pricing.
SVC-EXTWAR3 3 Year Extended Warranty Contact us for availability and pricing.
SVC-EXTWAR4 4 Year Extended Warranty Contact us for availability and pricing.
SVC-EXTWAR5 5 Year Extended Warranty Contact us for availability and pricing.
SVC-TECH-HOUR Network technician hour rate for Pre-config services, after hours support etc? Contact us for availability and pricing.
