Model 6081RC IP Router/VLAN Aggregator

Patton’s Model 6081RC EdgeRoute is a feature-rich IP Router/VLAN Aggregator for the ForeFront AIS that addresses the access concentration needs of service and enterprise organizations.

View All

Features

Overview

Specs

Ordering

Services



Features
--Image: Made in USA --
  • Up to three 10/100 Ethernet Ports—Easily bridge the gap between the LAN and Core Network with differentiated service offerings
  • Extensive IP Routing Support—Support for RIP, OSPF, and BGP4 allows easy interoperability and integration.
  • IP User Management—DNS caching, NAT, NAPT, IGMP, DiffServ, & RADIUS make it easy to create and manage any service. Add L2TP LAC or GRE for per-user tunnels.
  • VLANs—Support the transparent passing of VLAN traffic or add VLAN tags to facilitate core switching
  • Firewall&emdash;Built in IP address and IP port filtering, makes firewall services a snap.
  • SNMP/HTTP Management—SNMP/HTTP manageable from anywhere in the world including attached CPE units
  • NAT/PAT—Easily perform IP address and IP port translation on any interface


Overview

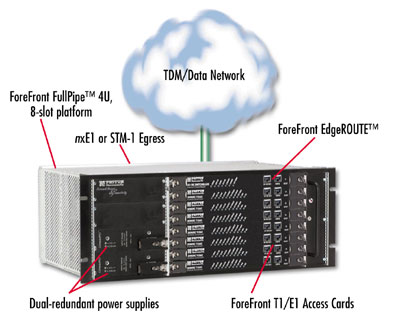

The Model 6081RC is an access router and VLAN aggregator for the ForeFront AIS that is optimized to process traffic from multiple channelized T1/E1 and DSL interfaces. The EdgeRoute converts any ForeFront AIS chassis into a powerful IpDSLAM and modular access router. The 6081RC is available with up to three 10/100BaseT Ethernet ports and takes advantage of any port attached to a ForeFront System for servicing the most bandwidth hungry access applications.

Leverage the supported RADIUS Accounting and Authentication features of the 6081RC to provide dynamic service authentication to any user. With RADIUS, existing subscriber profiles do not need to change and integration with existing billing systems can be maintained when migrating the user from dial-up to dedicated DSL or TDM access.

Easily tailor and manage the level of service to the needs of the organization. Filter by IP address, IP port, or by physical port. Provide routed IP service using RIP, OSPF, or static routes. Use NAT/PAT for masquerading applications or to perform simple translation. Support simple bridged traffic, transparently passing VLAN tagged frames or add VLAN tags to enhance the switching of traffic by the core network.

With SSH, secure management connections into the unit are a snap. The 6081RC supports a very easy to use WWW/SNMP interface permitting control and configuration from any PC or workstation with a web browser. Compatibility with SNMP management platforms permit easy integration into almost any established networking environment.

Operating Features
The Model 6081RC is a feature rich service provisioning platform with the ease of management required by service providers. Included with the purchase of every unit is free initial configuration support, one year of free technical services, one year warranty, and free software upgrades. Features include:

  • Value added Routing Features
    • Port wholesaling capabilities supported via Layer 2
    • VLAN tagging (802.1q)
    • Extensive IP port and address filtering facilitates basic firewall configurations.
    • RADIUS accounting, authentication, and authorization (AAA) make the migration of subscribers to high speed services a snap.
  • Complete Network Management
    • RS-232 Console port
    • Integrated SNMP/HTTP (Browser)
    • Command Line Interface
    • Syslog Client
    • Telnet
    • SSH
    • SNTP for reliable time stamping





Specifications
Routing RIPv1 (RFC 1058), RIPv2 (RFC 2453), *OSPFv2 (RFC 2328/2740), *BPG4 (RFC1771/2858),VLSM (RFC 1878)
RADIUS client Authentication (RFC 2865 & 2868), Accounting (RFC 2866 & 2867), PAP (RFC 1332), CHAP (RFC 1334 & 1994)
IP Services (RFC1701/2784), ARP (RFC0826), Proxy-ARP (RFC1027), ICMP (RFC0950, RFC1256), NTPv3 (RFC1305), IGMP & IGMPv2 (RFC2236), NAT (RFC 1631/2663/2766/2993), *GRE, *L2TP LAC, *IPSec, *AES/DES/3DES
Ethernet Ports Dual 10/100BaseT (RJ-45 connector); auto-negotiating; half or full duplex operation
Front Panel Indicators LEDs for power, CPU, system, Ethernet, External clock, and test mode
Ethernet Services 802.1q VLAN tagging; transparent passing of VLAN tagged Ethernet frames
HDLC Services PPP (RFC 1661, 2153), LCP (RFC 1570, 2484), BCP (RFC 1638), IPCP (RFC 1332)
Management Service HTTP, SNMP, Telnet Ethernet, RS-232 Console Port, SYSLOG Client, Software upgrade via FTP, SSH, SNTP
Alarm Reporting Configurable alarms; Remote SNMP Traps; Front Panel LEDs Safety: UL/CSA per UL1950 (METS) Canadian cMET and CS-03.
Compliance EMC Directive 89/336/EEC, Low-Voltage Directive 73/23/EEC (EN60950), FCC Part 15, CE Mark, CTR12, CTR13, FCC Part 68
Environment Operating temperature: 0-40°C (32-104°F) Humidity: 5-90% non-condensing
Dimensions

Front blade: 0.75 H x 10.5 W x 6.3 D in. (1.9 H x 26.7 W x 16.0 D cm)
Rear blade: 0.75 H x 10.5 W x 3.15 D in. (1.9 H x 26.7 W x 8.0 D cm)

*NOTE: Advanced features dependent on TrinityAE Software Versions. Call for details.


# Model # Description Availability
1 6081RC/800H ForeFront IP ROUTER Module, 800MHZ CPU, Single 10/100 and dual 10/100 2.16 connections Contact us for Availability
2 6081RC/800H/FE2P IP Router, H110, 800MHz,w/PMC ENET Contact us for Availability
3 6081RC/800H/FE2T IP Router, H110, 800MHz, W/ Dual rear ENET Contact us for Availability


Item Number Item Description Price
SVC-P-7x24-L Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription over 10,000 units deployed. Contact us for availability and pricing.
SVC-P-7x24-M Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription 1,000 to 10,000 units deployed. Contact us for availability and pricing.
SVC-P-7x24-S Premium Support with guaranteed response and remedy times 24x7. See your sales rep for details. Annual Subscription up to 1,000 units deployed. Contact us for availability and pricing.
SVC-P-SH-L Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription over 10,000 units deployed. Contact us for availability and pricing.
SVC-P-SH-M Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription 1,000 to 10,000 units deployed. Contact us for availability and pricing.
SVC-P-SH-S Premium Support with guaranteed response and remedy times for regional business hours support Mo-Fr. See your sales rep for details. Annual Subscription up to 1,000 units deployed. Contact us for availability and pricing.
SVC-ENHWAR1 1 Year Enhanced Warranty Contact us for availability and pricing.
SVC-ENHWAR2 2 Year Enhanced Warranty Contact us for availability and pricing.
SVC-ENHWAR3 3 Year Enhanced Warranty Contact us for availability and pricing.
SVC-ENHWAR4 4 Year Enhanced Warranty Contact us for availability and pricing.
SVC-ENHWAR5 5 Year Enhanced Warranty Contact us for availability and pricing.
SVC-EXTWAR2 2 Year Extended Warranty Contact us for availability and pricing.
SVC-EXTWAR3 3 Year Extended Warranty Contact us for availability and pricing.
SVC-EXTWAR4 4 Year Extended Warranty Contact us for availability and pricing.
SVC-EXTWAR5 5 Year Extended Warranty Contact us for availability and pricing.
SVC-TECH-HOUR Network technician hour rate for Pre-config services, after hours support etc? Contact us for availability and pricing.
