Model 460MC G.703 Balun, 2 Mbps, With Built-in Cables (75-Ohm to 120-Ohm)

Now you can connect our balun directly to 75-ohm connectors without using special cables. These baluns have 6-in. (15.2 cm) cables for maximum flexibility.

View All

Features

Overview

Specs

Ordering

Services



Features
--Image: Made in USA --
  • Solves G.703 termination mis-matches
  • Includes short cables that connect directly to equipment
  • Enables G.703 equipment to use RJ-11 wall plates and operate over standard building wiring
  • Low insertion loss, fully meets ITU-T (CTR12) G.703 standards
  • Very small size
  • Customized versions available upon request
  • Enclosed in flame retardant housings.
  • Baluns are 100% tested for reliability and durability
  • Made in the USA — This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Patton's American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.
Overview

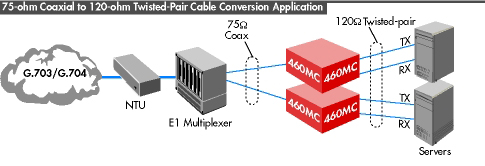

The Model 460MC miniature G.703 balun converts 75-ohm coaxial terminations to 120-ohm terminations, and vice-versa (see diagram below). It can also connect E1 hardware together over inter-building or campus twisted-pair wiring.

Model

The Model 460MC receives 75-ohm signals and converts to 120-ohm for transmission over a network or for reception by CPE equipment.

Signals output by the Model 460MC are scaled to match the pulse shape requirements specified in the ITU-T CTR12 G.703 standard.



Ordering
# Model # Description Availability
1 460MC G.703 BALUN 75/120 OHM W/CABLE 6" General Availability
2 460MC-8 G.703 BALUN 75/120, W/CABLE 8" Special Order
