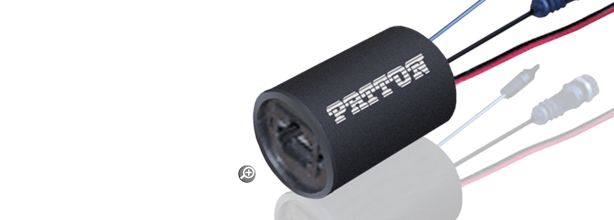

Model 320 Series CCTV Passive Pass-Thru Baluns

Why use expensive and difficult-to-manage coax cabling when you can use inexpensive twisted-pair?

Contact Us
Sales: sales@patton.com
Direct: +1 301 975 1000
Support: support@patton.com
Direct: +1 301 975 1007
Have Us Contact You
or
Login
 Connect with us
Twitter Linkedin Facebook Youtube

View All

Features

Overview

Applications

Specs

Ordering

Services



Features
  • Communicate over existing telephone lines or other twisted pair media
  • Connect twisted pair using RJ-45 or terminal block
  • Distances up to 2,230 feet (680 meters) over Cat5 cable
Overview
Patton’s CCTV Pass-Thru Balun allows video, 2-wire pan/tilt/zoom (PTZ) control and remote power to be transmitted via one 4-pair Cat5 cable eliminating the need to install multiple cables in the CCTV security and surveillance environment. The pass-thru balun may be used in pairs or in conjunction with standard twisted pair cross-connect devices and other Patton CCTV baluns.

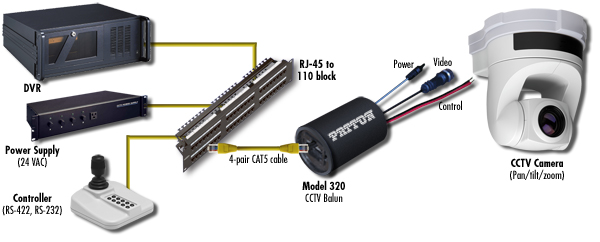

Applications
Model


Ordering
# Model # Description Availability
1 320A CCTV BALUN RJ45 POWER THRU TYPE MALE NO DC POWER PLUG OR JACK; WIRING 8+/7- (VIDEO), 1,3,5+/2,4,6- (POWER) Contact us for Availability
2 320J CCTV BALUN RJ45 POWERTHRU MALE W/DC POWER JACK; WIRING 8+/7- (VIDEO); 1,3,5/2,46- (POWER) Contact us for Availability
3 320P CCTV BALUN RJ45 POWER THRU TYPE MALE W/DC POWER PLUG; WIRING 8+/7- (VIDEO), 1,3,5+/2,4,6- (POWER) Contact us for Availability
4 321J CCTV BALUN RJ45 POWERTHRU MALE Contact us for Availability
5 321P CCTV BALUN RJ45 POWERTHRU MALE W/DC POWE Contact us for Availability
6 322 CCTV BALUN RJ45 POWERTHRU MALE W/O DC POWER JACK; WIRING 8+/7- (VIDEO), 4,6+/3,5- (DATA,SPEED DOME) Contact us for Availability
