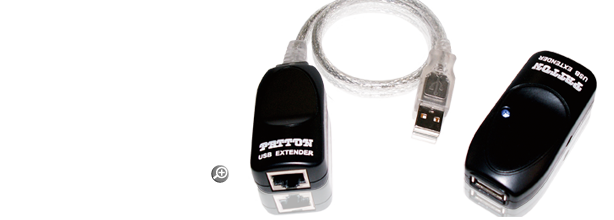

Model 110 USB 1.1 Extender Kit

Extends the distance of a USB device to a host computer up to 200 feet (60 m) over Cat5e cable.

Contact Us
Sales: sales@patton.com
Direct: +1 301 975 1000
Support: support@patton.com
Direct: +1 301 975 1007
Have Us Contact You
or
Login
 Connect with us
Twitter Linkedin Facebook Youtube

View All

Features

Overview

Applications

Specs

Ordering

Services



Features
  • Extends USB Using Cat 5—Extends USB devices up to 200 feet (60 meters) over inexpensive and common Cat 5 cable
  • USB 1.1 Compliant—Fully compliant with USB 1.1 specifications.
  • Full or Low Speed USB—Provides support for any full speed (12 Mbps) or low speed (1.5 Mbps) USB devices.
  • Plug and Play—No software, driver installation, or configuration switches!
  • Quick Glance Status—LED indicator shows status of the link between the USB Extenders.
Overview
Patton's Model 110 overcomes USB length limitations of 16 feet so that you have the flexibility to locate your USB printer, camera, web cam or any other USB device where you want them. The Model 110 extends the distance of a USB device to a host computer up to 200 feet (60 meters) over Cat5e. The 110 is plug-and-play with absolutely no special software or drivers to install.

System Requirements:
  • Windows 98SE / ME / 2000 / XP
  • Mac OS 10.X / 9.X
  • One available USB port

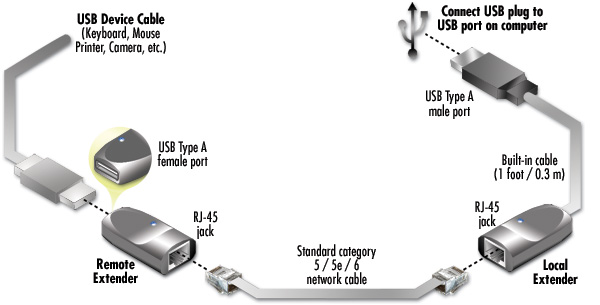

Applications
Model

Distances

Cat 5 (non-powered) 98 ft (30 m)
Cat 5 (powered)* 165 ft (50 m)
Cat 5e/6 (non-powered) 200 ft (60 m)
Cat 5e/6 (powered)* 263 ft (80 m)
* Requires optional power supply 08055DUI-110K


Ordering
# Model # Description Availability
1 08055DUI-110K-EU MODEL 110-KIT AC/DC,UNIVERSAL POWER SUPPLY 220VAC; EUROPEAN
2 08055DUI-110K-US MODEL 110-KIT AC/DC,UNIVERSAL POWER SUPPLY 120VAC; US
3 110-KIT 12 Mbps USB 1.1 Extender (Remote and Local) Kit Contact us for Availability
