Features
- Ethernet & PoE Extension—Doubles 10/100Base-TX Ethernet and PoE to 200 meters (656 feet). Multiple units can be used in series for even longer extensions.
- Operates over CAT5—Reduces the cost and hassles of adding switches, hubs, and wireless access points.
- Plug and Play—No configuration or cable hassles during installation with auto-sensing 10/100, full or half duplex, and automatic MDI-X.
- Transparent LAN Operation—Transparent operation ensures the highest rate possible for each extension distance.
- No External Power Required—Power over Ethernet (PoE) capability enables both extenders and peripheral devices to be powered over standard twisted-pair Ethernet cable.
Overview

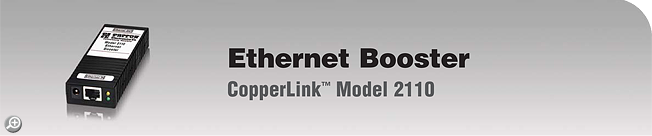

The CopperLink™ Model 2110 doubles Ethernet distance limitations of 328 feet (100 meters). Multiple Model 2110 Ethernet Boosters can be placed in-line to further extend both Ethernet and PoE up to 1,640 ft (500 m), eliminating the need for additional switches, hubs, wireless access points, and expensive fiber installations. The Model 2110 is completely transparent to protocol making them true plug-and-play devices, completely interoperable with any network enabled device. The Model 2110 will not cause latency or degradation on your network connections, ensuring the maximum 100-Mbps full-duplex line rate. The Model 2110P and 2110PSE not only transparently pass on Ethernet data, but also feed on and forward PoE power to devices such as wireless access points, IP cameras, and VoIP phones.
|
802.3af Power and Distance Chart
|
|
|
Power Delivered
|
13W
|
6.5W
|
3.84W
|
0W
|
|
Class of PoE Device
|
Class 3/0
|
Class 2
|
Class 1
|
No PoE Load
|
|
Model
|
PoE Source
|
Maximum Distance
|
|
2110/P
|
PoE switch
|
N/A
|
300 m
984 ft
|
400 m
1,310 ft
|
500 m
1,640 ft
|
|
2110/PSE
+ 2110/P
|
PoE Injector
2110/PSE/EUI
|
400 m
1,312 ft
|
500 m
1,640 ft
|
500 m
1,640 ft
|
800 m
2,625 ft
|
|
2110/EUI
|
No PoE
|
N/A
|
N/A
|
N/A
|
N/A
|
|
CopperLink™ Copper Ethernet Extenders
|
|
|
|
|
Distance at Max. Speed
|
|
|
|
|
N/A
|
2,625 ft/0.8 km (328ft/100m per 2110)
|
|
|
|
|
|
500 ft/0.15 km
|
|
|
|
|
|
4,600 ft/1.4 km
|
|
|
4
|
2
|
|
4,600 ft/1.4 km
|
|
|
2
|
1
|
|
2,953 ft/0.9 km
|
|
|
|
|
|
4,593 ft/1.4 km
|
|
|
2
|
|
10
|
4,265 ft/1.3 km
|
|
|
1
|
|
4.6
|
10,827 ft/3.3 km
|
|
|
1
|
|
2.3
|
16,404 ft/5.0 km
|
|
Applications
The CopperLInk Ethernet Booster is ideal for delivering Ethernet to remote network enabled devices located outside Ethernet’s limited range of 328 feet (100 meters). Several configurations are possible based on individual requirements.
Model 2110/P: PoE Pass Through & Ethernet Extension
Model 2110/PSE: PoE Injection & Ethernet Extension
Model 2110/EUI: Ethernet Extension
Specifications
| Ethernet Connection |
Two Ethernet ports 10/100Base-TX; 802.3af • Auto-Negotiating 10/100 • Supports Flow Control (IEEE803.X) for full duplex operation • Supports back pressure for half-duplex operation • Store and forward • Auto MDI-X • 802.3af pass through |
| LED Status Indicators |
PoE/Power (Green): Glows solid when there is power to the unit • Ethernet (Green): Flashes when passing traffic |
| Power |
Rated Voltage: 12 VDC (/EUI) or 57 VDC (/PSE or /P) • Rated Current: 700 mA |
| Operating Temperature |
32-122°F (0-50°C)
|
| Operating Humidity |
Up to 90%, non-condensing |
| Dimensions |
3.88L x 1.75W x 0.75H in. (9.8Lx 4.4W x 1.9H cm) |
| Weight |
0.13 lbs (0.06 kg) |
Ordering Information
| Model # |
Description |
| 080511-07M |
2110/PSE REPLACEMENT POWER SUPPLY AC/DC,UNIV IN,48VOUT,625MA,DSKTOP,2.5MM |
| 2110/EUI |
CopperLink 10/100 Mbps Ethernet Booster; 100-240 VAC |
| |
| Accessories |
| 1001MP16 |
19" 16 SLOT MOUNTING PANEL |
|
| 2110/P |
CopperLink 10/100 Mbps Ethernet Booster; 802.3af pass through |
| |
| Accessories |
| 1001MP16 |
19" 16 SLOT MOUNTING PANEL |
|
| 2110/PSE/EUI-48 |
CopperLink 10/100 Mbps Ethernet Booster and 802.3af PoE Injector; 48VDC Source |
| |
| Accessories |
| 1001MP16 |
19" 16 SLOT MOUNTING PANEL |
|
|
