Model 465 G.703 Balun, 2 Mbps (1.6/5.6 Connectors)

These new G.703 baluns are used with 1.6/5.6 coaxial connectors and provide connection for TX and RX connections on a single twisted-pair wire.

Contact Us
Sales: sales@patton.com
Direct: +1 301 975 1000
Support: support@patton.com
Direct: +1 301 975 1007
Have Us Contact You
or
Login
 Connect with us
Twitter Linkedin Facebook Youtube

View All

Features

Overview

Specs

Ordering

Services



Features
--Image: Made in USA -- --Image: RACKABLE! Rack Mount Available --
  • Use 120-ohm twisted-pair wiring with unbalanced coaxial equipment.
  • Uses 1.6/5.6 coaxial connectors.
  • No more buying expensive and space-hungry hardware for patching and distributing G.703 connections.
  • Low-cost model supports rates of 2 Mbps (faster versions are available for rates up to 155 Mbps).
  • Low insertion loss, fully meets ITU-T (CTR12) G.703 standards.
  • Standard twisted-pair terminations.
  • Enclosed in flame retardant housings.
  • Baluns are 100% tested for reliability and durability.
  • Baluns come in a variety of connectors and packaging.
  • Customized versions available upon request.
  • Made in the USA — This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Patton's American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.
Overview

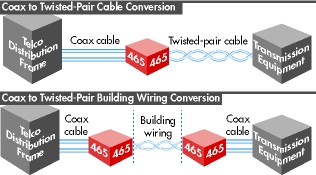

Baluns are miniature adapters for connecting mixed cable types or devices with mis-matched interfaces. They enable carrier and large-enterprise customers to standardize on twisted-pair wiring, even though some equipment may have unique E1 terminations (see diagrams below).

Model

The Model 465 has the 1.6/5.6 coax connectors used extensively in telephone exchange sites. The balun has two interfaces, so both the TX and RX coax signals can be carried over a single length of twisted-pair cabling (which is much less costly than any kind of coaxial cable).



Ordering
# Model # Description Availability
1 465F G.703 BALUN 75/120 OHM,DUAL-COAX FEMALE Special Order
2 465MC G.703 BALUN 75/120 OHM, WITH 1.6/5.6 6" CABLE Special Order
